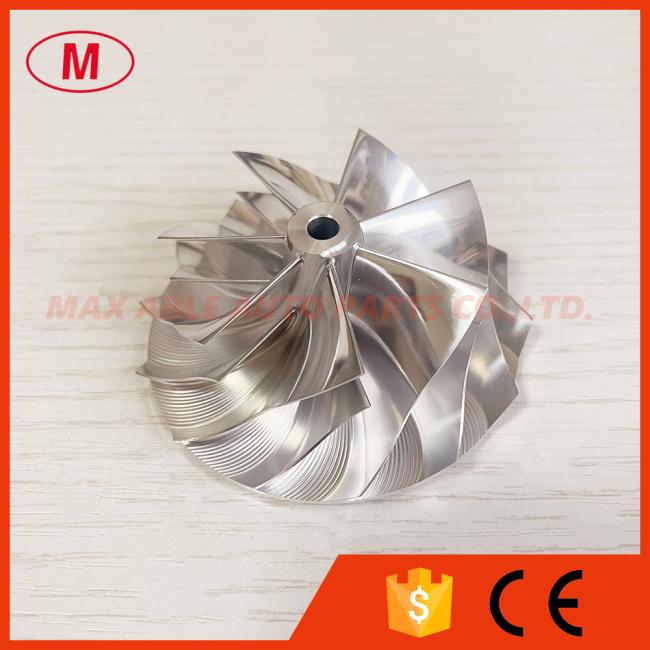

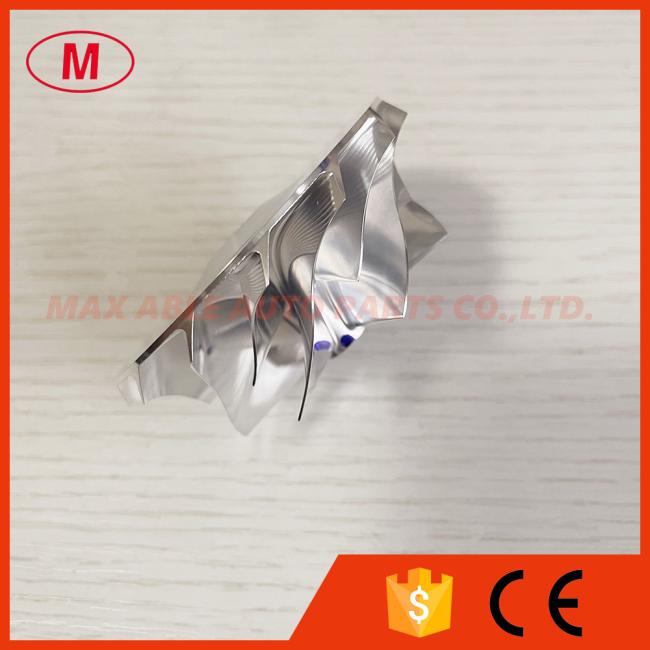

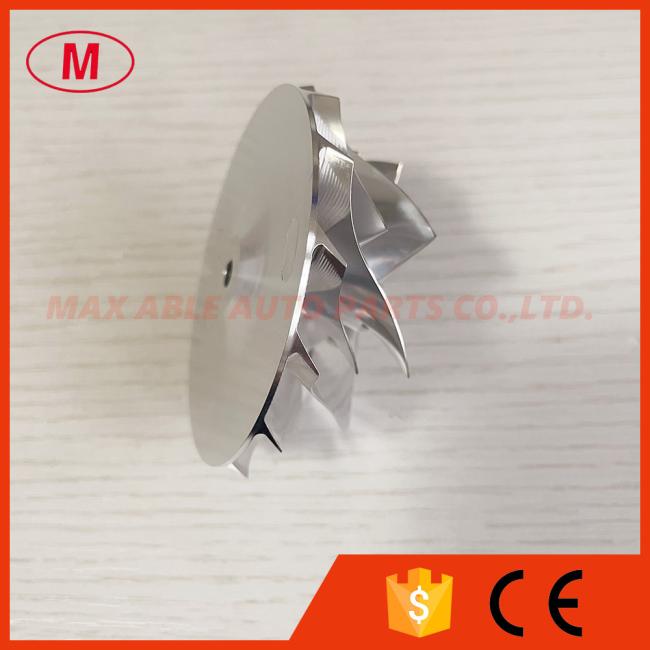

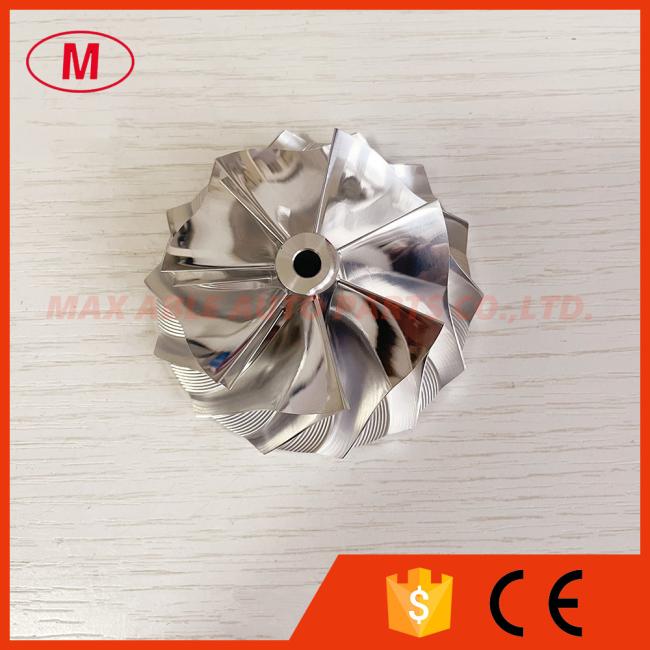

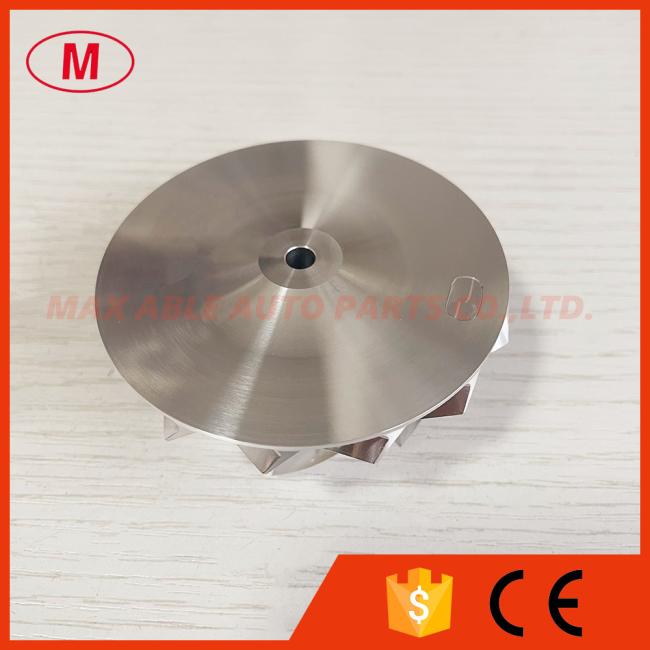

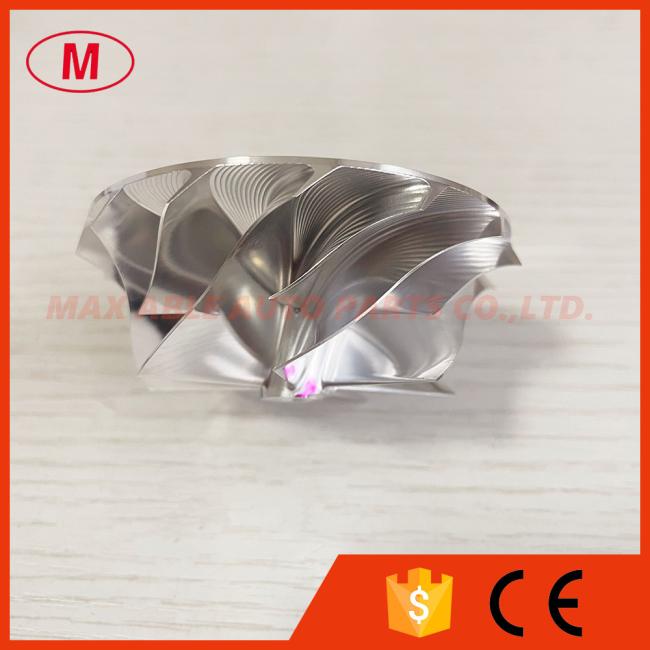

TD04H reverse 53.30/68.00mm 7+7 blades Turbo milling/aluminum 2618/billet compressor wheel
Price:
Negotiable
MOQ:
1PC
Delivery Time:
3-7 days
Product Description
1. MODEL:TD04H reverse
2.TD04H reverse 53.30/68.00mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.50mm
Inducer:53.30mm
exducer:68.00mm
Tapered tip exducer:71.02mm
Tip height:5.64mm
Superback:1.90mm
bore size :5.00mm
bore type:through
Overall height:28.70mm
Trailing Angle:45 degree
Cutback:0.0mm
Blade height:25.08mm
SP height Angle:-8.00
Splitter height:16.00mm
7+7 blades
reverse rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
Wechat/Whatsapp:+86-18018657719
