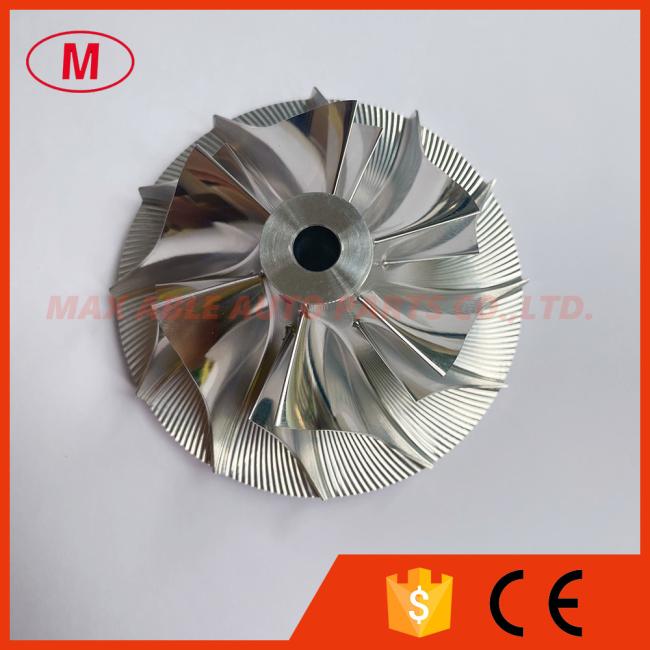

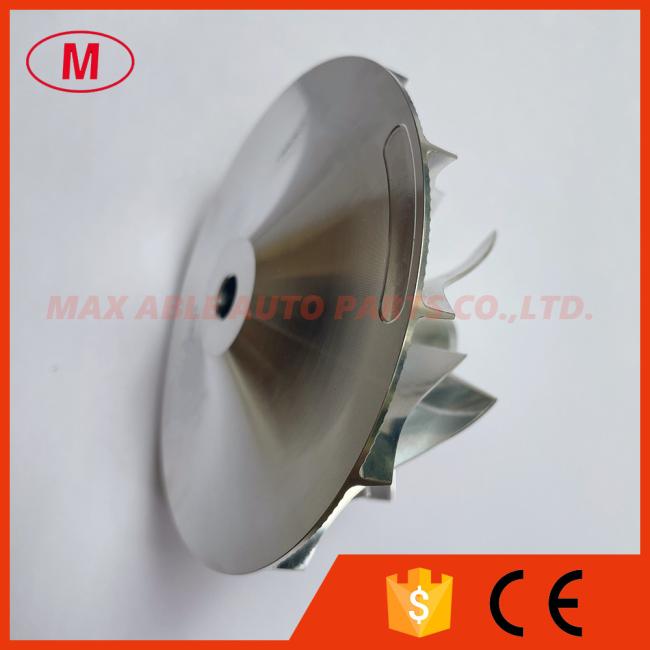

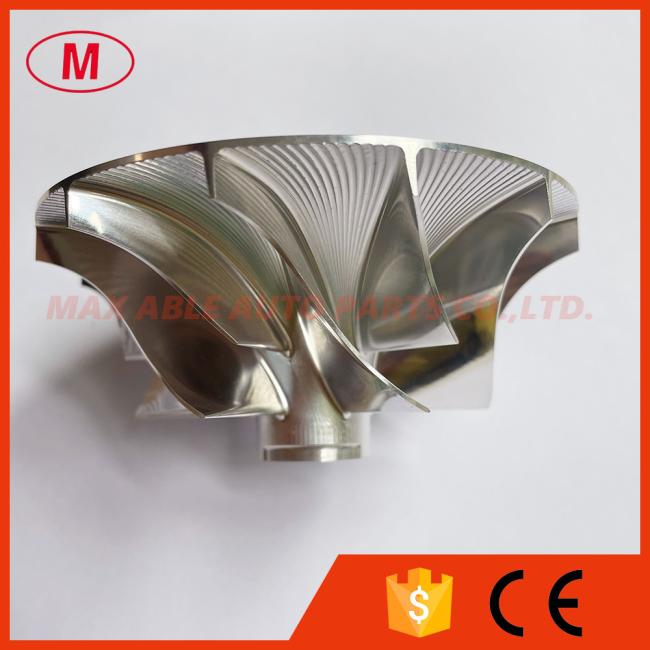

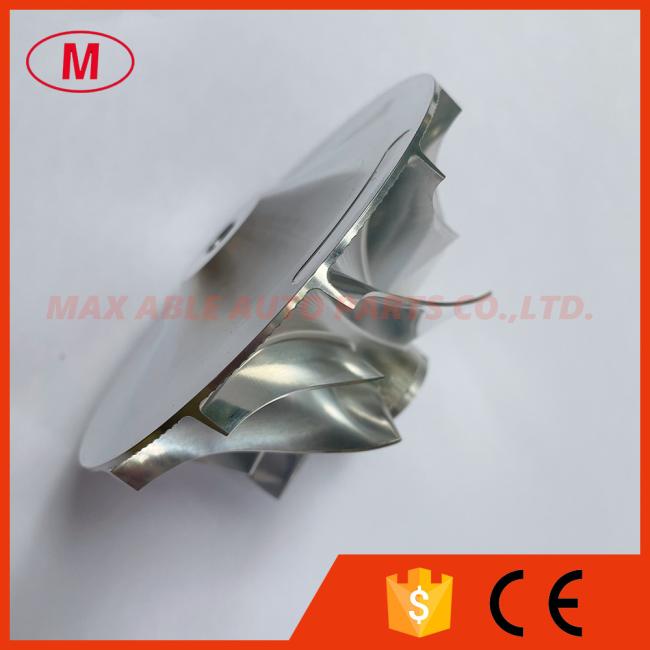

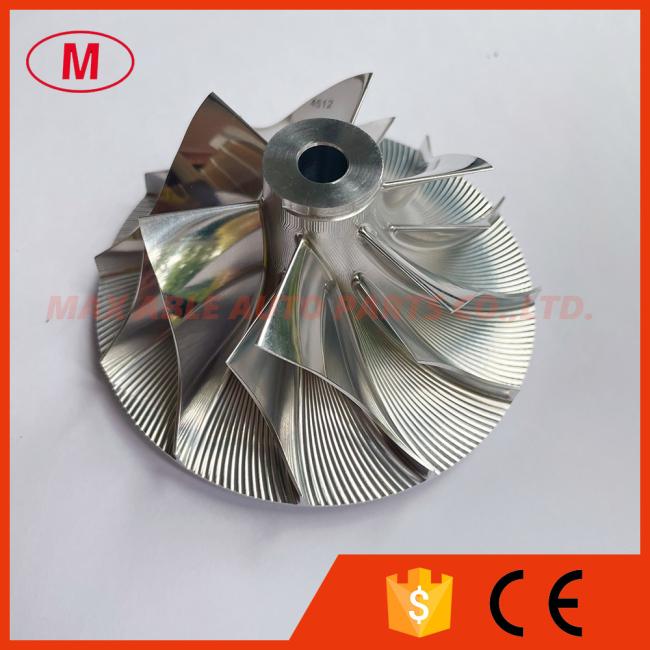

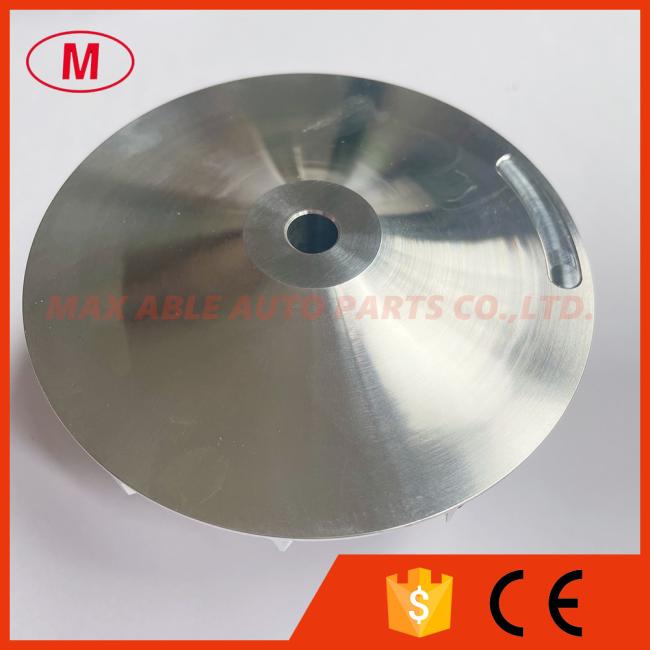

TD45 447439-0015 60.96/90.02mm 6+6 Blades Turbo Milling/aluminum 2618/billet Compressor Wheel for 466559-0006/ 479002-0001/2 CHRA:441398-0112/0117

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: NO
Product Description
1. MODEL:TD45 forward
2.TD45 447439-0015 60.96/90.02mm 6+6 Blades Turbo Milling/aluminum 2618/billet Compressor Wheel for
466559-0006/ 479002-0001/2 CHRA:441398-0112/0117
3.Size:
Nose diameter:19.36mm
Inducer:60.96mm
exducer:90.02mm
Tip height:6.86mm
Superback:6.21mm
bore size :7.93mm
bore type:through
Overall height:45.60mm
Cutback:0.0mm
Trailing Angle:85 degree
Blades height:31.98mm
Sp height angle:0.00
Splitter height:22.40mm
6+6 blades forward
It is for OE compressor housing
Tapered tip Angle:0 degree

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
