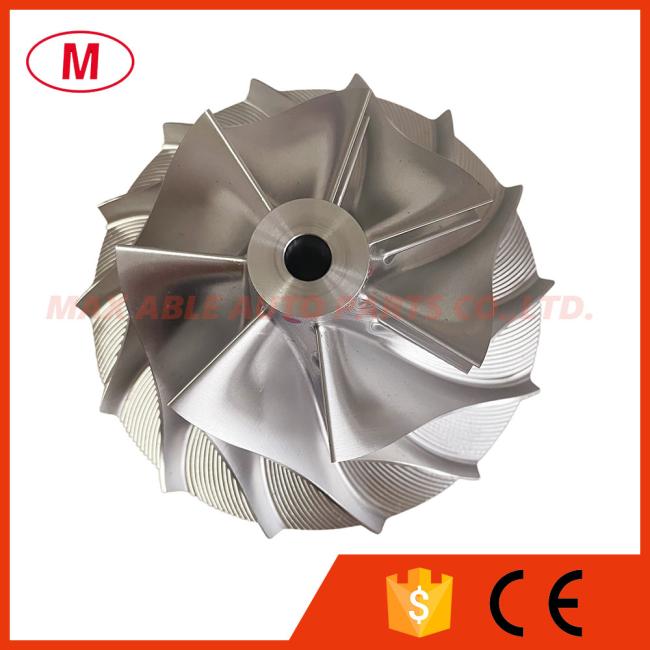

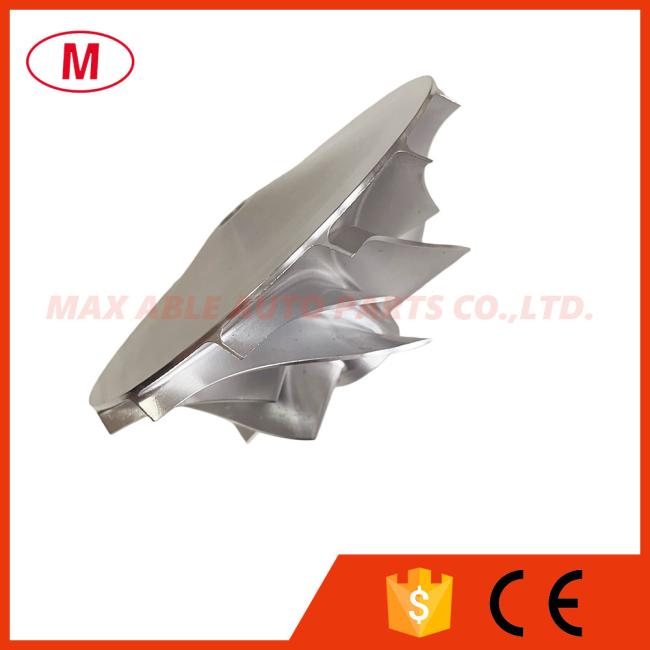

HX50 68.55/99.01mm 7+7 blades milling/aluminum 2618/billet compressor wheel

1. MODEL:HX50 forward

2.HX50 68.55/99.01mm 7+7 blades billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:20.69mm

inducer:68.55mm

Exduder:99.01mm

Tapered tip exducer:102.67mm

Tip height:6.63mm

Superback:6.27mm

Overall height:45.05mm

bore size :8.01mm

bore type:through

Trailing Angle:45 degree

Cutback:0.0mm

Blade height:34.00mm

Sp height angle:-5.40

Splitter height:22.20mm

7+7 blades

Forward rotation

Tapered tip angle:18 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
