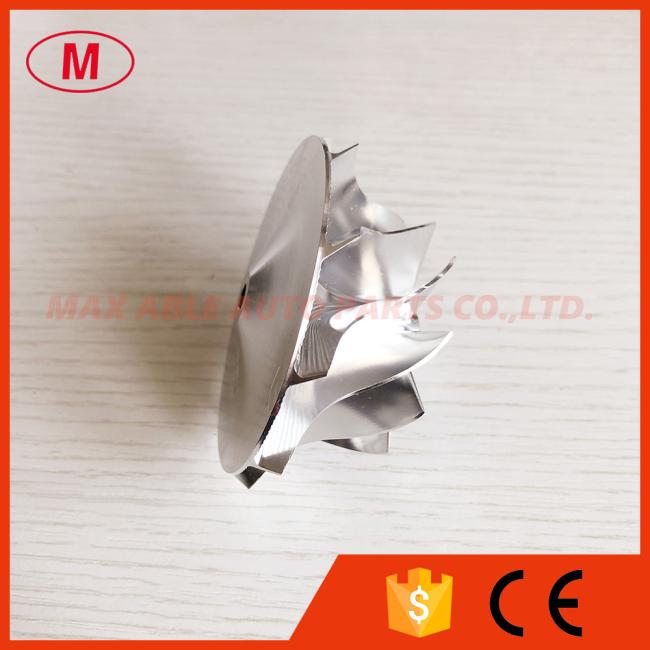

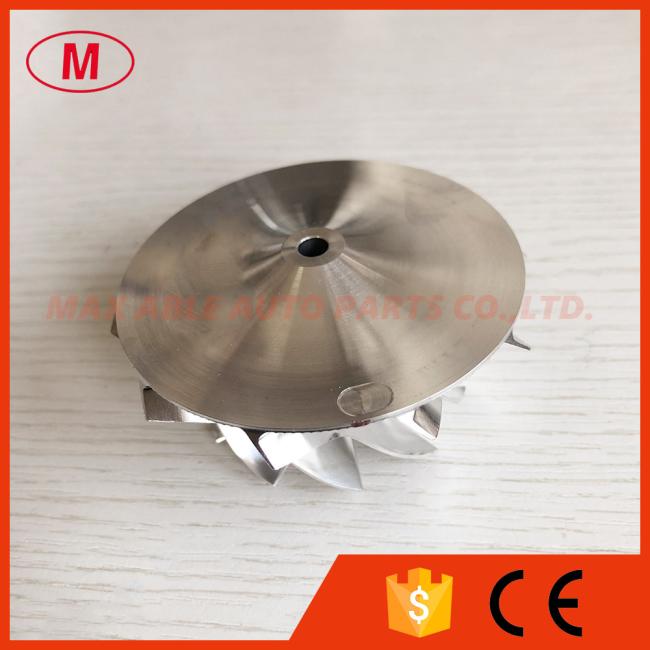

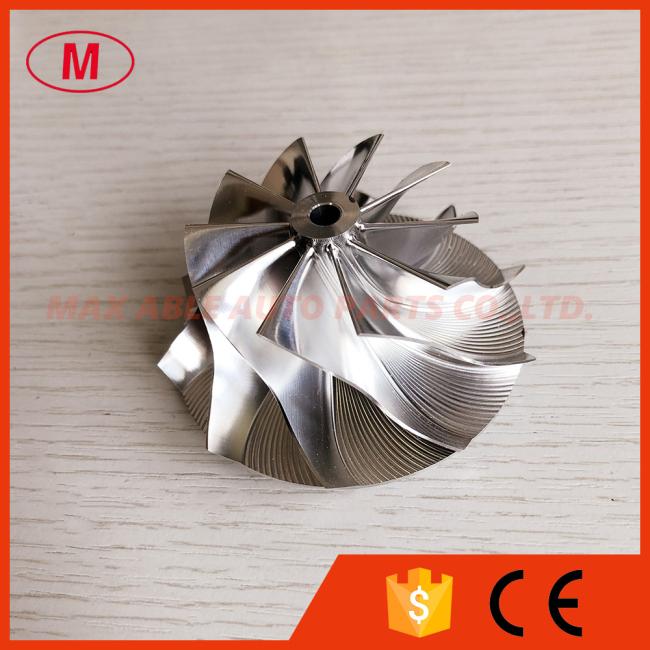

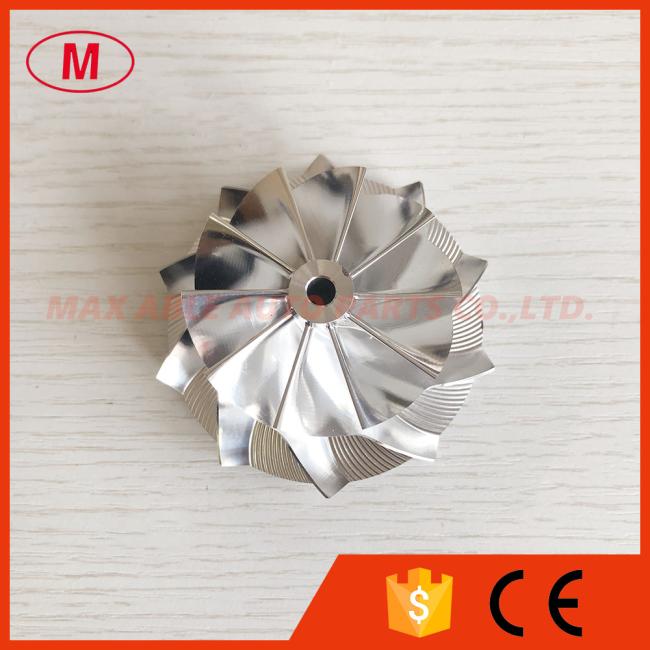

GT15-25 801918-0002 49.70/67.40mm 10+0 blades turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:GT15-25 forward

2.GT15-25 801918-0002 49.70/67.40mm 10+0 blades turbo billet/milling/aluminum 2618 compressor wheel Big turbo for AUDI A6, A7, Q5 (SQ5) 3.0 TDI 805713-0004 / 805714-0004 / 805716-0004

3.Size:

Nose diameter:11.61mm

inducer:49.70mm

Exduder:67.40mm

Tapered tip exducer:72.76mm

Tip height:5.64mm

Superback:4.70mm

Overall height:36.10mm

bore size :5.08mm

bore type:through

Trailing Angle:50 degree

Cutback:0.00mm

SP Height Angle:0.0

Splitter height:29.30mm

Blade height:0.00

​Tapered Tip Angle:30 degree

6+6 blades

Forward rotation

Fit for OE compressor housing

Application:

805713-0004

805714-0004

805716-0004

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
