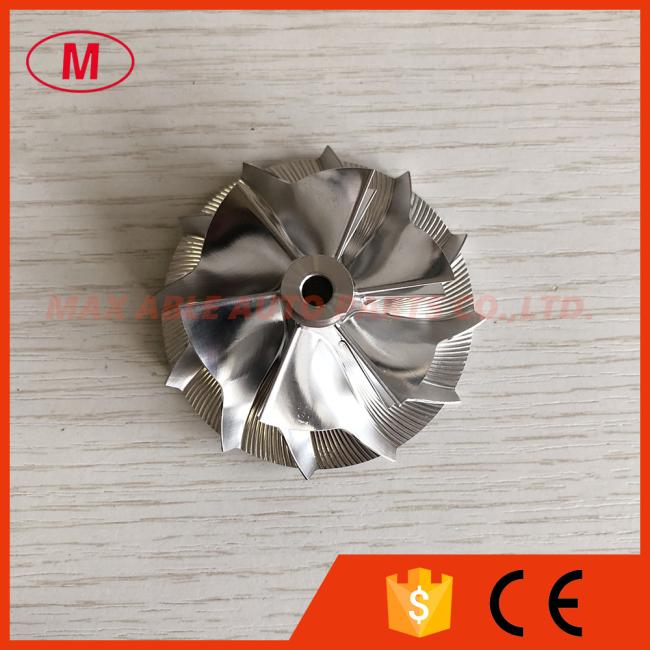

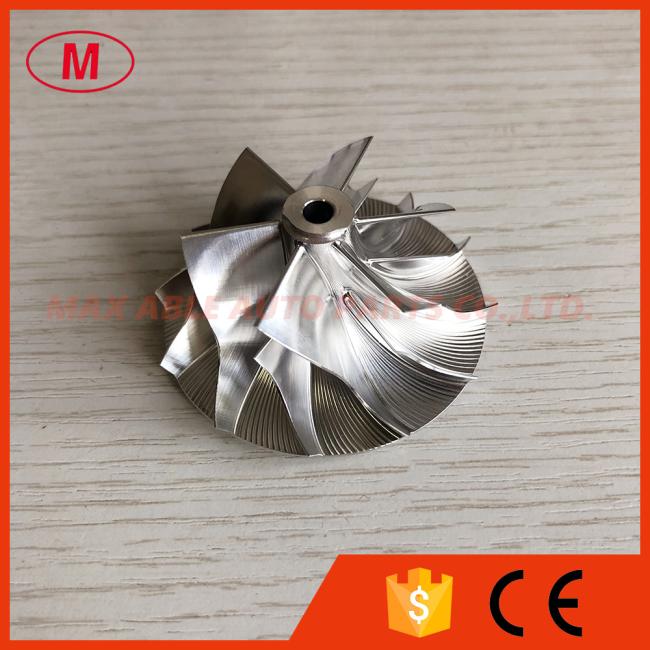

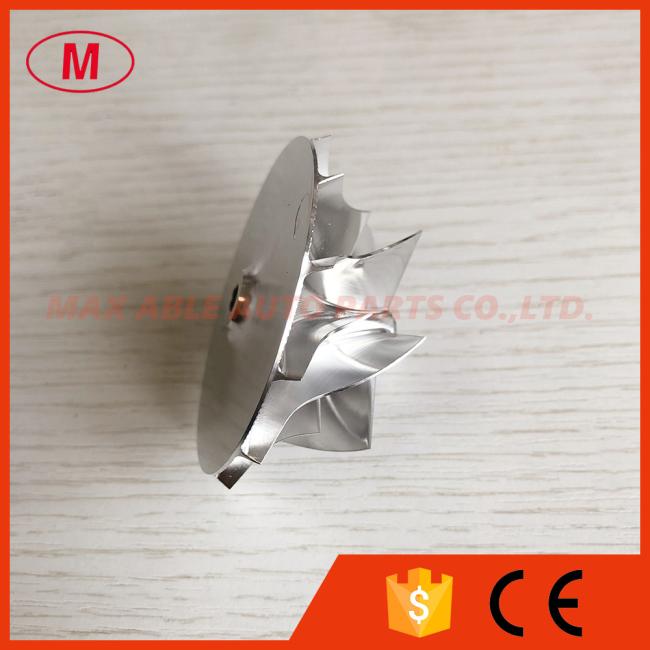

K04 5306-123-2035 41.65/56.8mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
Price:
Negotiable
MOQ:
1pc
Delivery Time:
3-7 days
Brand:
NO
Product Description
1.Model:k04 Forward
2.K04 5306-123-2035 41.65/56.8mm 6+6 blades high performance turbocharger milling/aluminum 2618 /billet compressor wheel
3.Size:
Nose diameter:10.87mm
Inducer:41.65mm
Exducer:56.08mm
Tapered tip exducer:59.25mm
Tip height:3.74mm
Superback:2.60mm
Overall height:27.70mm
Bore size:4.61mm
Trailing angle:60 degree
Bore Type:Through
Cutback:2.50
SP Height angle:-3.00
Blade height:23.30mm
Splitter height:13.80mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing.
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheel have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
