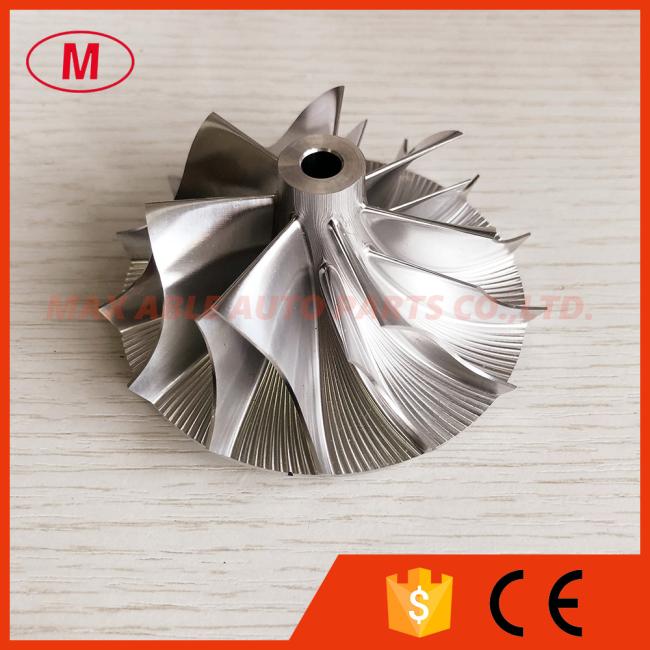

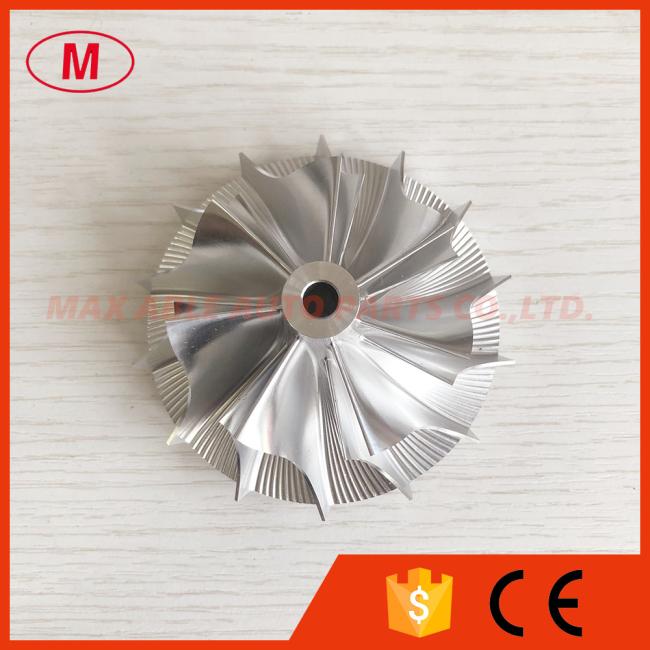

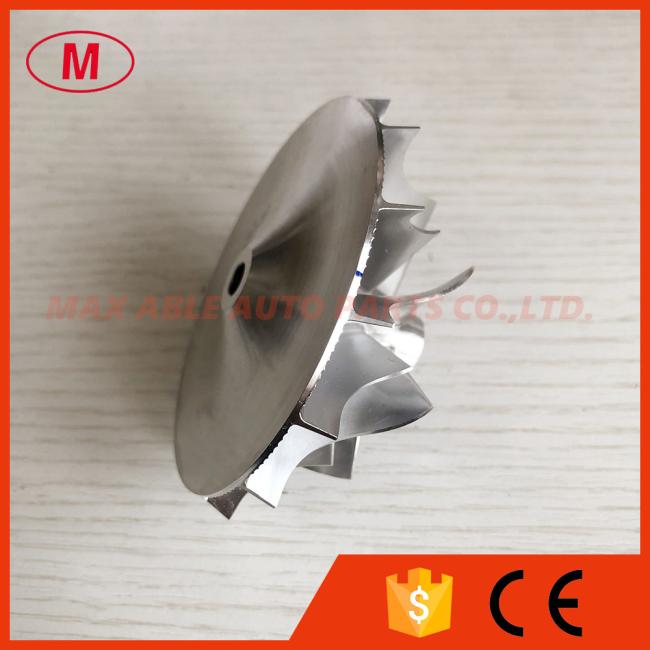

T04S 409535-0007 57.10/76.07mm 7+7blades High performance turbo aluminum 2618/milling/billet compressor wheel

1. MODEL:T04S forward

2.T04S 409535-0007 57.10/76.07mm 7+7blades High performance turbo aluminum 2618/milling/billet compressor wheel for Cosworth RS500

3.Size:

Nose diameter:13.81mm

inducer:57.10mm

Exduder:76.07mm

Tapered tip exducer:81.45mm

Tip height:7.04mm

Superback:4.97mm

Overall height:37.60mm

bore size :6.35mm

bore type:through

Trailing Angle:80 degree

Cutback:0.0

SP height Angle:-3.90

Splitter height:19.50mm

Blade height:26.33mm

7+7 blades

Forward rotation

Tapered tip angle:30 degree

It is FOR OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.
