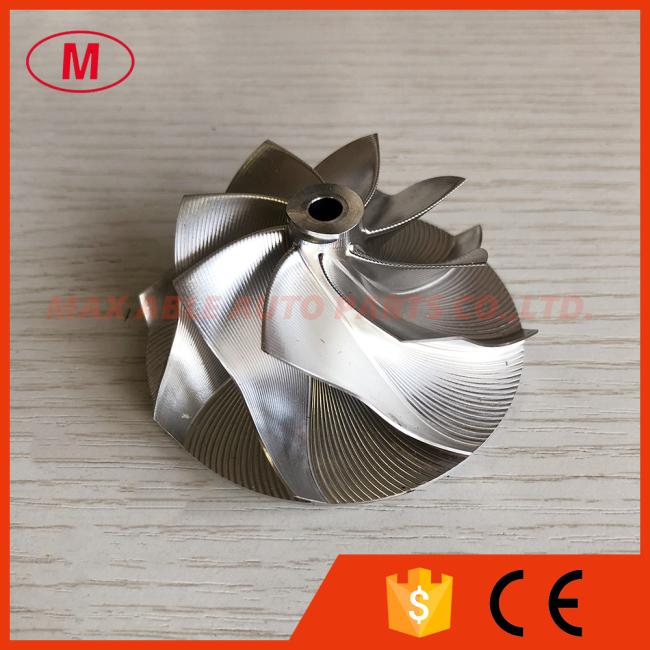

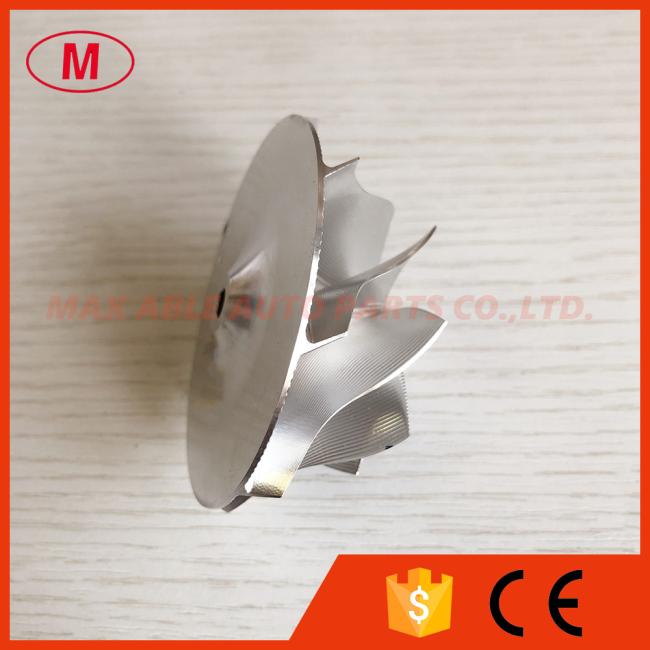

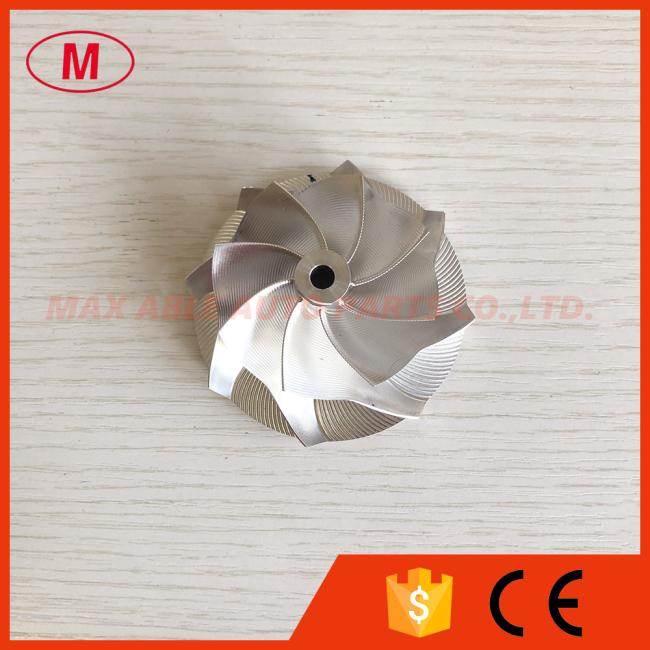

GT15-25 49.70/67.40mm 8+0 blades Point Milling, Air curve turbocharger milling/aluminum 2618/Billet compressor wheel

1. MODEL:GT15-25 forward

2.GT15-25 49.70/67.40mm 8+0 blades Point Milling, Air curve turbocharger milling/aluminum 2618/Billet compressor wheel

3.Size:

Nose diameter:11.91mm

inducer:49.70mm

Exduder:67.40mm

Tapered tip exducer:70.65mm

Tip height:6.00mm

Superback:3.71mm

Overall height:34.00mm

bore size :5.08mm

bore type:through

Trailing angle:50 degree

Cutback:0.0mm

SP height angle:0.0

Blade height:26.27mm

Splitter height:0.00mm

8+0 blades

Forward rotation

It is Custom size ,please check carefully before buying.

Tapered tip angle:18 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.
