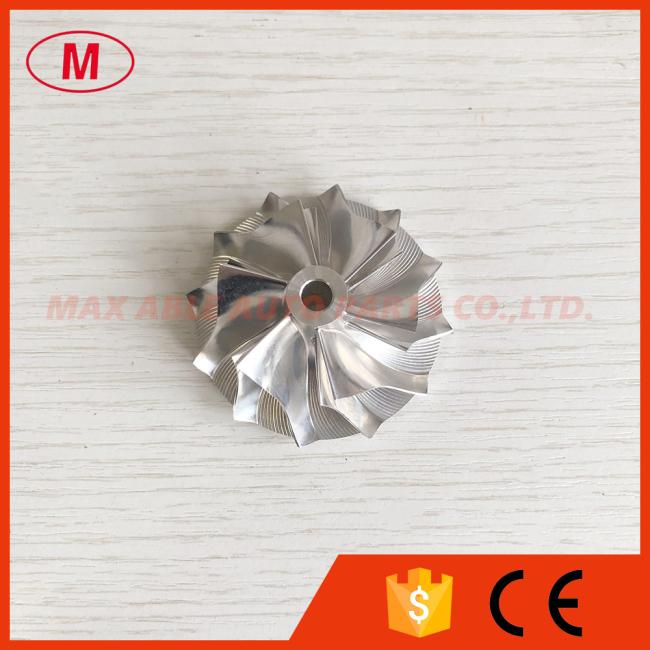

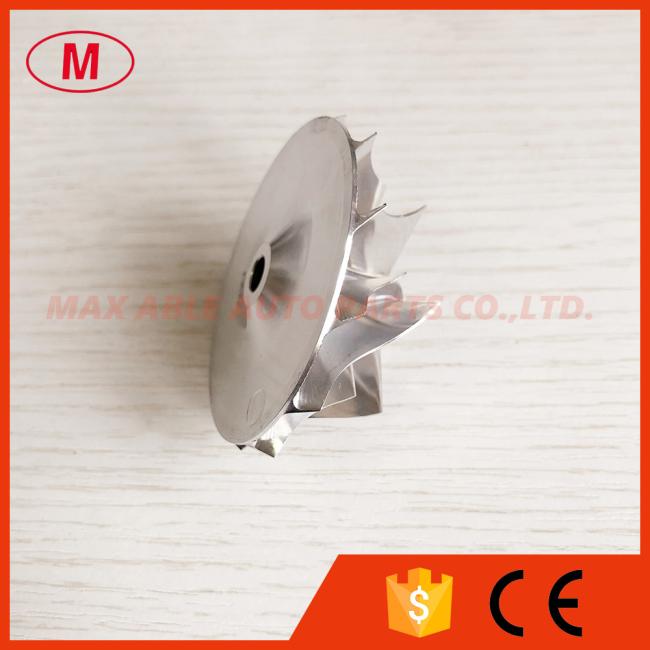

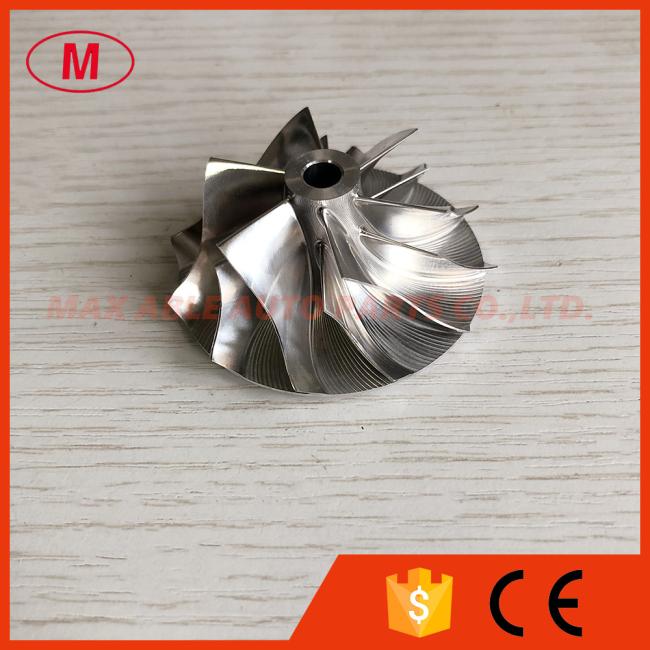

TB2514 445347-0018 40.31/54.39mm 6+6blades Performance aluminum 2618/milling/billet compressor wheel for 465555-0002

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Product Description

1.Model:TB2514 Forward

2. TB2514 445347-0018 40.31/54.39mm 6+6blades Performance turbo aluminum 2618/milling/billet compressor wheel for 465555-0002/0003
3.Size:

Nose diameter:12.00mm

inducer:40.31mm

Exduder:54.39mm

Tapered tip exducer:58.16mm

Tip height:4.27mm

Superback:2.33mm

Overall height:24.48mm

Bore size:6.00mm

Trailing angle:45

Cutback:0.0

SP Height angle:0.00

Blades height:20.20mm

Splitter height:13.65mm

6+6 blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing.

4.Good quality and competitive price.

5.We have many other size ,please send email to me !

ALL the compressor wheel have been balanced.
