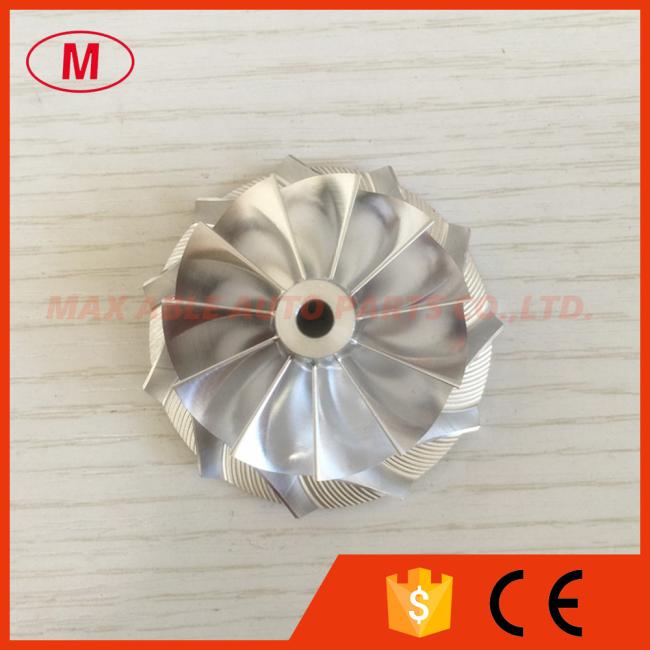

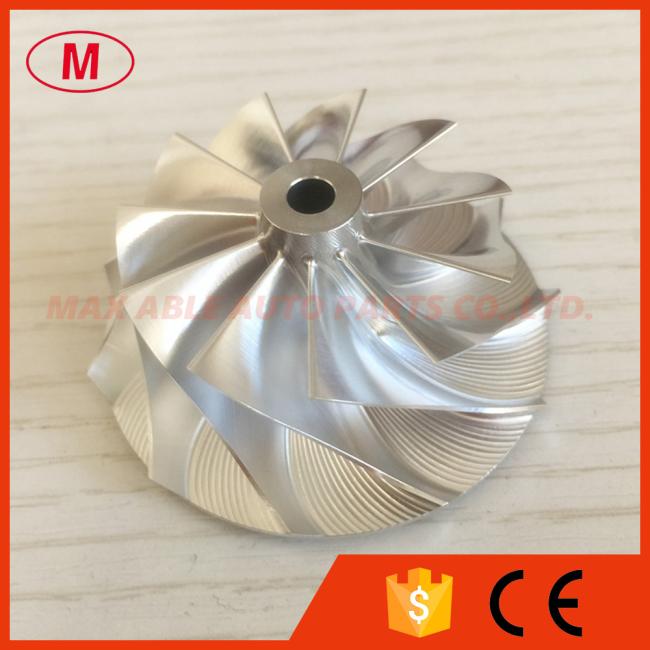

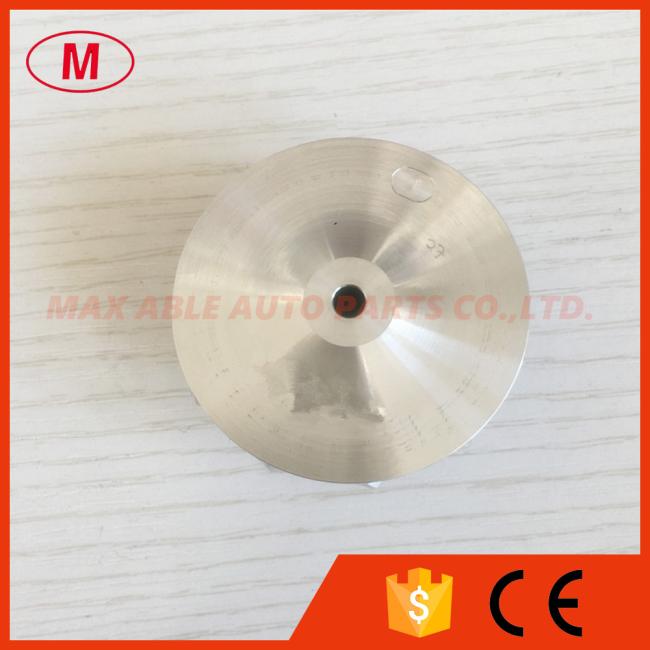

TD04HL 16T 49189-00016 43.43/56.02mm 11+0 blades Turbo Billet compressor wheel for

1. MODEL:TD04HL 16T Forward

2.TD04HL 16T 49189-00016 43.43/56.02mm 11+0 blades Turbo milling/aluminum 2618 compressor wheel/Billet for 49189-01330/1350/1450/49377-00221

3.Size:

Nose diameter:10.73mm

inducer:43.43mm

Exduder:56.02mm

Tapered tip exducer:58.48mm

Tip height:4.79mm

Superback:1.83mm

bore size :5.00mm

bore type:through

Overall height:25.80mm

Trailing angle:50 degree

Cutback:0.0

SP height angle:0.00

Blade height:20.17mm

Splitter height:0.00

11+0 blades

​FORWARD ROTATION

Tapered tip angle:18 degree

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
