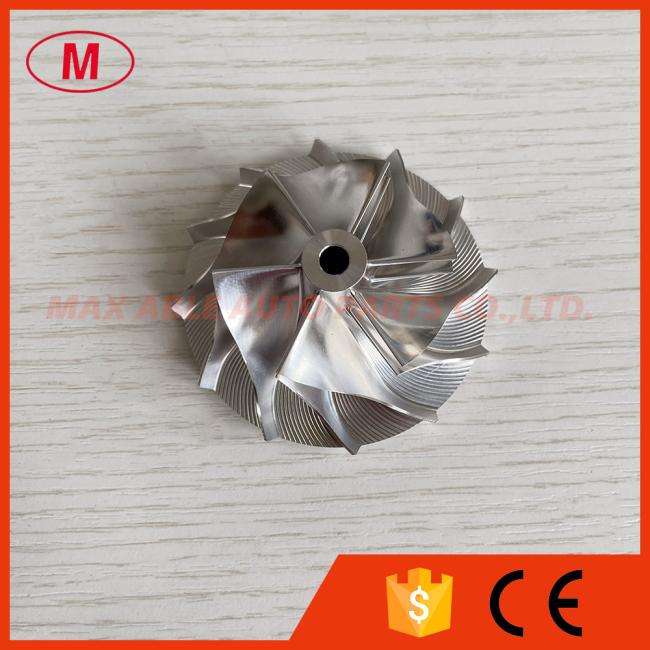

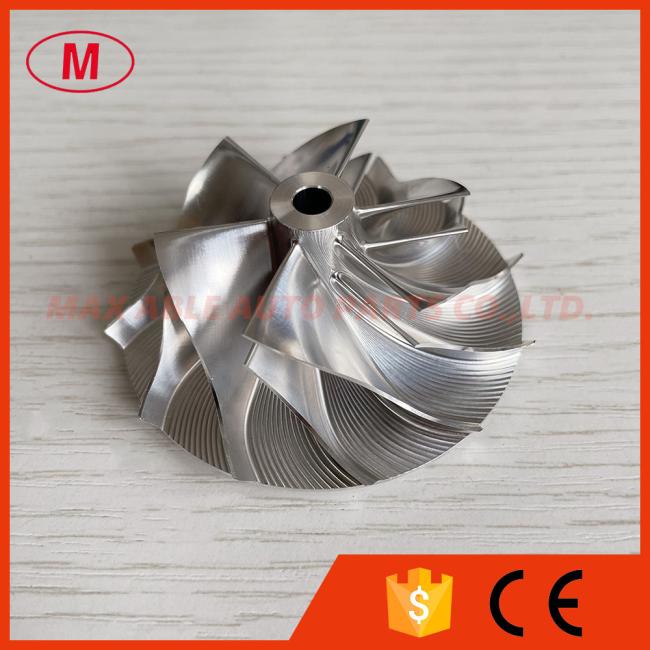

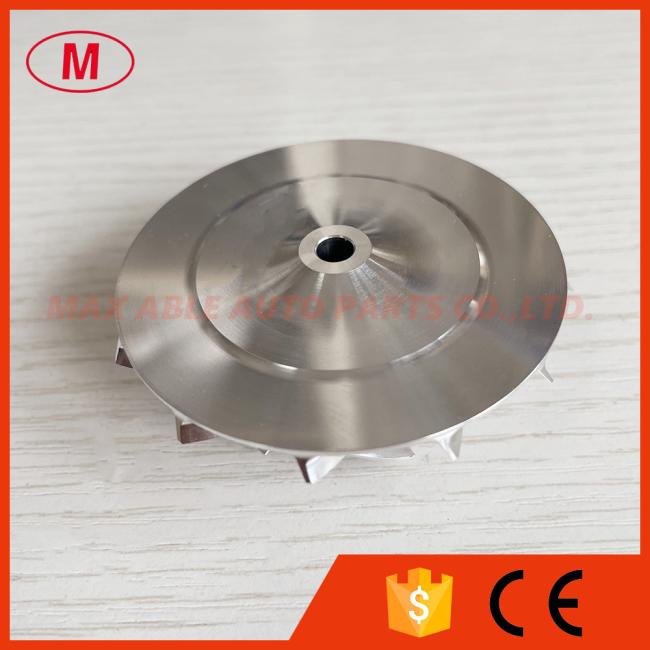

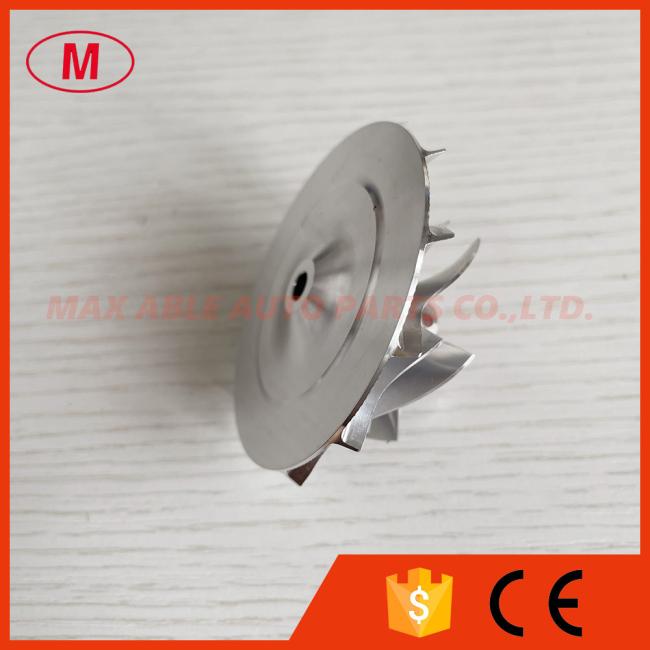

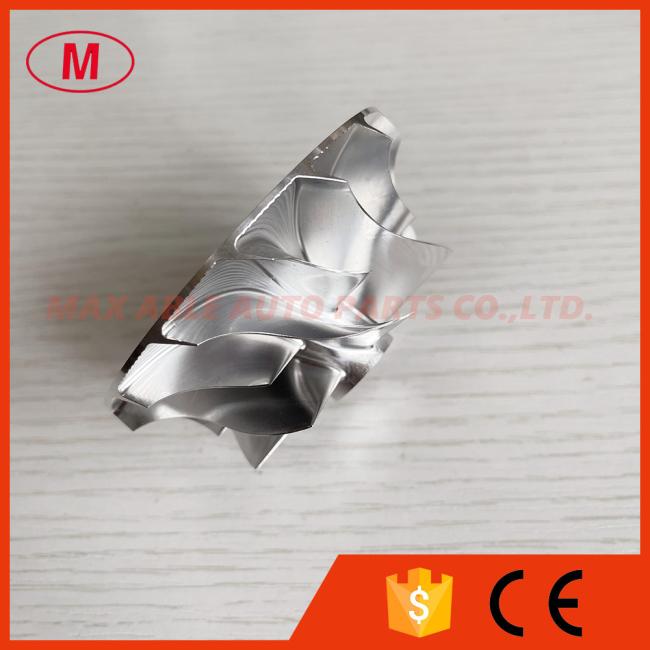

CT10 42.50/61.00mm 17291-0L020HF 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for Upgrade 17201-0L020

1. MODEL:CT10 Forward

2. CT10 42.50/61.00mm 17291-0L020HF 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for Upgrade 17201-0L020

3.Size:

Nose diameter:11.07mm

inducer:42.50mm

Exducer:61.00mm

Tapered tip exducer:64.44mm

Tip height:3.98mm

Superback:2.65mm

Overall height:25.27mm

Bore size:5.10mm

bore type:through

Trailing angle:65 degree

Cutback:0.0

Blades height:20.06mm

Splitter height:13.70mm

SP Height angle:3.20 angree

6+6 blades

forward rotation

Tapred tip angle: 30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me,we have many size.

All the compressor wheel have been balanced.
