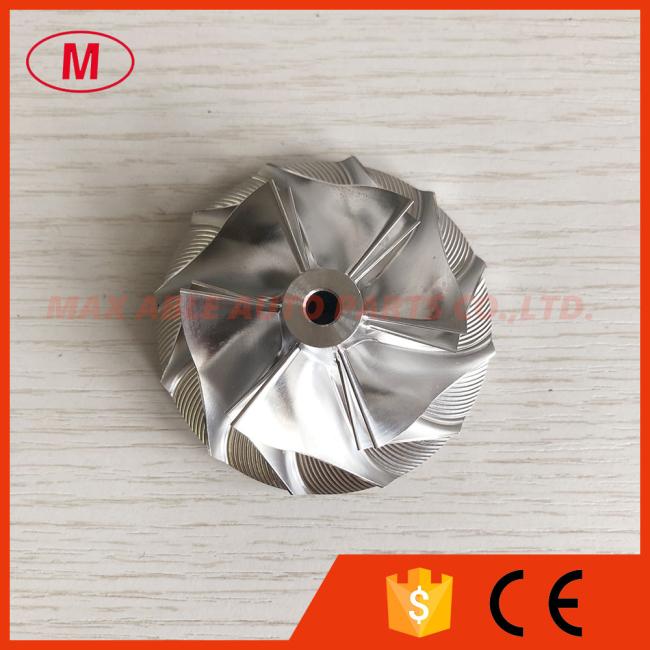

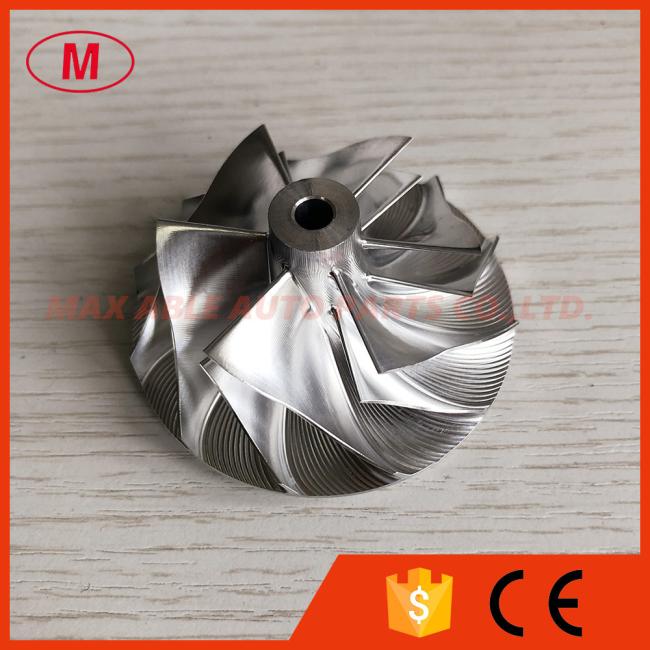

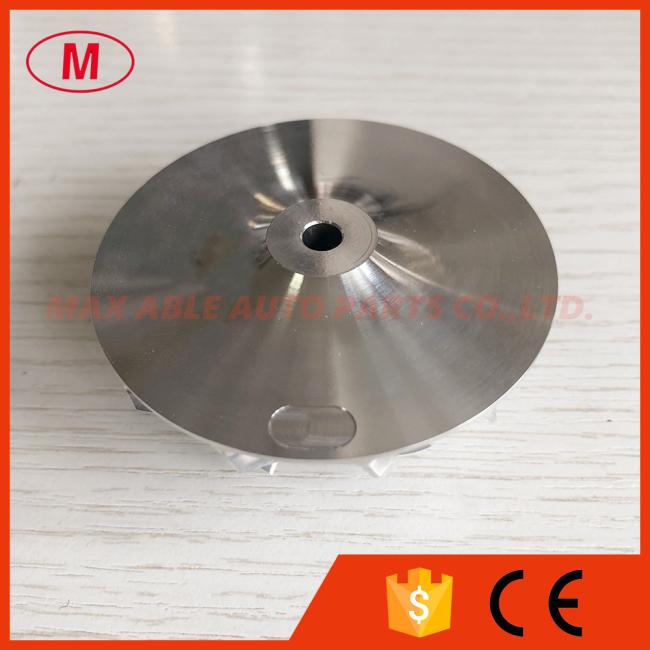

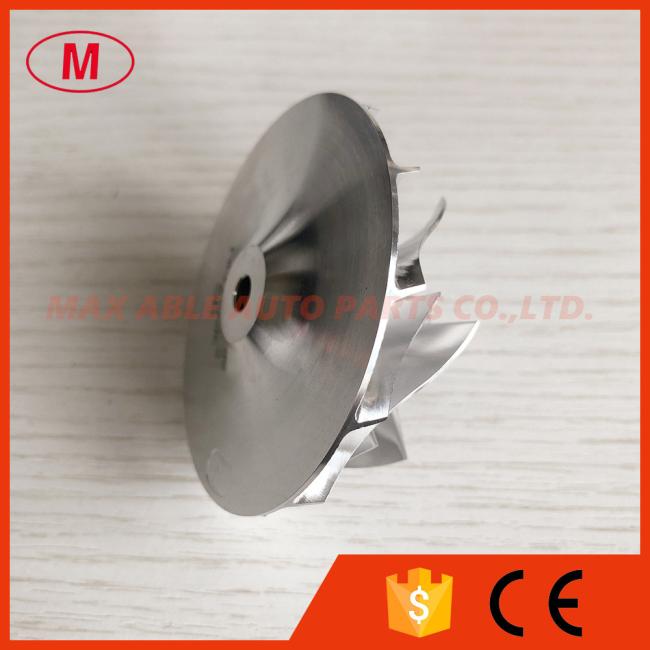

GT15-25 Forward 44.39/60.01mm 6+6 Blades 784369-0002/787571-0002 turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:GT15-25 forward

2.GT15-25 Forward 44.39/60.01mm 6+6 Blades 784369-0002/787571-0002 turbo billet/milling/aluminum 2618 compressor wheel for 758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009

3.Size:

Nose Diameter:12.11mm

inducer:44.39mm

Exduder:60.01mm

Tip height:5.16mm

Superback:3.79mm

Overall height:29.44mm

bore size :5.08mm

bore type:through

Trailing angle:60 degree

Cutback:0.0

SP height angle:-4.20

Splitter height:13.75mm

Blade height:20.50mm

Forward rotation

6+6 blades

Tapered tip angle:0 degree

Application:

758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement .

The more models we also have.
