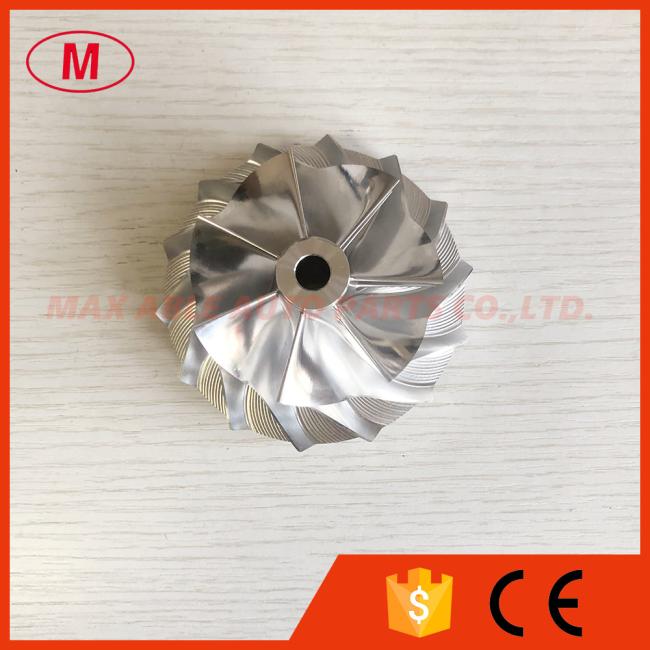

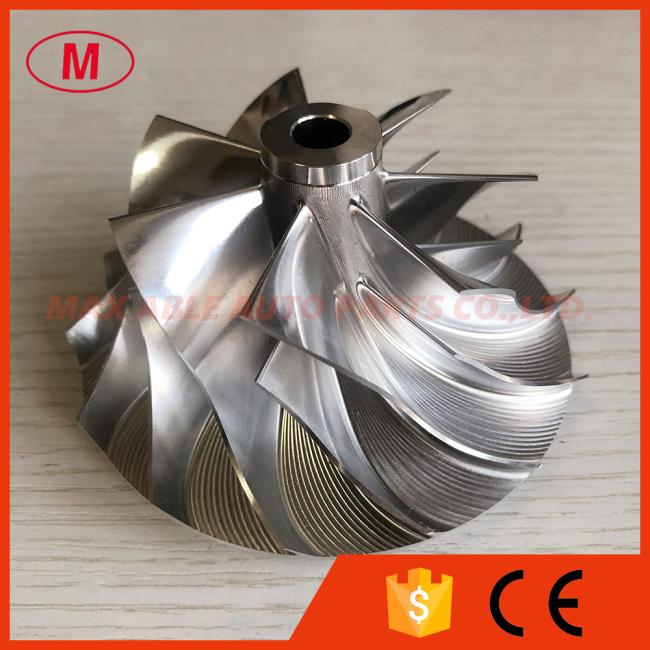

S300 forward 169565 61.40/84.62mm 7+7 blades turbo milling/alumimun 2618/Billet compressor wheel FOR S362/PTE6265/6265CE

Price Negotiable
Price: Negotiable
MOQ: 10pcs
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:S300 forward

2.S300 forward 169565 61.40/84.62mm 7+7 blades turbo billet/milling/alumimun 2618 compressor wheel FOR S362/PTE6265/6265CEA : S30062FMW67100/6791/6788

3.Size:

Nose diameter:17.36mm

inducer:61.40mm

Exducer:84.62mm

Tapered tip exducer:88.32mm

Tip height:6.69mm

Superback:7.00mm

Overall height:49.08mm

Bore size:8.01mm

Trailing Angle:60

Sp height angle:-5.00

Splitter height:23.55mm

Blade height:35.68mm

Cutback:0.0

Tapered tip angle: 18 degree

7+7 BLADES

Forward rotation

It is for OE compressor housing.



4.High quality and competitive price.

5.Any questions please send email to me.



All the compressor wheels have been balanced
