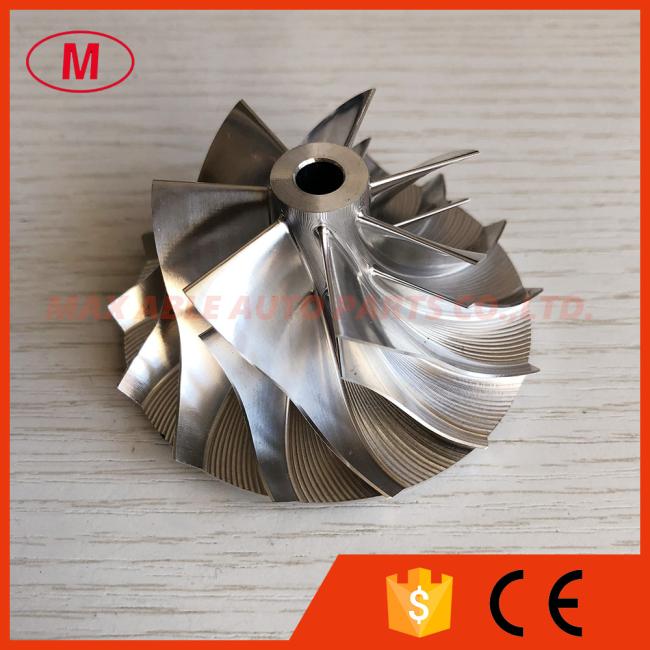

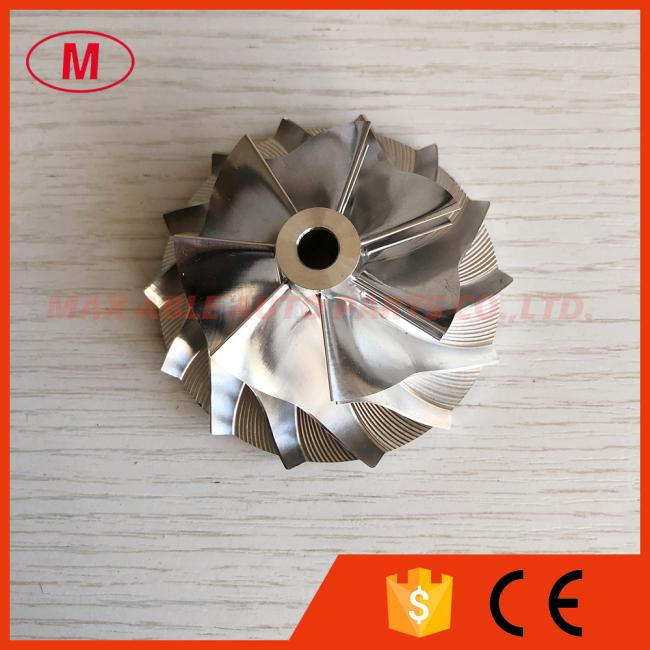

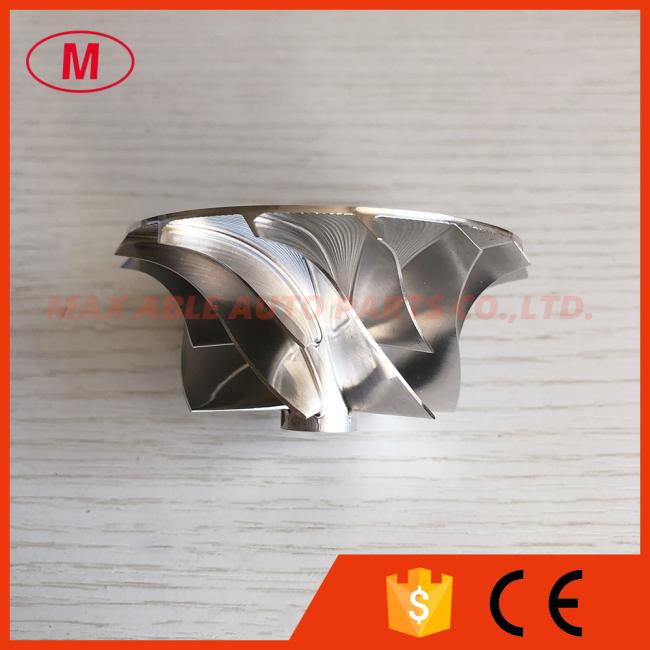

TD05H 16G 48.30/68.01mm 7+7blades 49178-01560 performance high blade Turbo milling/Aluminum 2618/Billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:TD05H 16G forward

2.TD05H 16G 48.30/68.01mm 7+7 blades 49178-01560 High performance high blade height Turbo Billet/milling/Aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.50mm

inducer:48.30mm

Exducer:68.01mm

Tapered tip exducer:72.18mm

Tip height:4.61mm

Superback:2.90mm

Overall height:35.00mm

bore size :6.50mm

bore type:through

Trailing Angle:55 degree

Cutback:0.0

SP height angle:-6.60

Blade height:28.70mm

Splitter height:18.70mm

It is for OE Compressor housing

7+7FORWARD

It is for OE compressor housing

Tapered tip Angle: 30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
