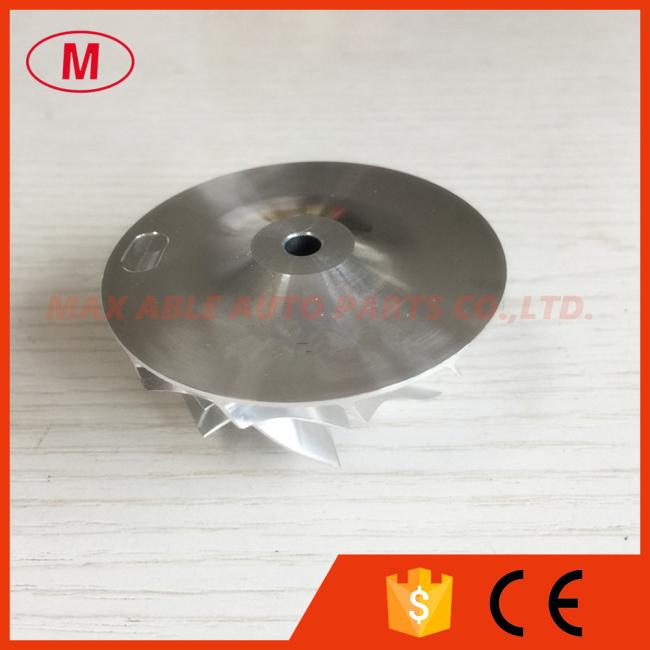

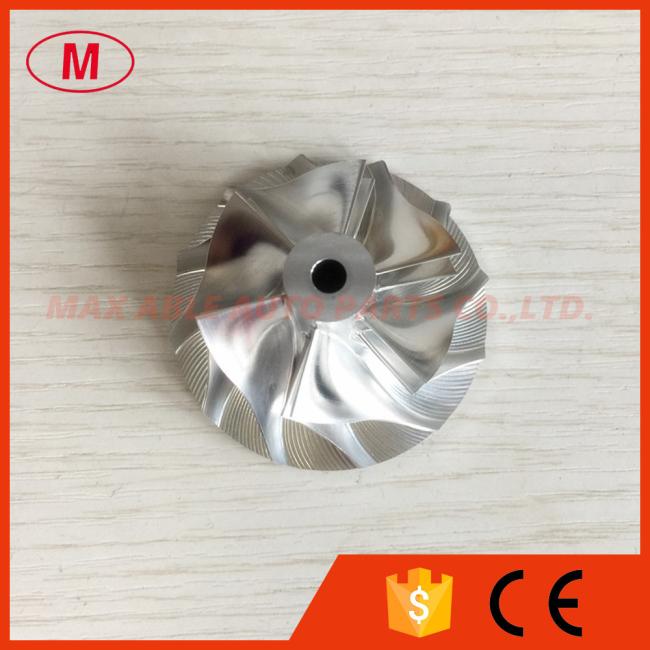

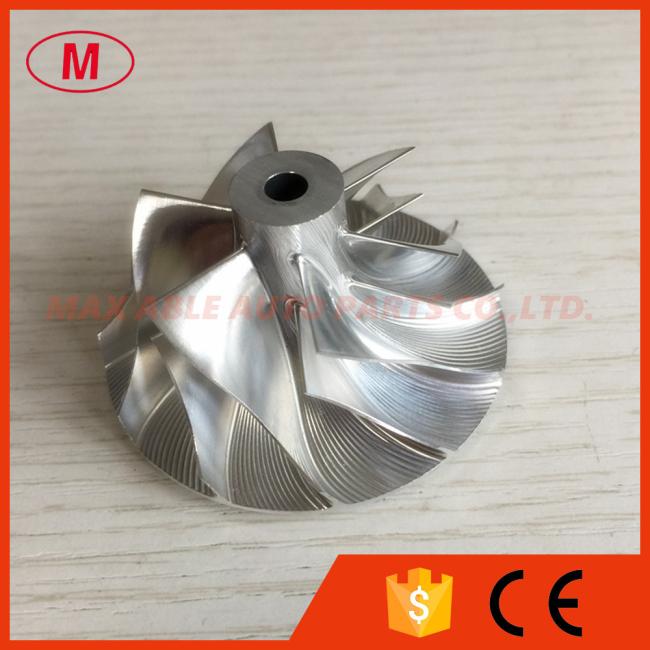

GT15-25 6+6 blades 41.52/56.02mm 701374-0001/6 turbocharger milling/aluminum 2618/billet compressor wheel for 454191

1. MODEL:GT15-25 FORWARD

2.GT15-25 6+6 blades 41.52/56.02mm 701374-0001/6 1102-025-400 turbocharger billet/milling/aluminum 2618 compressor wheel for 454191-0001/454191-0003/454191-0004/454191-0005/454191-0006/454191-0007/454191-0008/454191-0009/454191-0010/454191-0011/454191-0012/454191-0013/454191-0015/454191-0017

3.Size:

Nose diameter:13.42mm

inducer:41.52mm

Exduder:56.02mm

Tip height:5.11mm

Superback:2.39mm

Overall height:29.15mm

bore size :5.08mm

bore type:through

Trailing angle:60 degree

Cutback:0.00

SP height angle:0.00

Blade height:21.42mm

Splitter height:14.41mm

6+6 blades

Tapered tip angle:0 degree

It is for OE compressor housing

4.Application:

454191-0001

454191-0003

454191-0004

454191-0005

454191-0006

454191-0007

454191-0008

454191-0009

454191-0010

454191-0011

454191-0012

454191-0013

454191-0015

454191-0017

5.High quality and competitive price.

6.if you want more details, please send email to me.

We can produce as your requirement.
