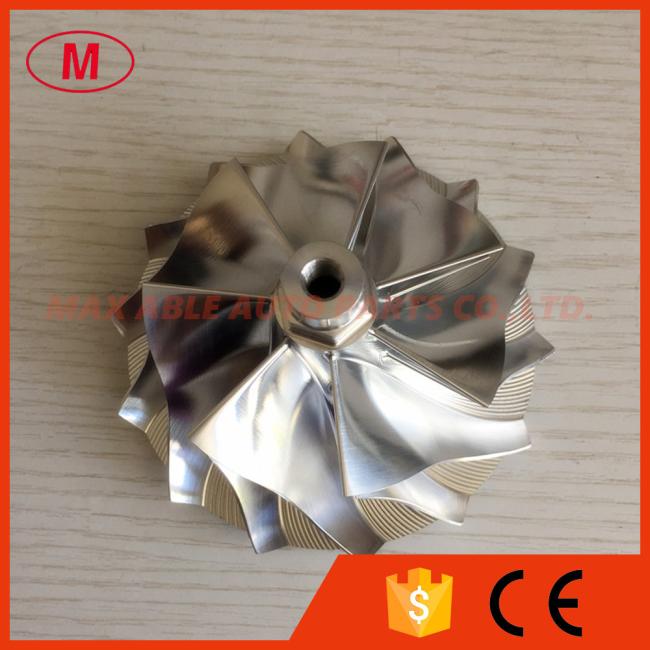

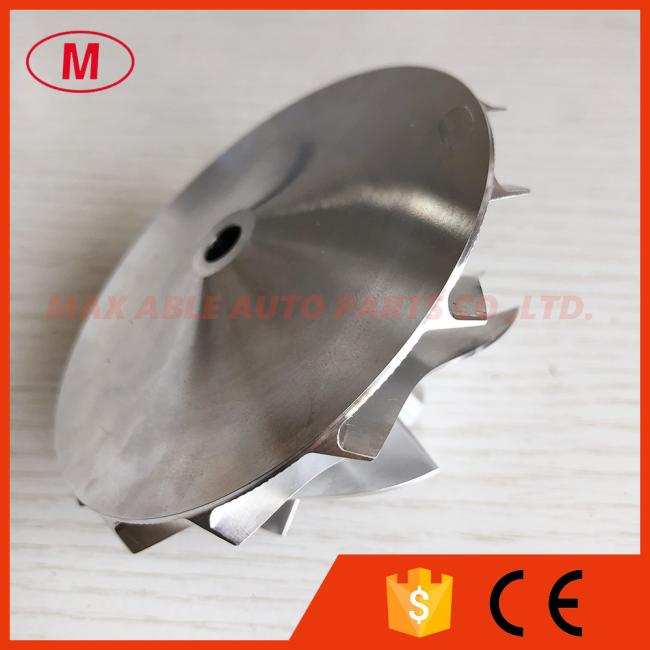

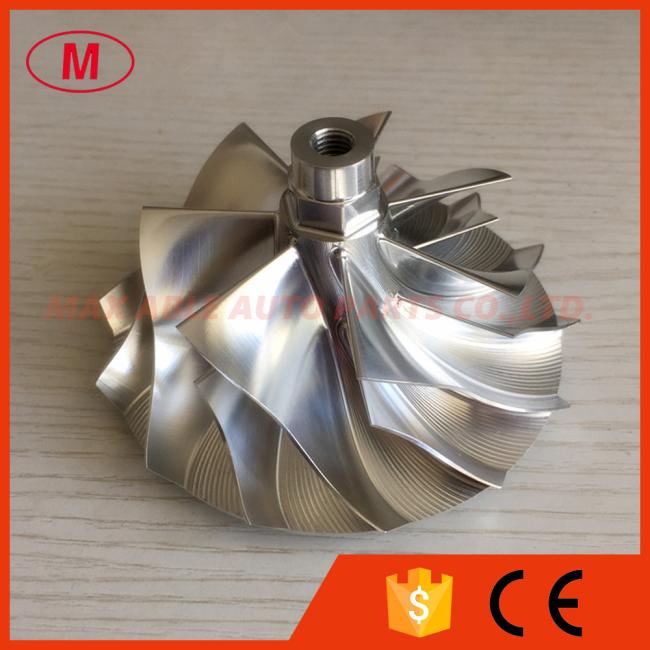

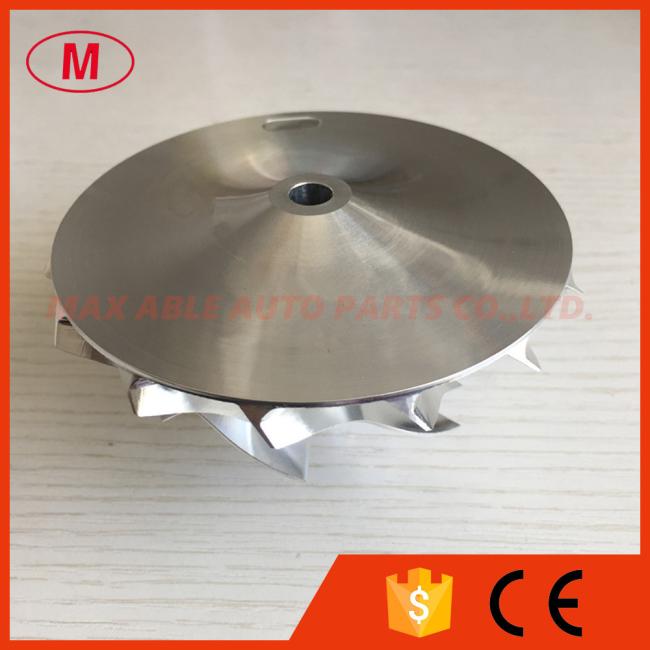

GT3788VA 68.00/88.25mm 7+7 blades 725326-0002 upgrae high performance turbo billet compressor wheel for Chevy 6.6L

1. MODEL:GT3788VA forward

2.GT3788VA 68.00/88.25mm 7+7 blades 725326-0002 upgrae high performance turbo Billet/milling compressor wheel for Chevy 6.6L 2004.5-2005 Dura-max LLY (736554-0011/8-97387-8962)

3.Size:

Nose diameter:18.59mm

inducer:68.00mm

Exduder:88.25mm

Tapered tip exducer:94.04mm

Tip height:6.01mm

Superback:5.30mm

Overall height:50.92mm

bore size :7.48mm

Trailing angle:50 degree

Bore type:Threaded-M7x1.0LHT

Cutback:2.0mm

Sp height angle:-2.00

Blade height:30.20mm

Splitter height:17.30mm

7+7 blades

Forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.
