TD05H 56.24/75.00mm 11+0 blades 49179-02712 turbo Turbocharger milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Product Description
1. MODEL:TD05H FORWARD

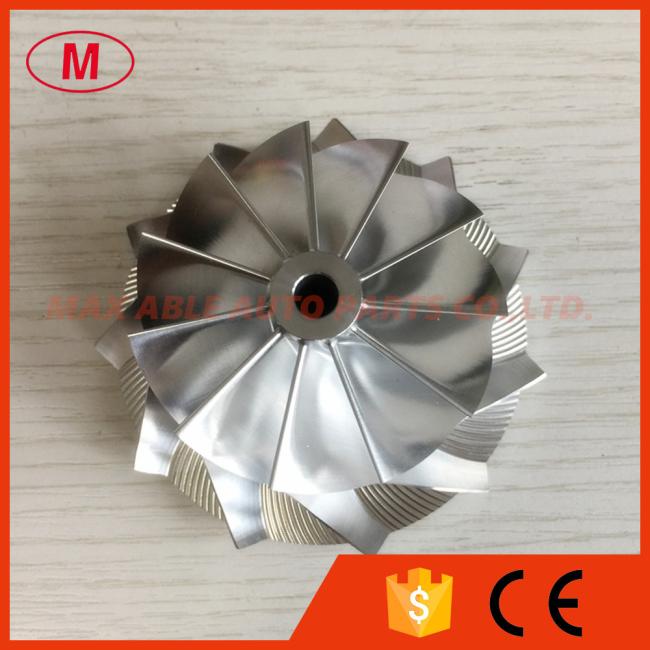

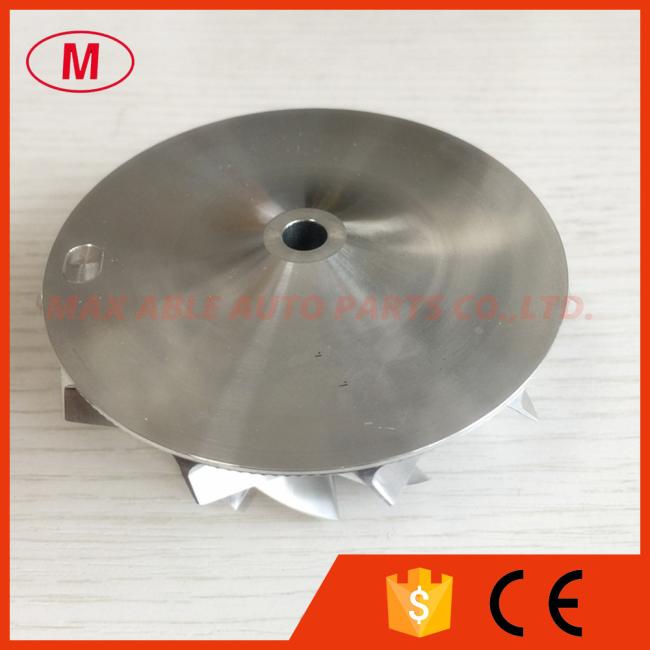

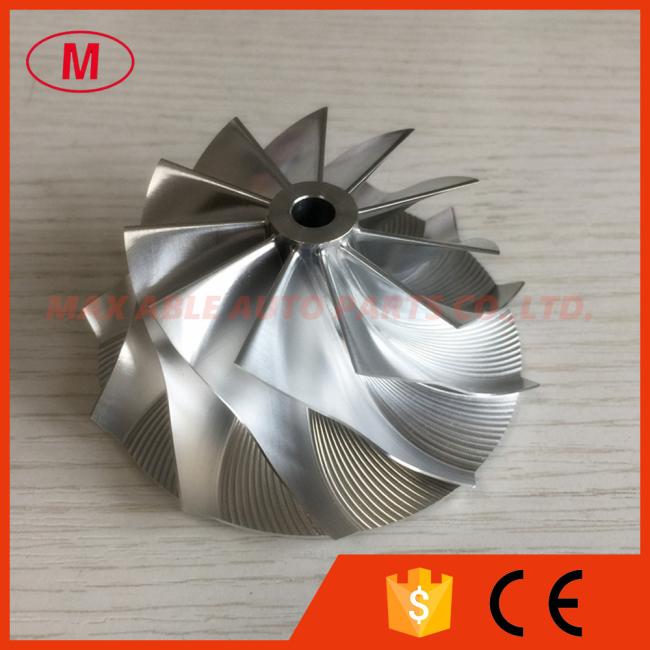

2.TD05H 56.24/75.00mm 11+0 blades 49179-02712 turbo Turbocharger Billet/milling/aluminum 2618 compressor wheel for M-ISUBISHI
3.Size:
Nose diameter:13.42mm
Inducer:56.24mm
exducer:75.00mm
Tapered tip exducer:80.58mm
Tip height:6.58mm
Superback:2.70mm
Overall height:34.78mm
bore size :6.50mm
bore type:through
Trailing Angle:45
Cutback:0.0
Blades height:30.51 mm
Sp height angle:0.00
Splitter height:0.00mm
11+0 blades forward
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
