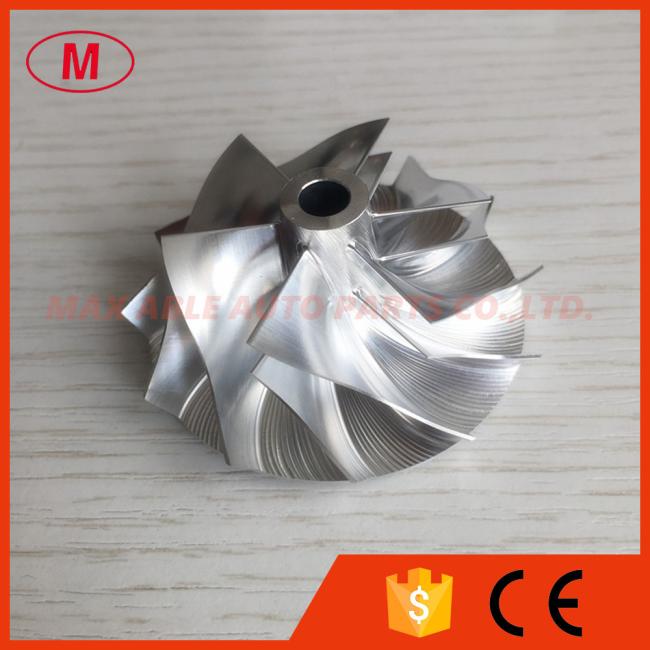

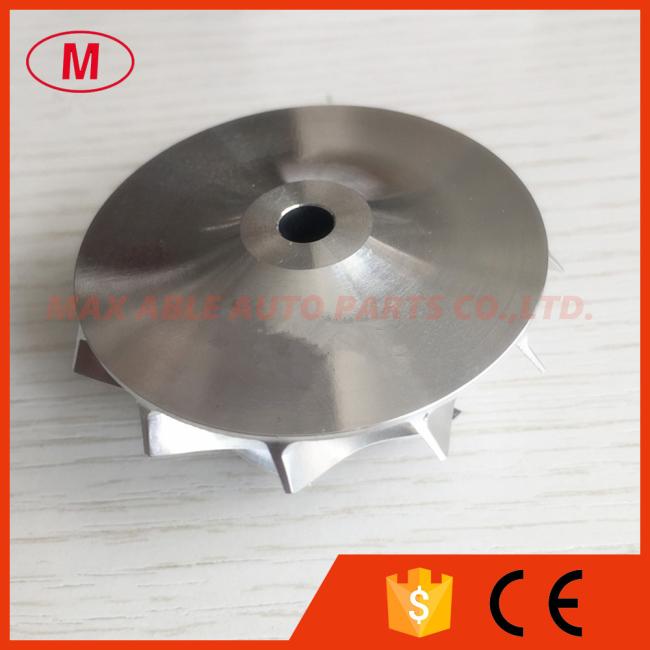

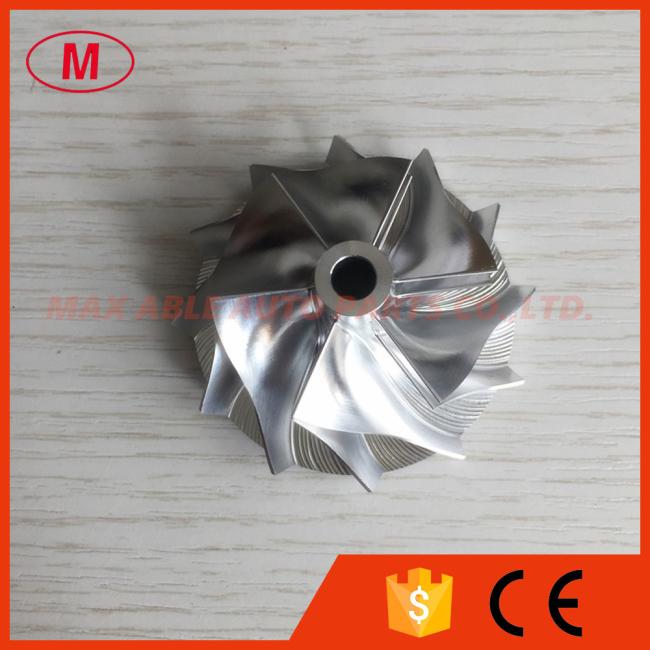

TB25 431350-0015 39.79/51.37mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 452022/452038/452039

1. MODEL:TB25 forward

2.TB25 431350-0015 39.79/51.37mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 452022/452038/452039/452052/465169/465435/465667/465675/465767/465941/466073/466135/466852/466880

3.Size:

Nose diameter:10.52mm

inducer:39.79mm

Exduder:51.37mm

Tapered tip exducer:56.65mm

Tip height:5.57mm

Superback:2.24mm

Overall height:24.54mm

bore size :5.99mm

bore type:through

Trailing Angle:70 degree

Cutback:0.0

Blades height:18.79mm

Splitter height:13.05mm

Sp height angle:-8.00

6+6 blades

Forward rotation

Tapered tip Angle:30 degree

Fit for OE compressor housing

Application:

452022

452038

452039

452052

465169

465435

465667

465675

465767

465941

466073

466135

466852

466880

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

ALL the billet compressor wheels have been balanced.

The more models we also have.
