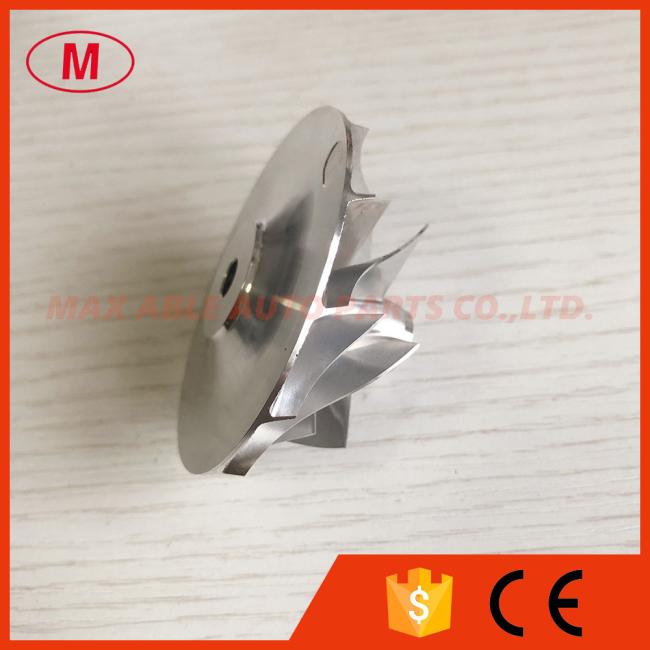

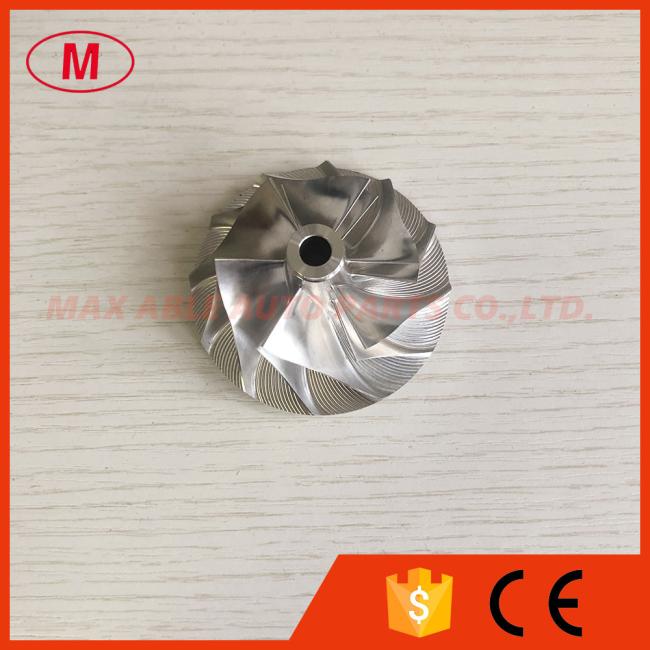

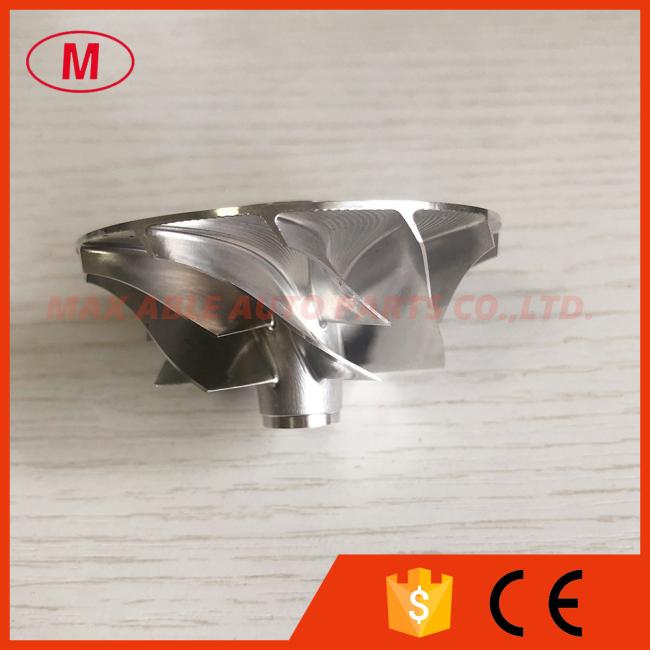

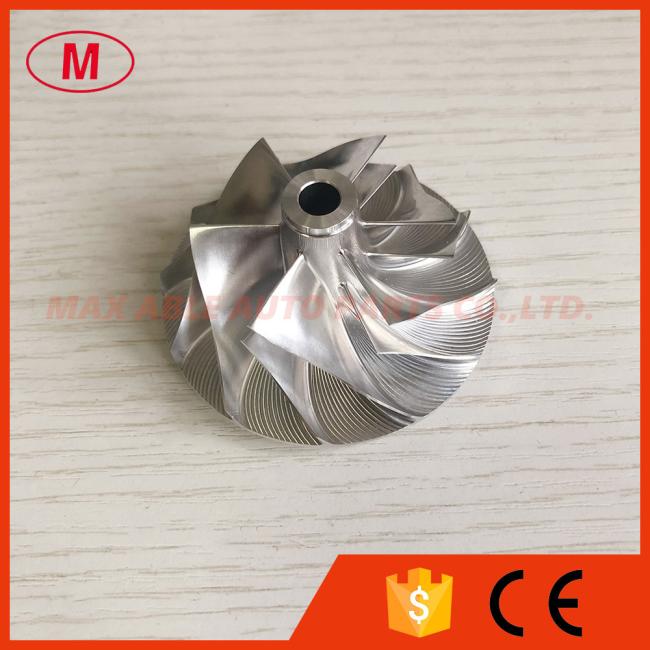

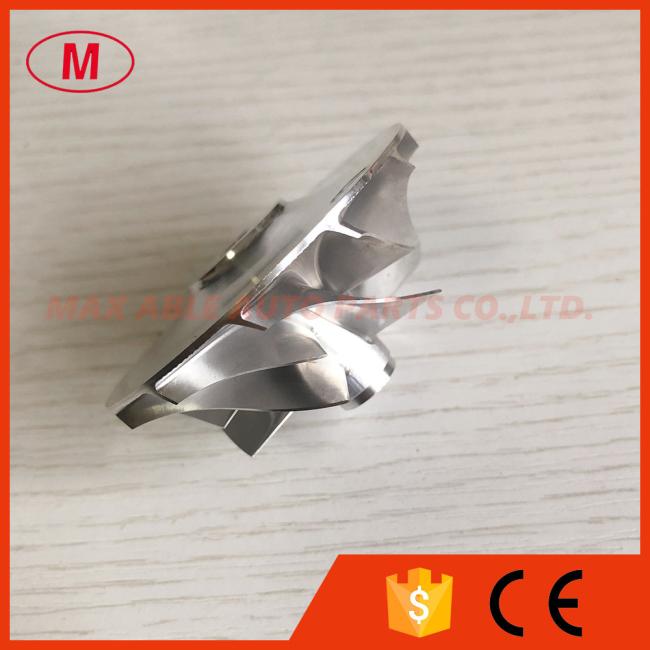

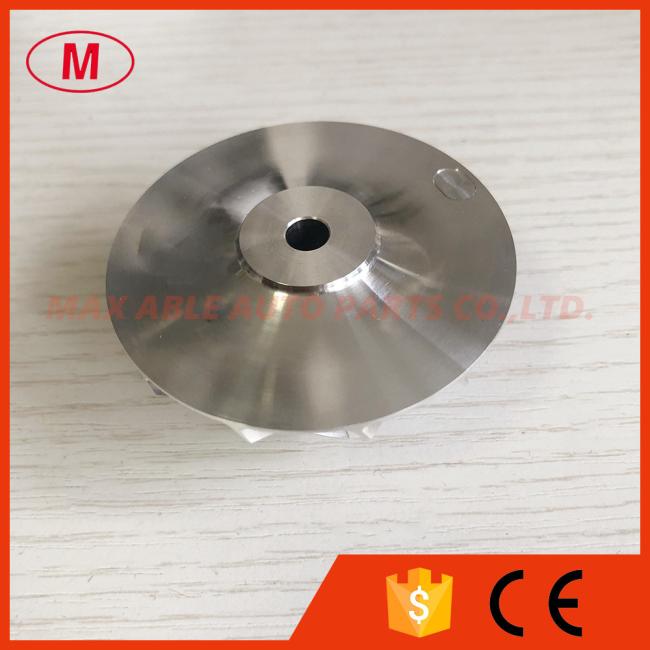

TA31 409096-0014 6207-81-8130 42.55/60.25mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for KOMATSU

1. MODEL:TA31 forward

2.TA31 409096-0014 6207-81-8130 42.55/60.25mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for K-omats-u 452012-0003/454114-0001/454177-0001/465103-0001/465133-0003/465143-0007/465163-0001

3.Size:

Nose diameter:12.16mm

inducer:42.55mm

Exduder:60.25mm

Tapered tip Angle:0 degree

Tip height:4.56mm

Superback:3.81mm

Overall height:31.00mm

bore size :6.35mm

Trailing Angle:60 degree

Cutback:1.0

Blade height:20.70mm

S​plitter height :13.85mm

S​p height angle:-4.50

6+6 blades

Forward rotation

Fit for OE compressor housing

Application:

452012-0003

454114-0001

454177-0001

465103-0001

465133-0003

465143-0007

465163-0001

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
