HX35 3537168 53.88/81.30 mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for KOMATSU/6BT/6BTA
Price:
Negotiable
MOQ:
1PC
Delivery Time:
3-7 days
Brand:
NO
Product Description
1. MODEL:HX35 forward
2.HX35 3537168 53.88/81.30mm 11+0 blades turbo Billet/milling/aluminum 2618 compressor wheel for 3539699/3539698/3539700/3590032/6735-81-8021/6735-81-8301/6735-81-8041 /3804877 Komatsu /6BT/6BTA
3.Size:
Nose diameter:15.89mm
Inducer:53.88mm
exducer:81.30mm
Tip height:5.78mm
OE exducer:81.94mm
Superback:5.01mm
bore size :7.00mm
bore type:through
Overall height:39.50mm
Cutback:0.0
SP Height angle:0.00
Trailing Angle:40 degree
Blades height:29.35mm
Splitter height:0.00mm

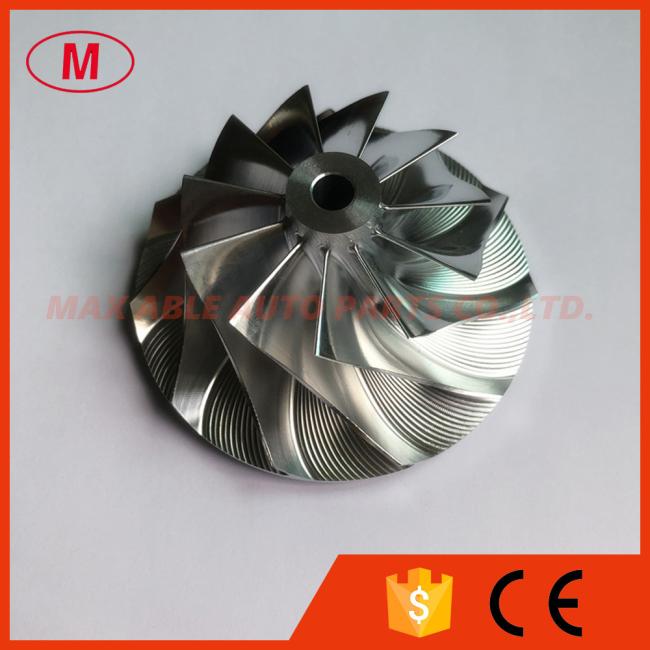

11+0 blades forward
Fit for OE compressor housing
Tapered tip Angle:0 degree
Application:
3539699
3539698
3539700
3590032
6735-81-8021
6735-81-8301
6735-81-8041
3804877
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
