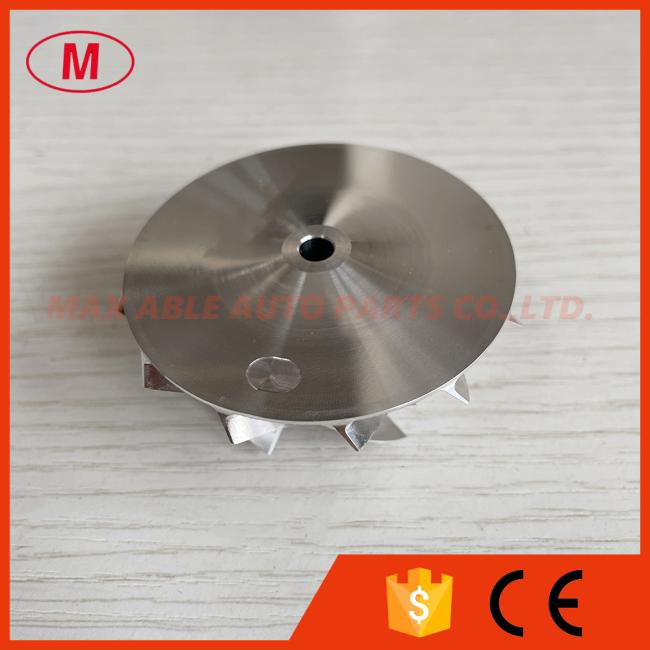

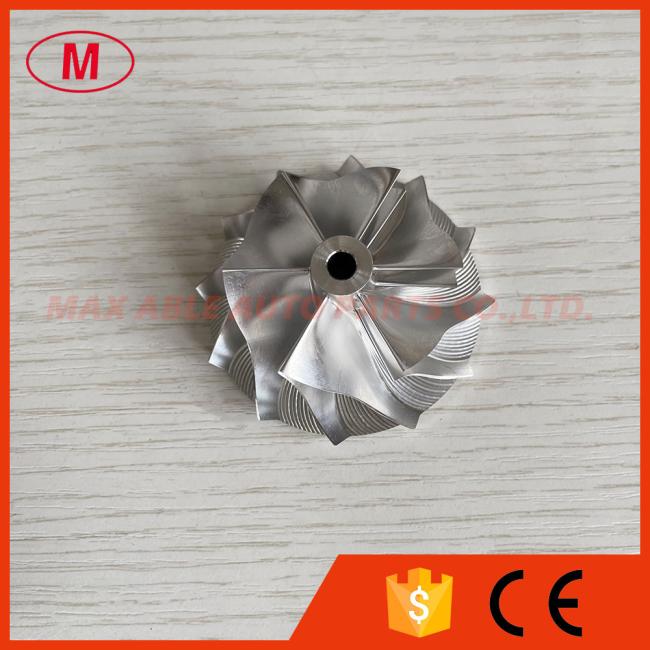

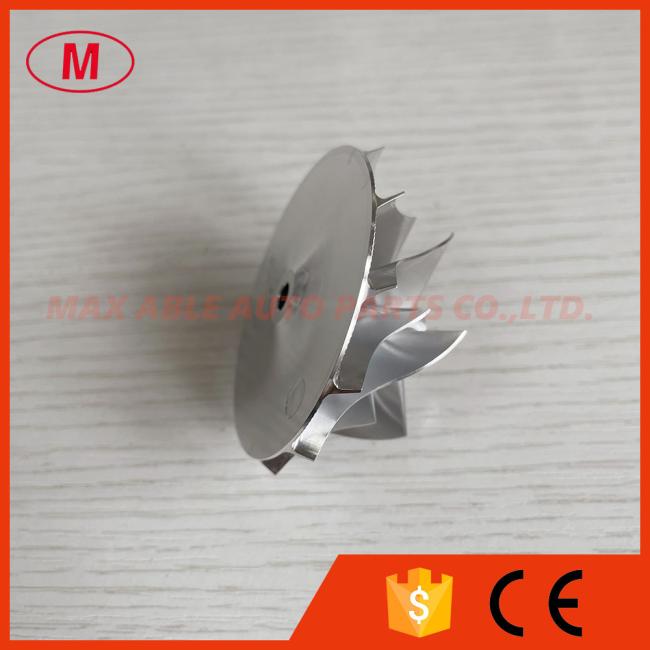

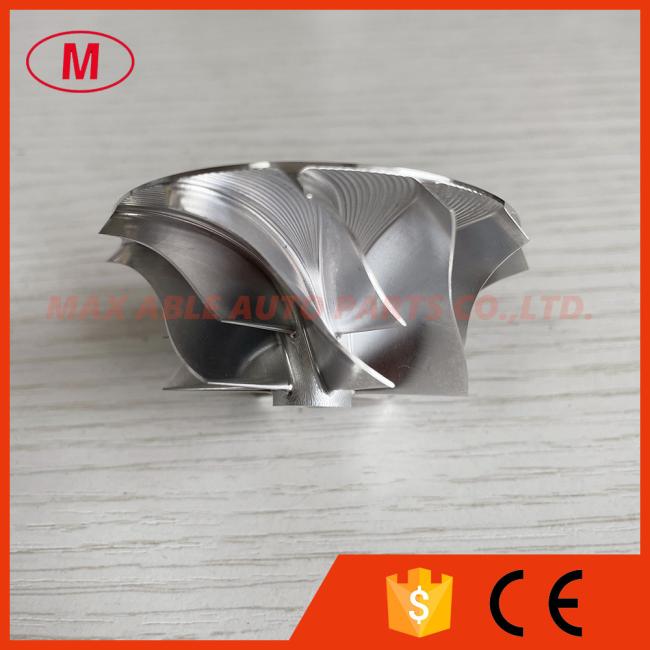

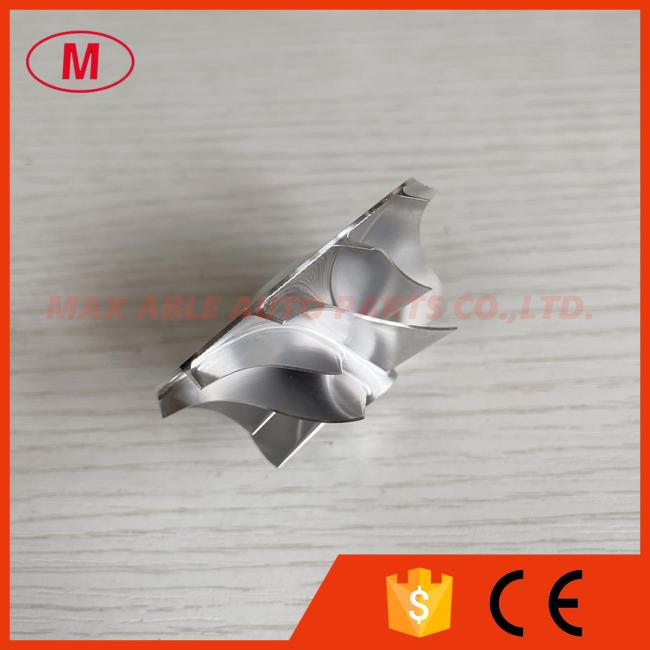

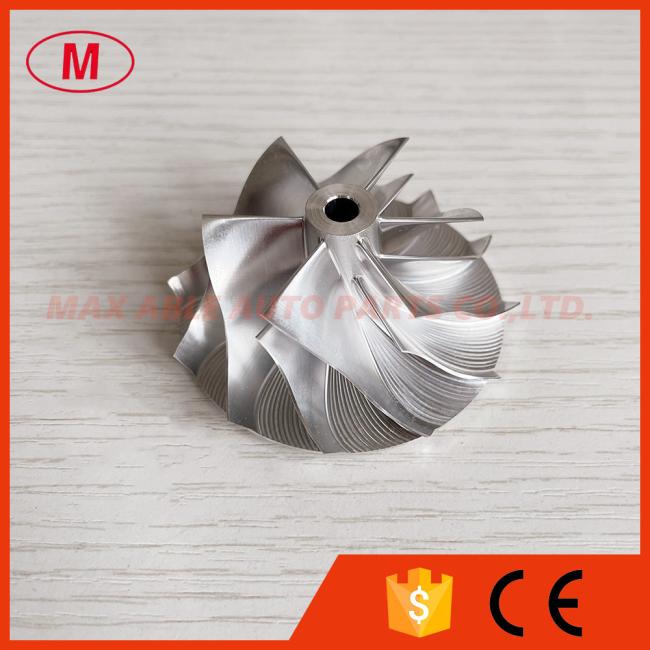

TD04L6-15TK31 42.00/56.02mm 6+6 blades forward turbo milling/billet compressor wheel for 49377-07320/49377-07325
Price:
Negotiable
MOQ:
1PC
Delivery Time:
3-7 days
Brand:
NO
Product Description
1.Model:TD04L6-15TK31 FORWARD
2.TD04L6-15TK31 42.00/56.02mm 6+6 blades forward turbo milling/billet compressor wheel for 49377-07320/49377-07325
3.Size:
Nose diamter:10.77mm
inducer:42.00mm
Exduder:56.02mm
Tapered tip exducer:59.95mm
Tip height:4.41mm
Superback:1.83mm
Overall height:26.20mm
bore size :5.00mm
bore type:through
Trailing Angle:55 degree
Cutback:0.00
Blade height:22.38mm
Splitter height:15.40mm
Sp height angle:-2.00
It is custom size,please check carefully before buying.
6+6 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
