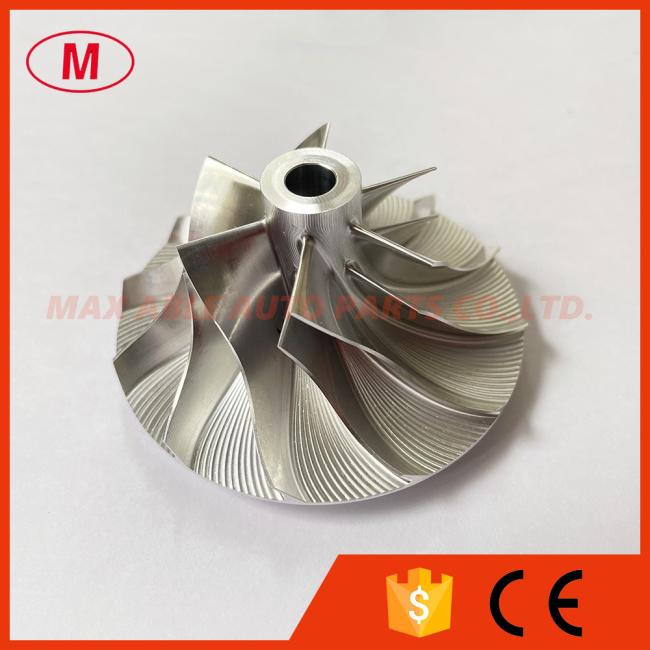

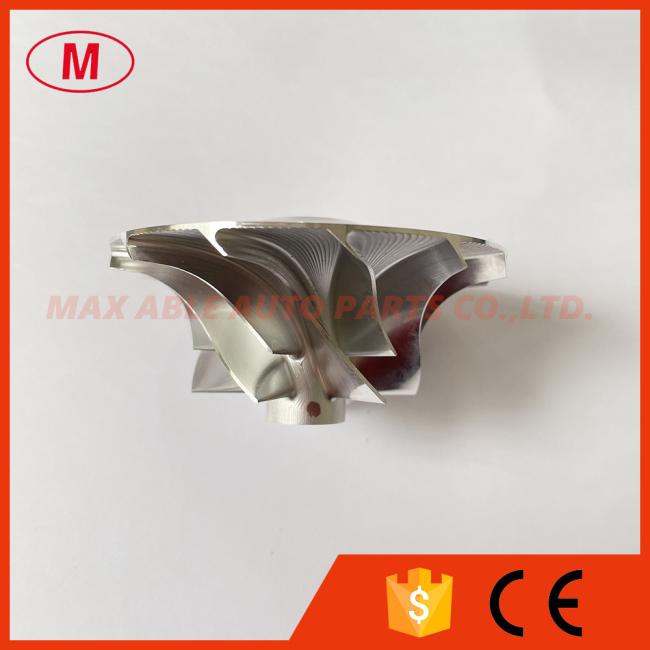

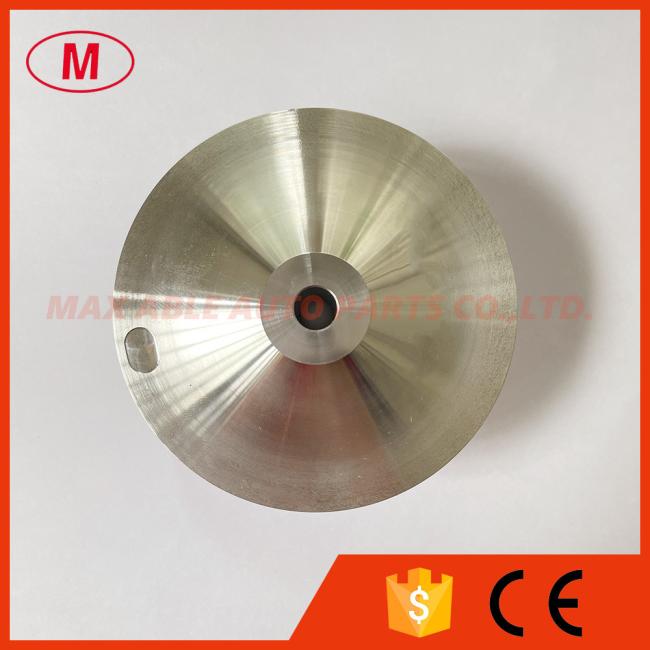

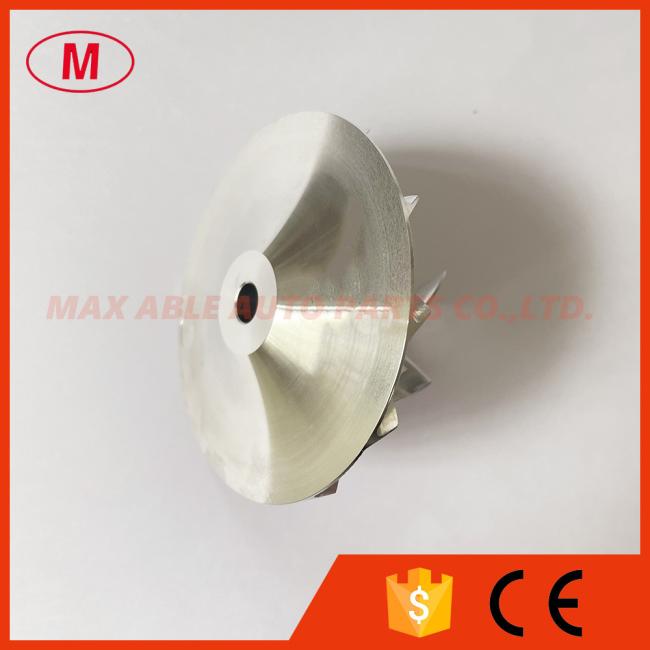

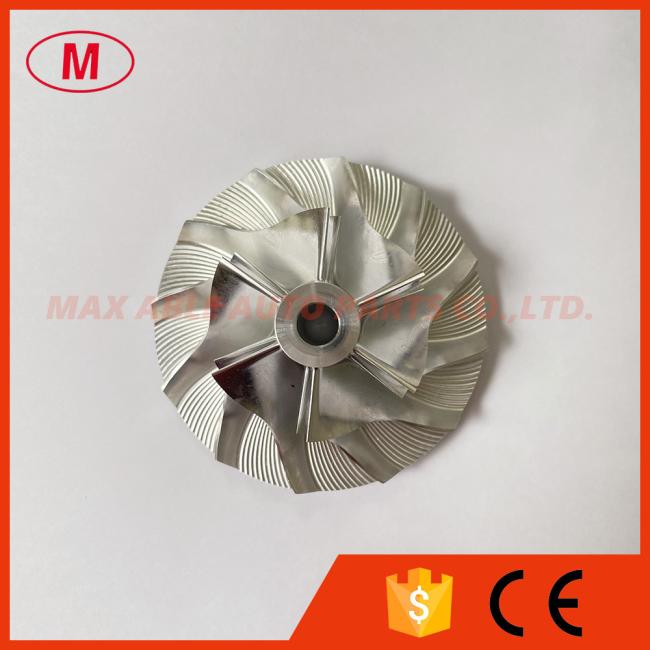

HX30 3599693 40.10/67.97mm 6+6 blades milling/aluminum 2618/billet compressor wheel for 3802908/3592110/3592111/3592112

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description



1.  MODEL:HX30 forward
2.HX30 3599693  6732-81-8062  40.10/67.97mm 6+6 blades Billet/milling/aluminum 2618 compressor wheel for Komatsu /ELITE /4BTA 3802908/3592110/3592111/3592112
3.Size:
Nose diameter:14.10mm
Inducer:40.10mm
exducer:67.97mm
Tip height:4.40mm
Superback:5.01mm
  bore size :7.00mm
bore type:through
Overall height:34.73mm
Cutback:0.0
Trailing Angle:45 degree
Blade height:25.08mm
Splitter height:17.60mm
Sp height angle:2.50
6+6 blades  forward
Fit for OE compressor housing
Tapered tip Angle:0 degree
Application:

3802908
3592110
3592111
3592112
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
