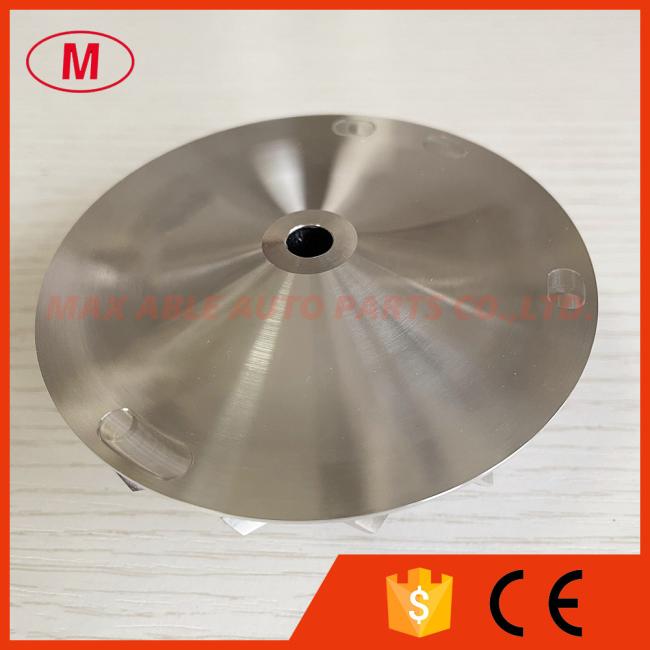

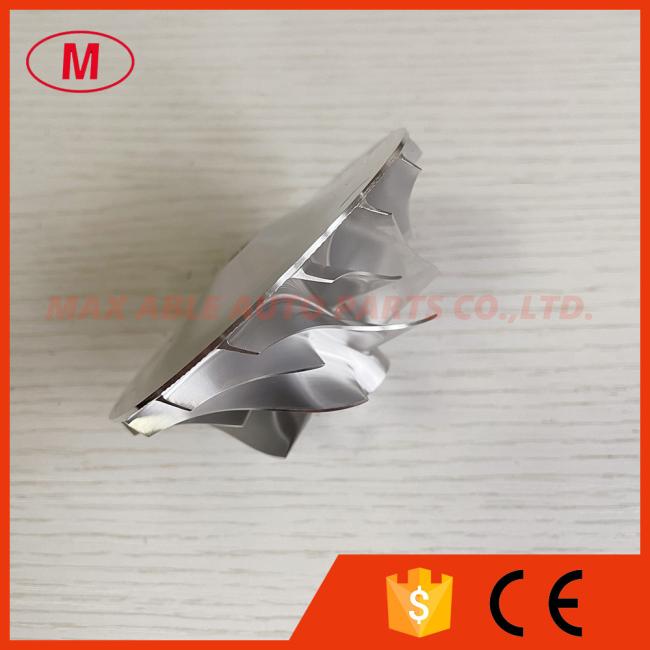

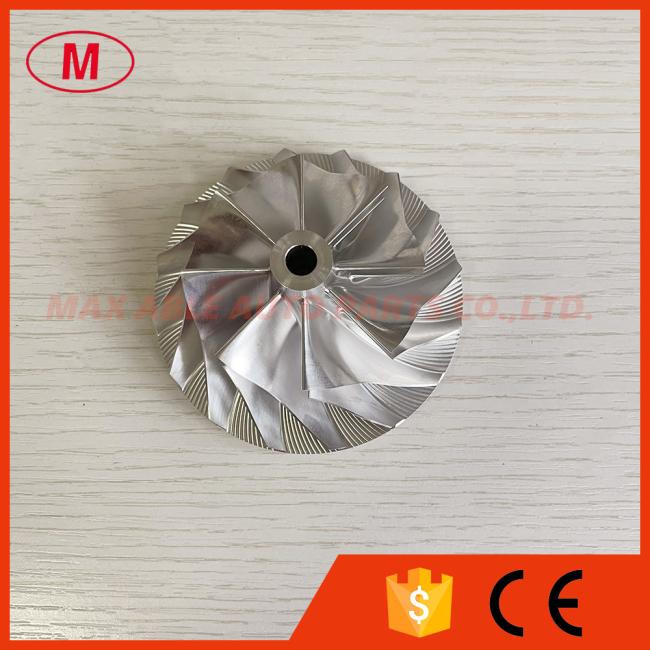

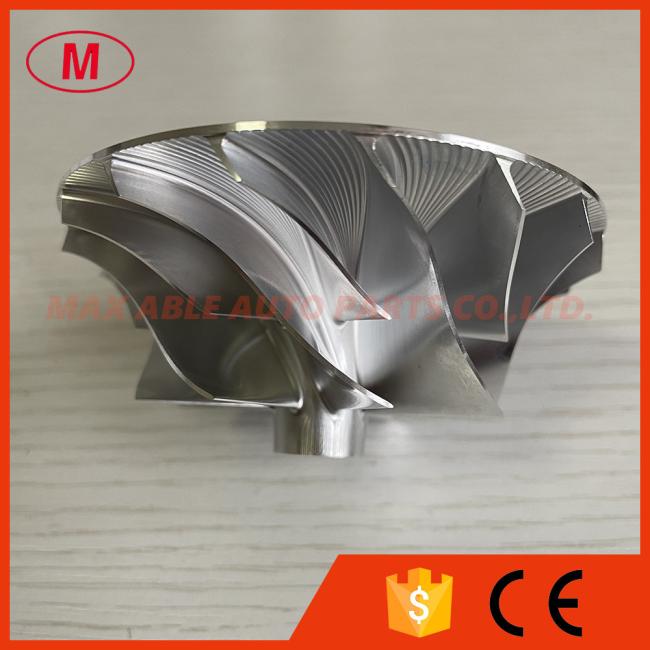

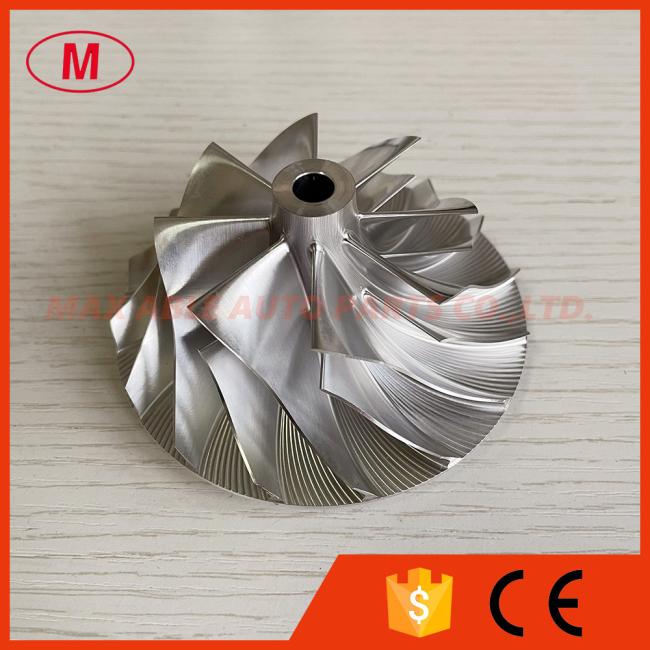

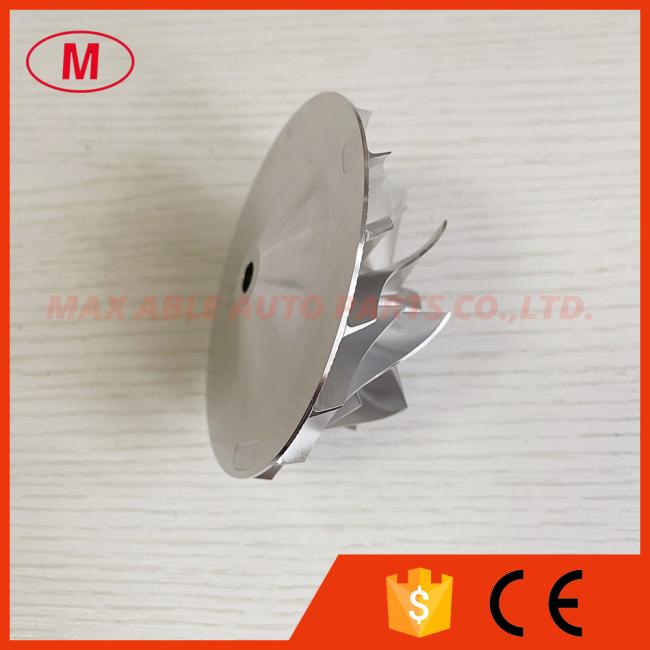

HX40 3599593 8+8 blades 56.00/83.03mm turbo milling/aluminum 2618/billet compressor wheel for 3534921/4035626/3532494

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:HX40 forward
2.HX40 3599593 8+8 blades 56.00/83.03mm turbo milling/aluminum 2618/billet compressor wheel for 3534921/4035626/3532494/3597501/1994-1998 Cummins Manual Transmissions Cummins / Dodge 5.9L
3.Size:
Nose diameter:14.00mm
Inducer:56.00mm
exducer:83.03mm
Tip height:6.30mm
Superback:5.01mm
bore size :7.00mm
Overall height:39.86mm
Cutback:0.0
Trailing Angle:60
Splitter height:17.85mm
SP height angle:-7.50
Blade height:28.28mm
8+8 blades forward
Fit for OE compressor housing
Tapered tip Angle:0 degree
Application:
3534921
4035626
3532494
3597501

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
