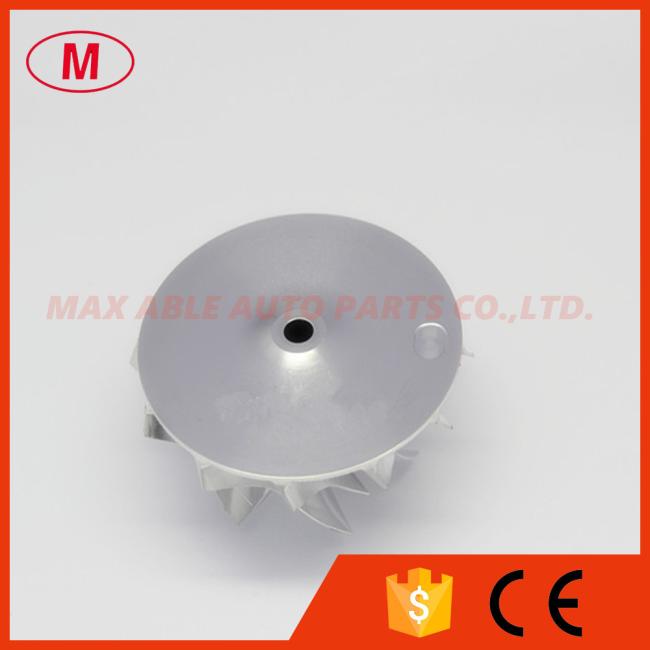

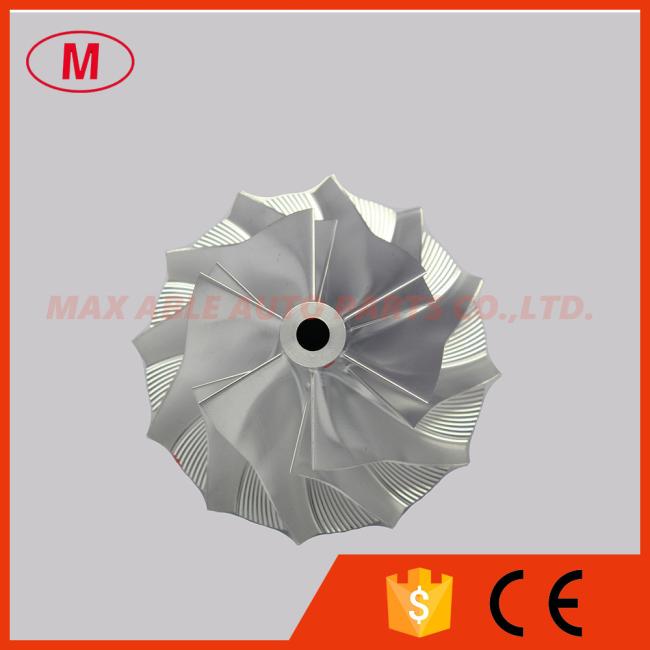

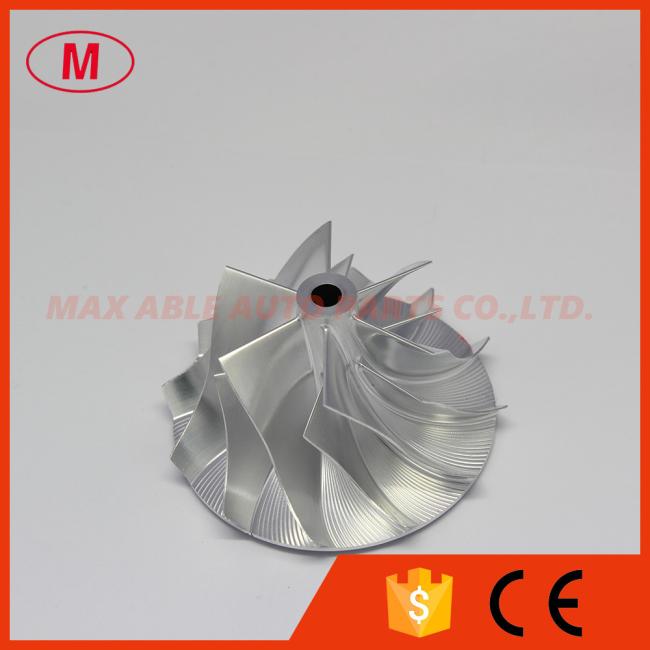

RHF5H 40.40/56.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel for VB7/VB9

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1.Model:RHF5H forward
2.RHF5H 40.40/56.00mm 6+6 blades high performance turbo Billet/milling/aluminum 2618 compressor wheel for VB7/VB9/17201-58060/17201-58070
3.Size:
Nose diameter:10.11mm
Inducer:40.40mm
exducer:56.00mm
Tapered tip exducer:60.25mm
Tip height:4.68mm
Superback:1.50mm
bore size :5.10mm
Overall height:28.30mm
Cutback:3.0
Trailing Angle:55
Blades height:24.88mm
Splitter height:16.85mm
Sp height angle:-5.00
6+6 blades
forward rotation
It is for OE compressor housing
Tapered tip Angle:30 degree

4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
