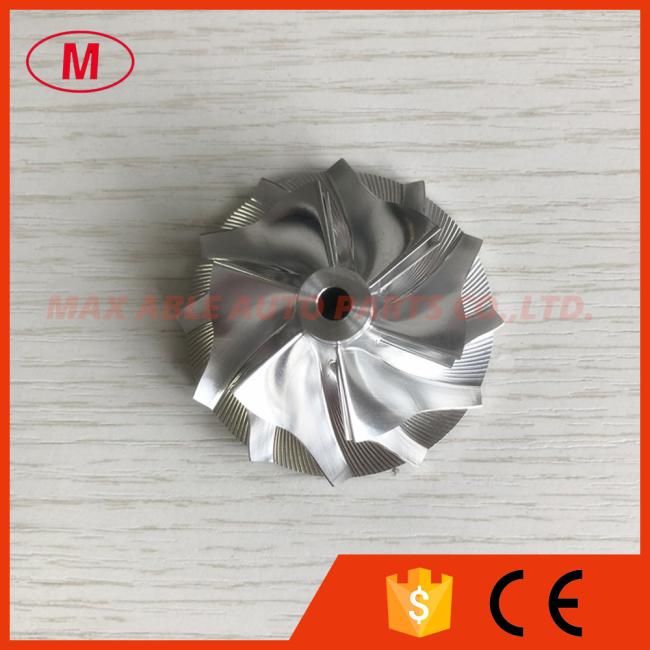

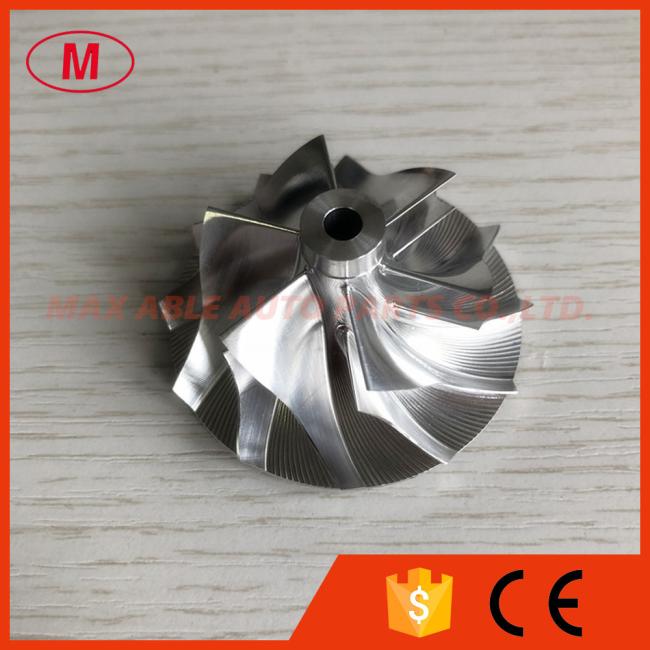

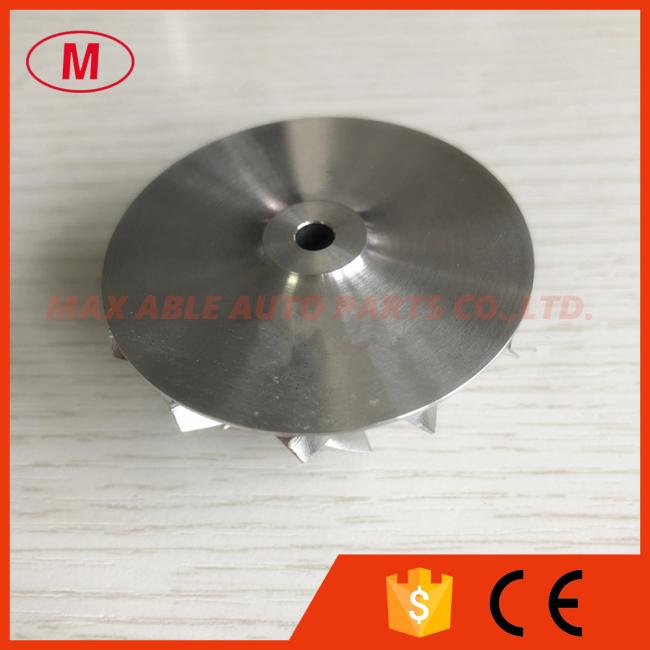

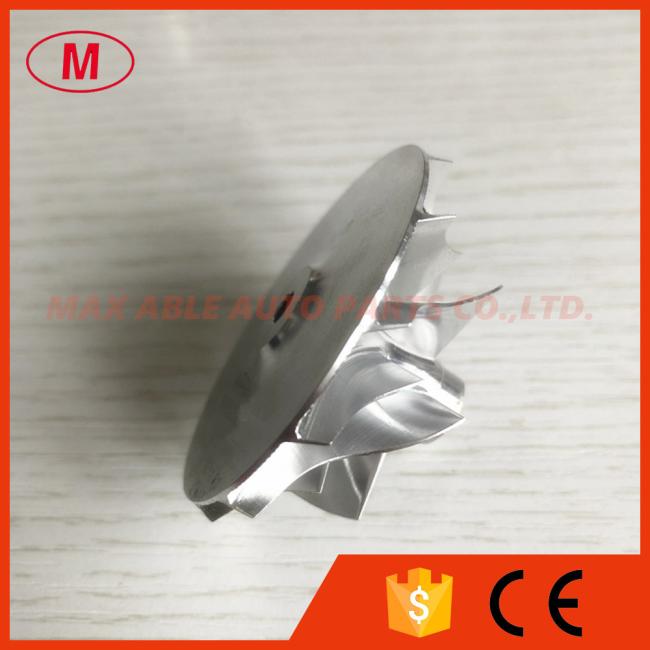

K04 5304-123-2043 37.84/50.96mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 5303-988-0099/102

1. MODEL:K04 forward

2.K04 5304-123-2043 37.84/50.96mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5303-988-0099/102/110/112/117/118/122/142/150/151/162, 5304-988-0057

3.Size:

Nose diamter:10.74mm

inducer:37.84mm

Exduder:50.96mm

Tapered tip exducer:53.00mm

Tip height:4.14mm

Superback:1.80mm

Overall height:25.70mm

bore size :4.61mm

bore type:through

Trailing Angle:45

Cutback:0.0

Blades height:18.20mm

Splitter height:11.50mm

SP Height angle:-5.20

6+6 blades

forward rotation

Fit for OE compressor housing

Tapered tip Angle:18 degree

Forward rotation

Application:

5303-988-0099

5303-988-102

5303-988-110

5303-988-112

5303-988-117

5303-988-118

5303-988-122

5303-988-142

5303-988-150

5303-988-151

5303-988-162

5304-988-0057

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced

The more models we also have.
