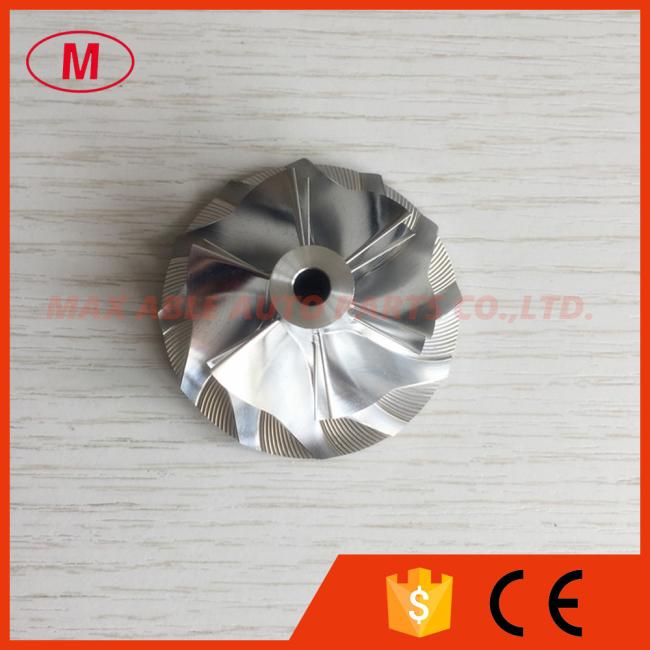

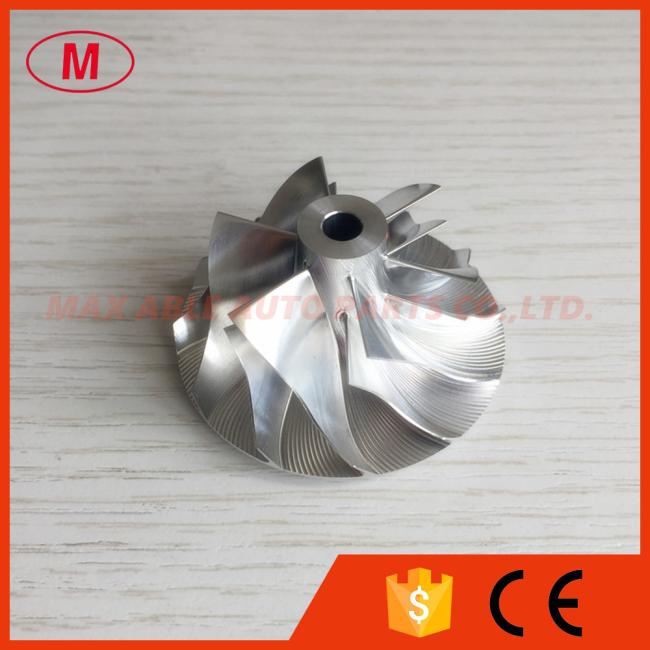

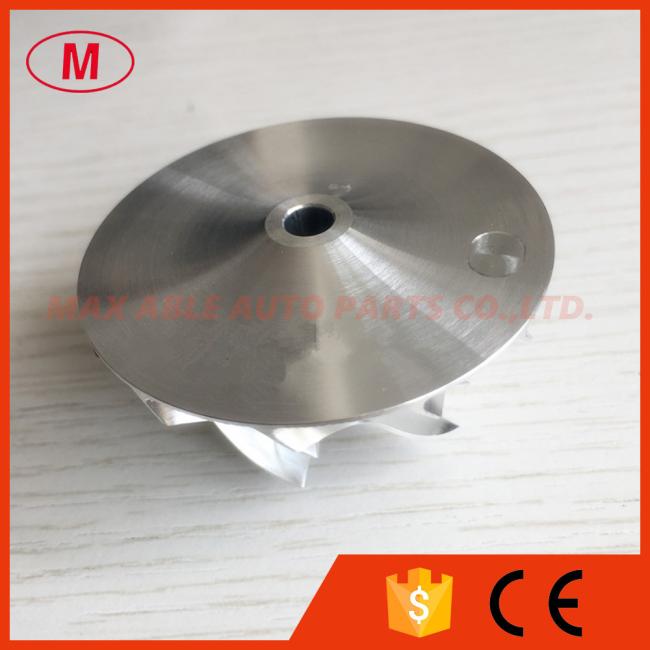

GT15-25 6+6 blades 702489-0001/5/4 36.39/49.00mm turbo milling/aluminum 2618/billet compressor wheel for 717478/716213

1. MODEL:GT15-25 forward

2.GT15-25 6+6 blades 702489-0001/5/4 36.39/49.00mm turbo billet/milling/aluminum 2618 compressor wheel for 717478/716213/716665

3.Size:

Nose diameter:11.77mm

inducer:36.39mm

Exduder:49.00mm

Tip height:3.88mm

Superback:2.40mm

Overall height:24.89mm

bore size :5.08mm

bore type:through

Trailing Angle:45 degree

Cutback:0.0

SP Height angle:-6.50mm

Blades height:19.02mm

Splitter height:13.75mm

Tapered tip Angle:0 degree

6+6 blades

Forward rotation

Fit for OE compressor housing

Application:

717478

716213

716665

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

ALL the billet compressor wheels have been balanced
