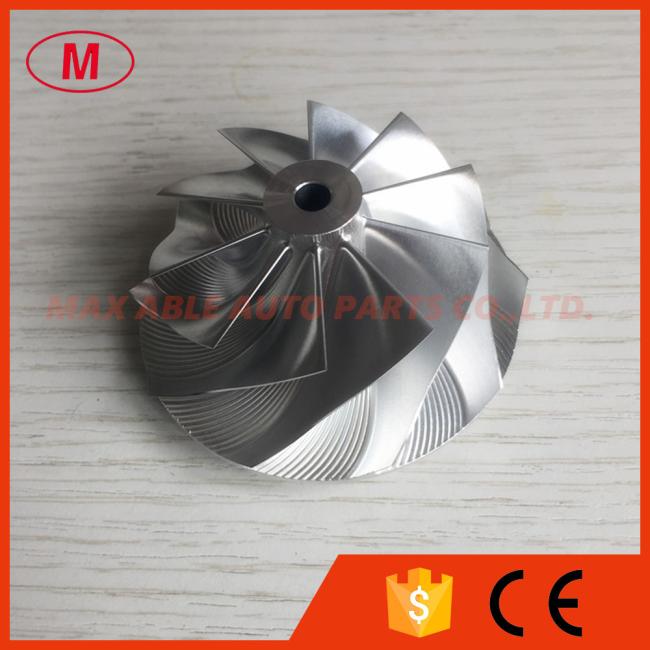

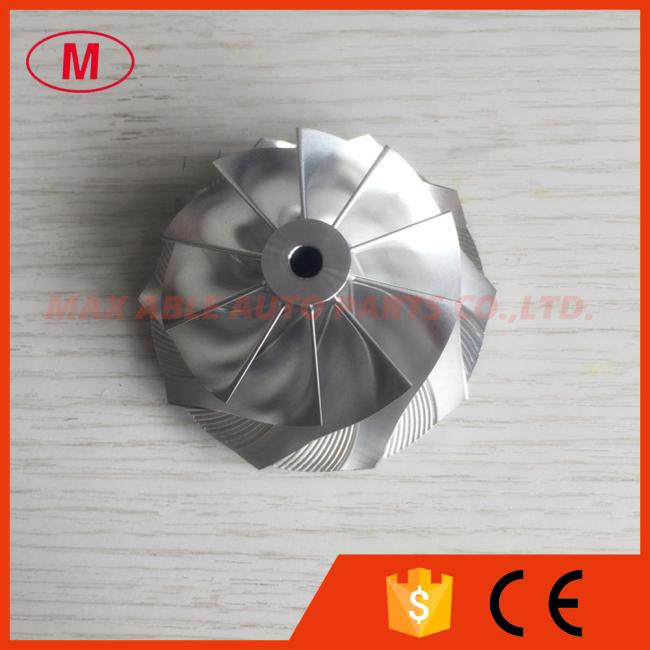

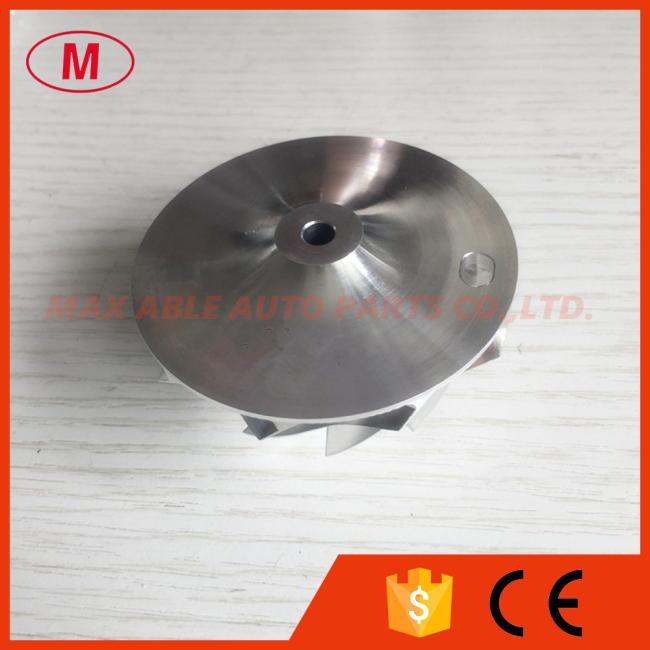

GT15-25 reverse 49.60/63.00mm 10+0 blades 824678-0001 milling/aluminum 2618/billet compressor wheel for 834142-5005 TBW0

1. MODEL:GT15-25 reverse

2.GT15-25 reverse 49.60/63.00mm 10+0 blades 824678-0001 billet/milling/aluminum 2618 compressor wheel for 834142-5005 TBW0005R Focus RS 2016

3.Size:

Nose diameter:13.95mm

inducer:49.60mm

Exduder:63.00mm

Tapered tip exducer:65.21mm

Tip height:5.43mm

Superback:5.10mm

Overall height:32.42mm

bore size :5.08mm

bore type:through

Trailing Angle:40 degree

Cutback:6.5mm

Sp height Angle:0.00

Splitter height:0.00mm

Blades height:24.25mm

Tapered tip Angle:14 degree

10+0 blades

Reverse rotation

It is FIT for OE compresssor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

All the billet compressor wheels have been balanced.
