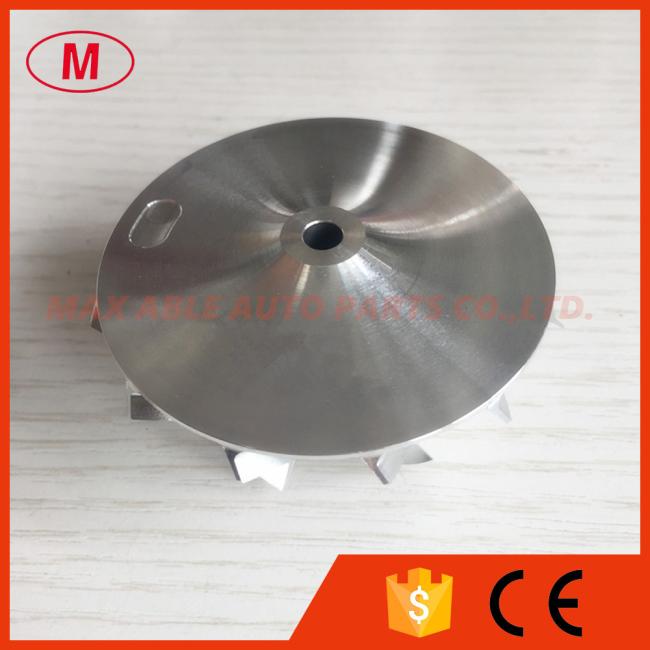

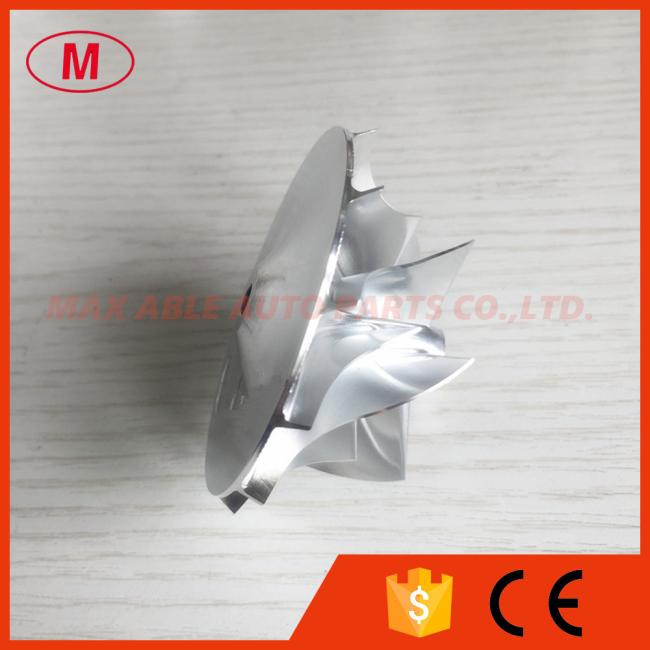

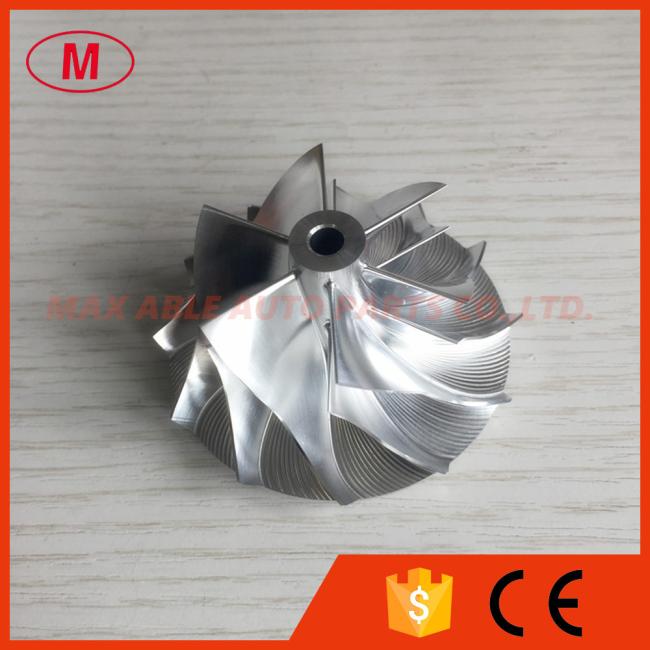

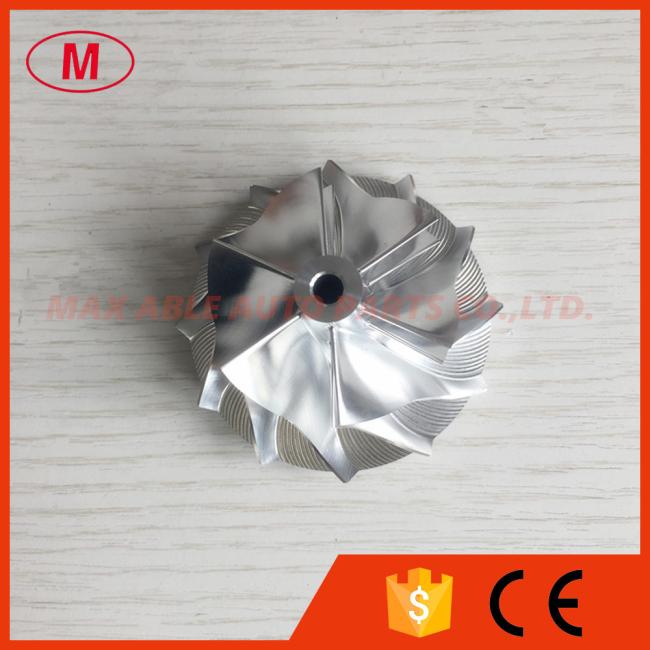

GT15-25 44.39/60.01mm 6+6 Blades 784369-0002/787571-0002 high performance milling/aluminum 2618/billet compressor wheel

1. MODEL:GT15-25 forward

2.GT15-25 44.39/60.01mm 6+6 Blades 784369-0002/787571-0002 high performance billet/milling/aluminum 2618 compressor wheel for AUDI Q7/ VW Touareg/Mercedes ML350/GL350/S350 758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009

3.Size:

Nose Diameter:11.51mm

inducer:44.39mm

Exduder:60.01mm

Tapered tip exducer:64.20mm

Tip height:4.63mm

Superback:3.79mm

Overall height:32.41mm

bore size :5.08mm

bore type:through

Trailing angle:60 degree

Cutback:0.0mm

SP height angle:-4.00

Splitter height:16.95mm

Blades height:26.02mm

Forward rotation

6+6 blades

Tapered tip angle:30 degree

It is for OE compressor housing

Application:

758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024, 765985-0001, 765985-0003, 765985-0001, 765985-0003, 765985-0005, 765985-0006, 765985-0008, 765985-0010, 802774-0004, 802774-0005, 769909-0009, 769909-0010, 776470-0001, 776470-0003, 769909-0010, 776470-0001, 769909-0009

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

ALL the billet compressor wheels have been balanced

The more models we also have.
