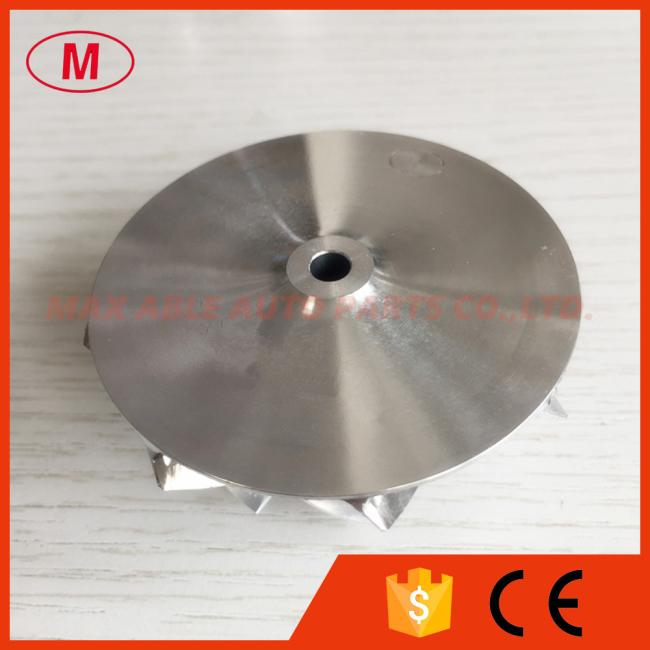

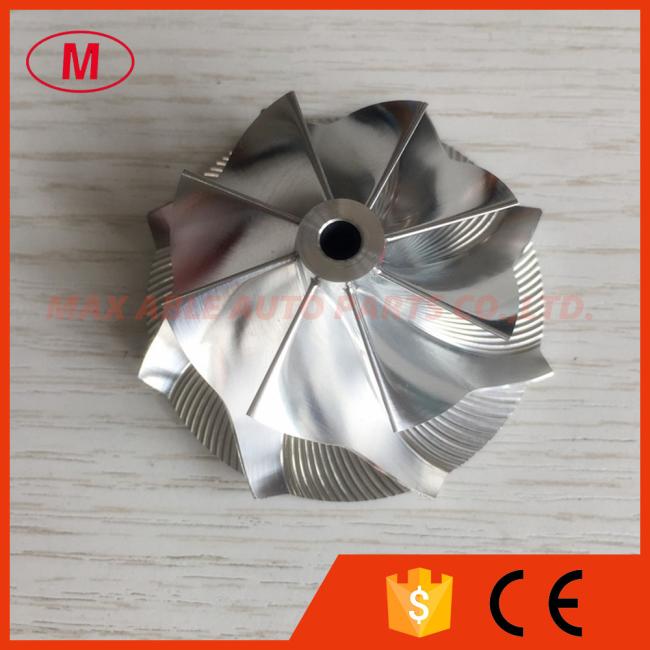

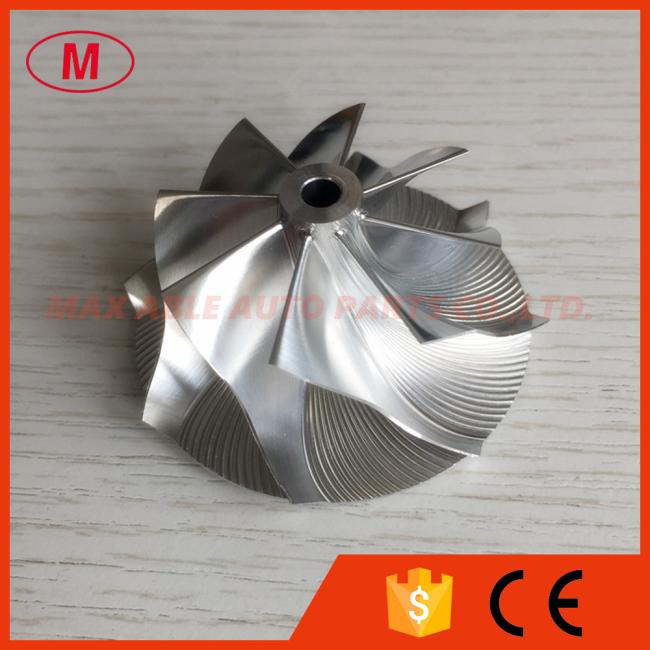

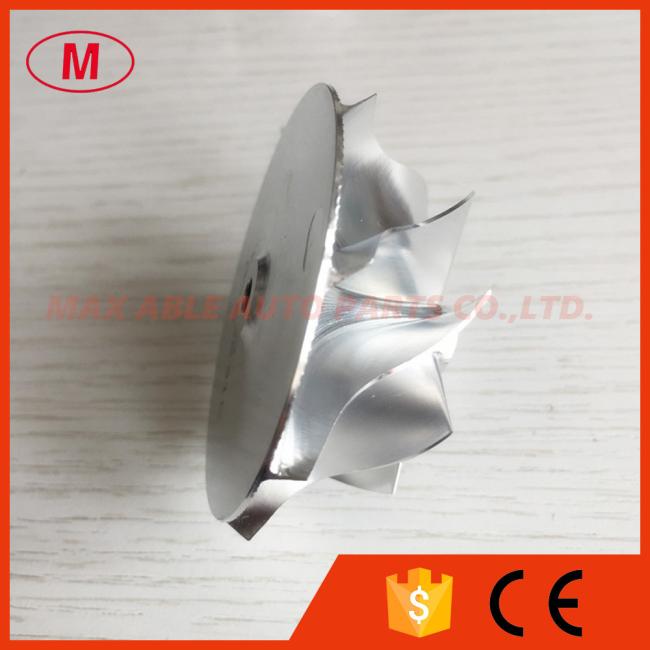

K04 43.03/56.08mm 5304-123-2007 8+0 blades high performane milling/aluminum 2618/billet compressor wheel

1.Model:K04 forward
2.K04 43.03/56.08mm 5304-123-2007 8+0 blades high performance billet/milling/aluminum 2618 compressor wheel for 5304-970-0054/0035/0043/0045/0051

3.SIZE:

Nose Diameter:9.90mm

inducer:43.03mm

Exducer:56.08mm

Tapered tip exducer:60.04mm

Tip height:4.43mm

Superback:1.80mm

Overall height:27.70mm

bore size :4.61mm

bore type:through

Trailing Angle:45

Cutback:0.0

Blades height:23.62mm

Sp height Angle:0.00

Splitter height:0.00mm

8+0 blades

Forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

4.Good quality and competitive price

5. aluminum 2618/milling/ billet high performance compressor wheel

6.Application:

5304-970-0054

5304-970-0035

5304-970-0043

5304-970-0045

5304-970-0051

7.Please send email to me or talk to me on online ,if you want to know more details.

All the compressro wheels have been balanced.
