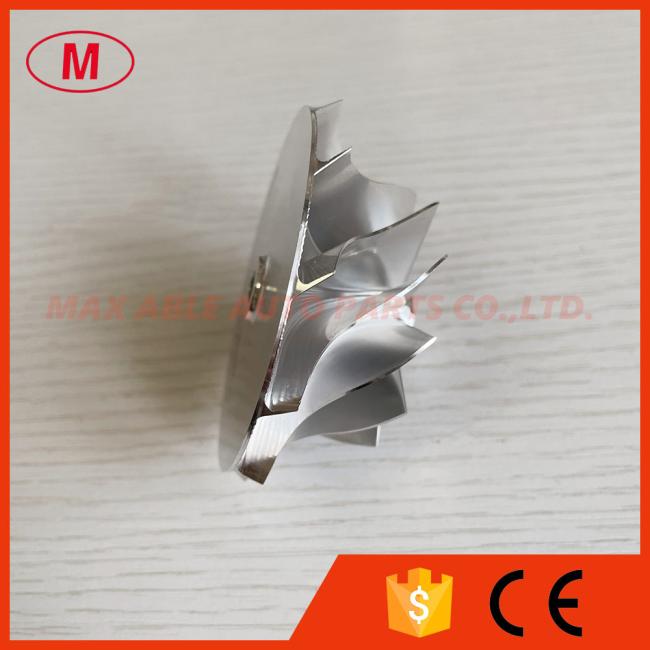

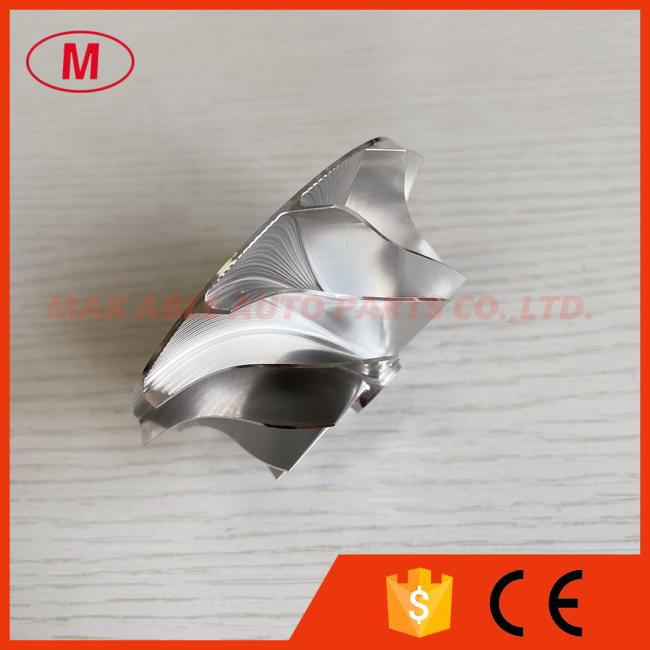

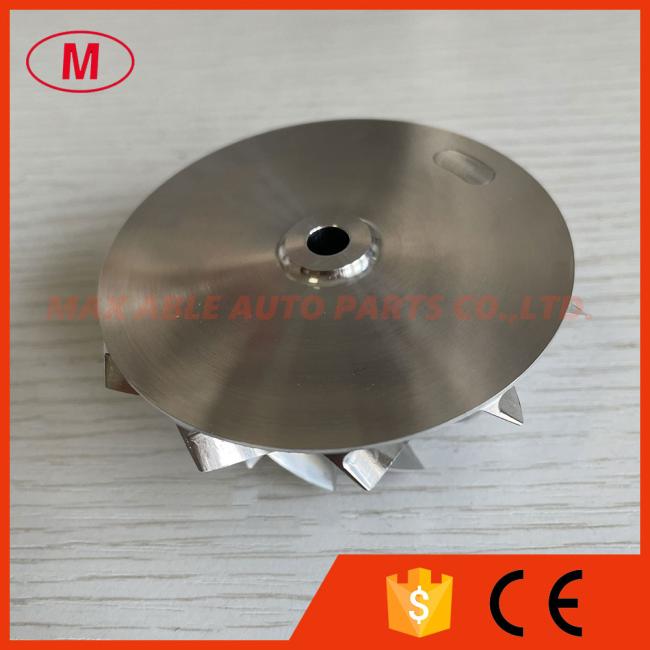

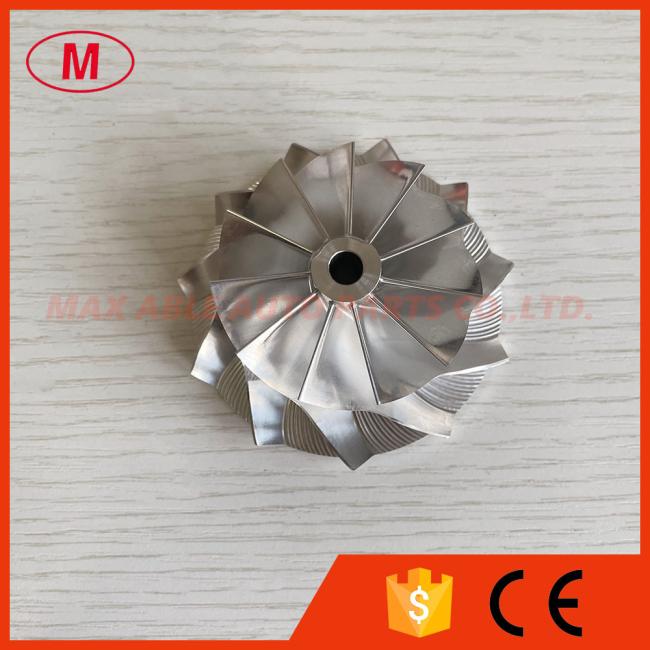

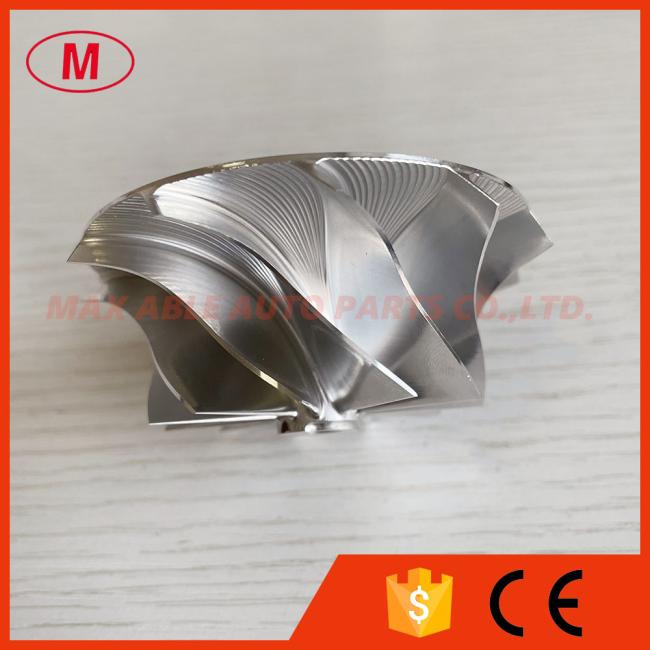

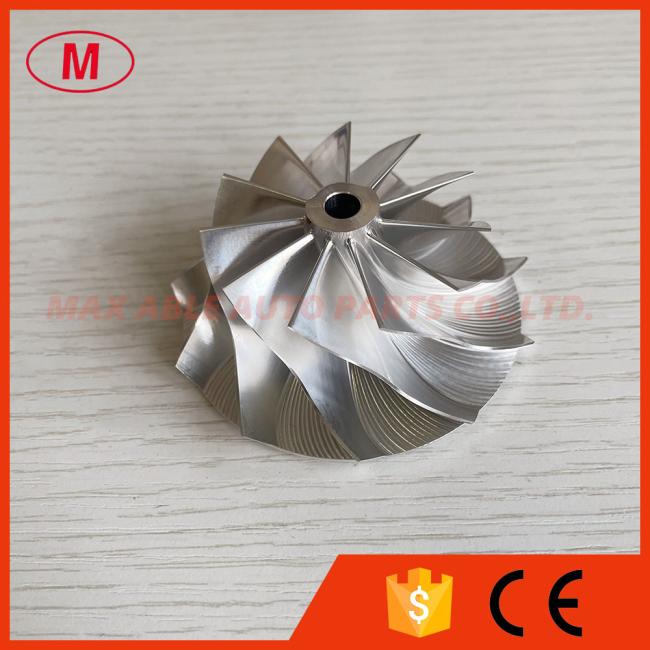

T04B 51.65/69.96mm 11+0 blades 409179-0023 14201-Z5601 Turbo Aluminum 2618/milling/billet compressor wheel

1.T04B 51.65/69.96mm 11+0 blades 409179-0023 14201-Z5601 Turbo Aluminum 2618 /Billet/milling compressor wheel for 409761-0002/465078-0007/465114-0004/465118-0001/465218-0002/465226-0004/465242-0008/465254-0001/465310-0002/465360-0002

2.Size:

Nose Diameter:13.03mm

Inducer:51.65mm

Exducer:69.96mm

Tapered tip exducer:75.17mm

Tip height:5.70mm

Superback:1.68mm

Overall height:31.40mm

Bore size:6.35mm

bore type:through

Trailing angle:50 degree

Cutback:0.0

Sp height angle:0.00

Splitter height:0.00

Blade height:27.40mm

11+0 blades

forward rotation

Tapered tip angle:29 degree

It is for OE compressor housing

Application:

409761-0002

465078-0007

465114-0004

465118-0001

465218-0002

465226-0004

465242-0008

465254-0001

465310-0002

465360-0002

3.If you want more details, please send email to me.We can do all we can to satisfy your needs.

4.High quality and competitive price and good service.

5.We can produce as your requirement.

all the billet wheels have been balanced.
