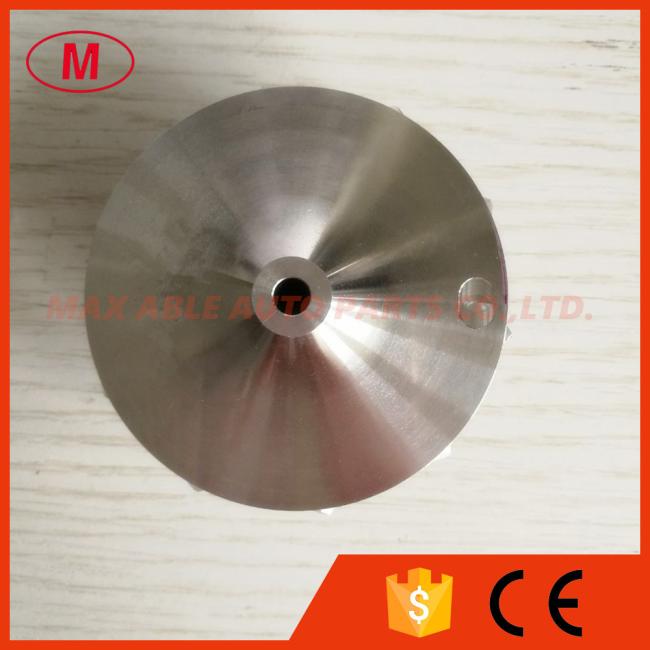

GT15-25 44.50/60.01mm 720915-0004 5+5 blades high performance turbo milling/aluminum 2618/billet compressor wheel

1.Model:GT15-25 forward

2.GT15-25 44.50/60.01mm 5+5 blades 720915-0004 high performance turbo billet/milling/aluminum 2618 compressor wheel for BMW 330D/530D/730D/X5/X3 725364-0004, 725364-0005, 725364-0006, 725364-0007, 725364-0009, 725364-0012, 725364-0015, 725364-0018, 725364-0021, 728989-0001, 728989-0003, 728989-0007, 728989-0009, 728989-0010, 728989-0015, 728989-0016, 728989-0018, 742730-0001, 742730-0003, 742730-0004, 742730-0007, 742730-0013, 742730-0015, 742730-0018, 750773-0001, 753392-0001, 753392-0003, 753392-0004, 753392-0006, 753392-0009, 753392-0015
3.Size:

Nose diameter:11.68mm

Inducer:44.50mm

Exducer:60.01mm

Tapered tip exducer:63.66mm

Tip height:4.16mm

Superback:3.79mm

Overall height:32.40mm

Bore size:5.08mm

bore type:through

Trailing angle:60 degree

Cutback:0.0mm

SP height angle:-10.00

Splitter height:18.70mm

Blades height:25.72mm

5+5 blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

Application:

BMW 330D/530D/730D/X5/X3

725364-0004, 725364-0005, 725364-0006, 725364-0007, 725364-0009, 725364-0012, 725364-0015, 725364-0018, 725364-0021, 728989-0001, 728989-0003, 728989-0007, 728989-0009, 728989-0010, 728989-0015, 728989-0016, 728989-0018, 742730-0001, 742730-0003, 742730-0004, 742730-0007, 742730-0013, 742730-0015, 742730-0018, 750773-0001, 753392-0001, 753392-0003, 753392-0004, 753392-0006, 753392-0009, 753392-0015

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

We can produce as your requirements.

All the compressor wheels have been balanced.
