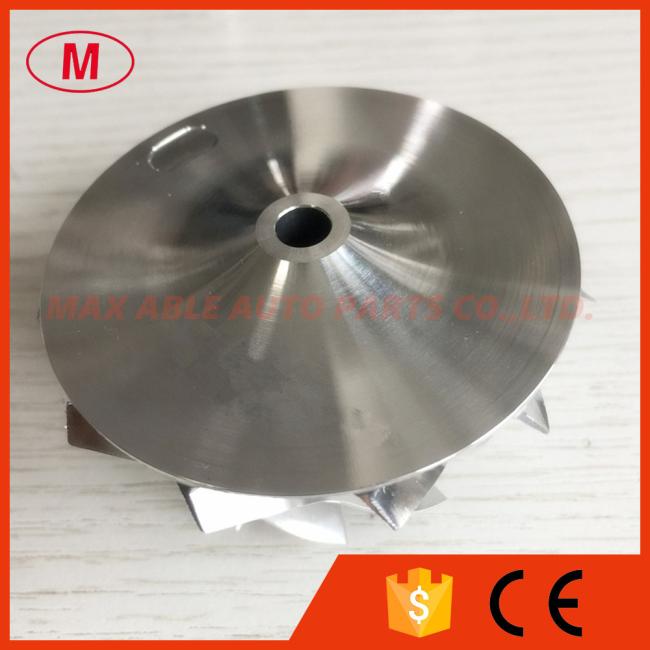

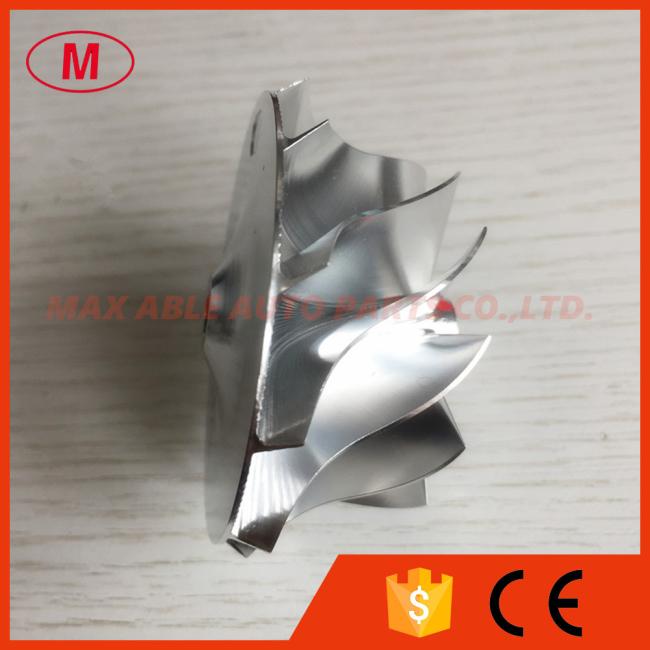

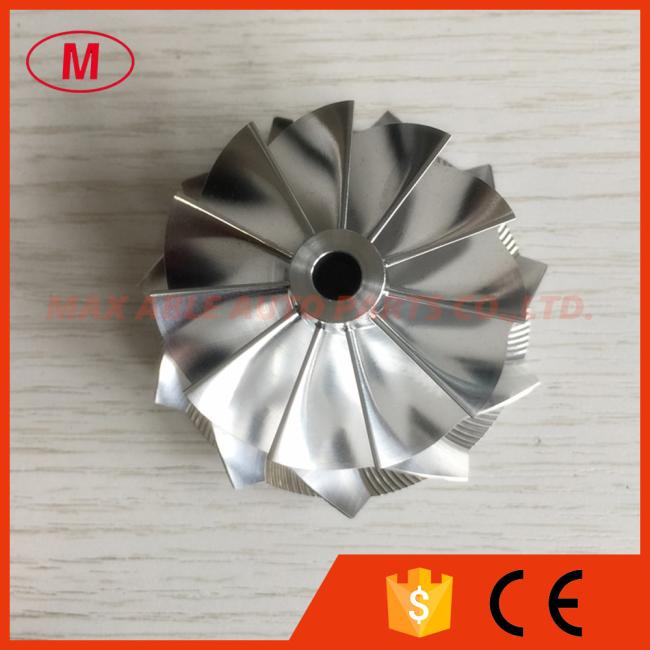

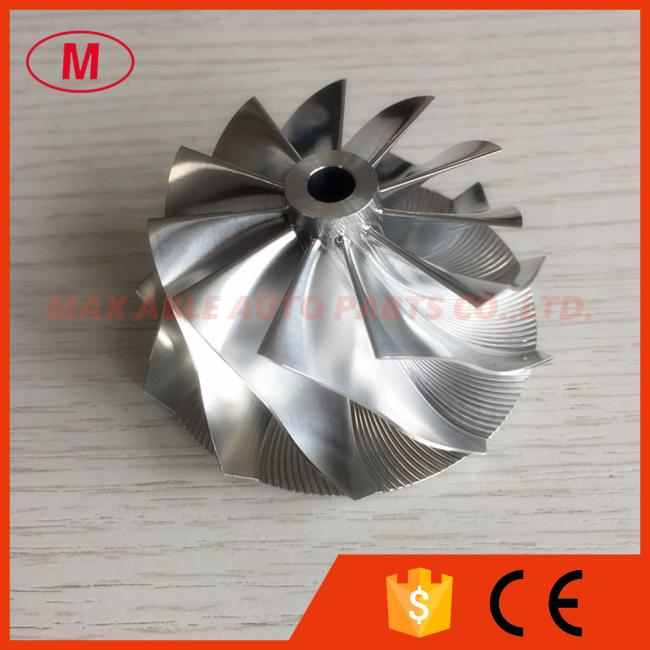

RHF5HB 11+0 blades high performance 48.50/59.94mm turbo turbocharger aluminum 2618/milling/billet compressor wheel

1. MODEL:RHF5HB forward

2.RHF5HB 11+0 blades high performance 48.50/59.94mm turbo turbocharger aluminum 2618/Billet/milling compressor wheel for VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52 Upgrade

3.Size:

Nose diameter:12.02mm

Inducer:48.50mm

exducer:59.94mm

Tapered tip exducer:64.92mm

Tip height :5.72mm

superback:3.71mm

Overall height:34.00mm

Bore size:6.10mm

bore type:through

Trailing Angle:60 degree

Cutback:0.0

SP height angle:0.00

Splitter height:0.00mm

Blades height:27.05mm

11+0 blades

foward rotation

Tapered tip Angle: 30 degree

It is for custom size ,please check carefully before buying.

Application:

VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52 Upgrade

5.Any questions please send email to me.

All the compressor wheel have been balanced.

We can produce as your requirement.
