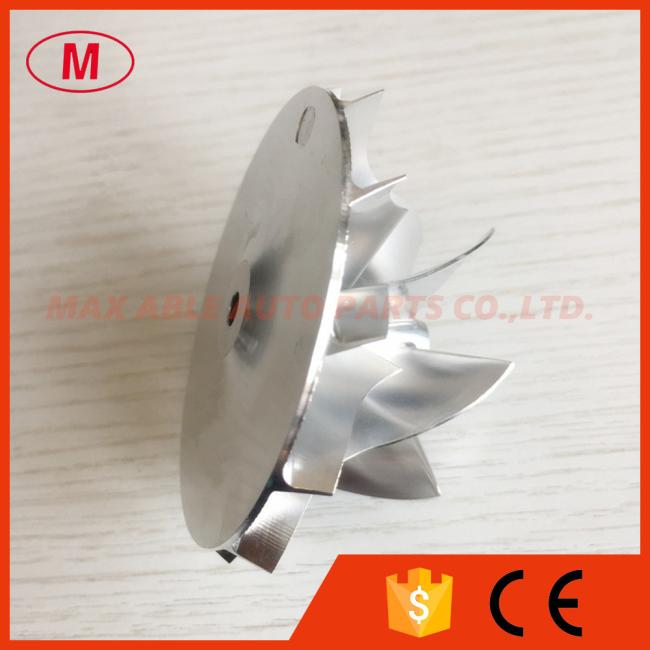

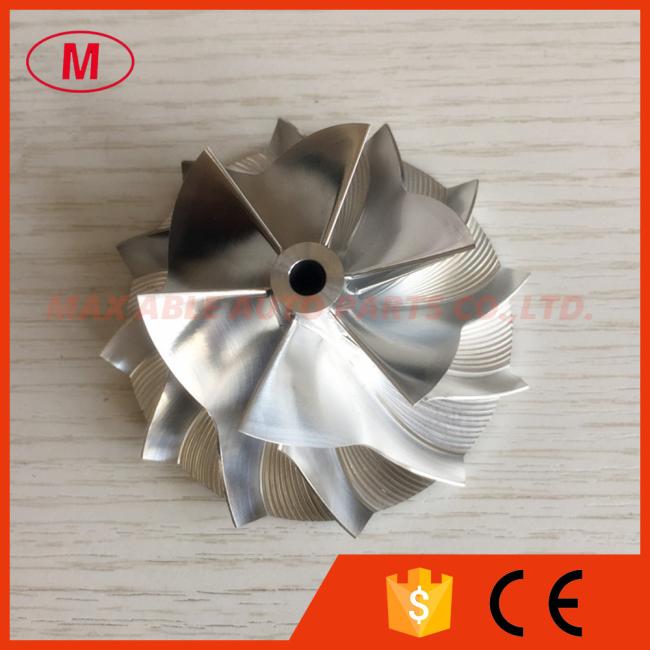

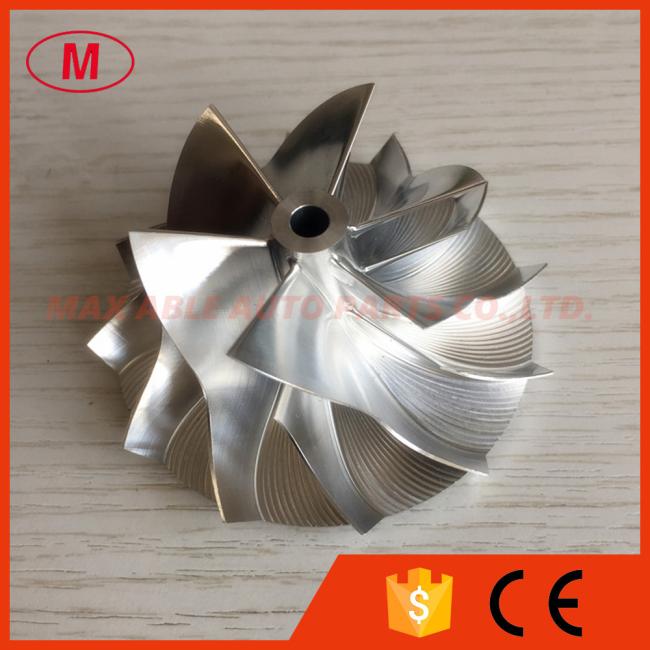

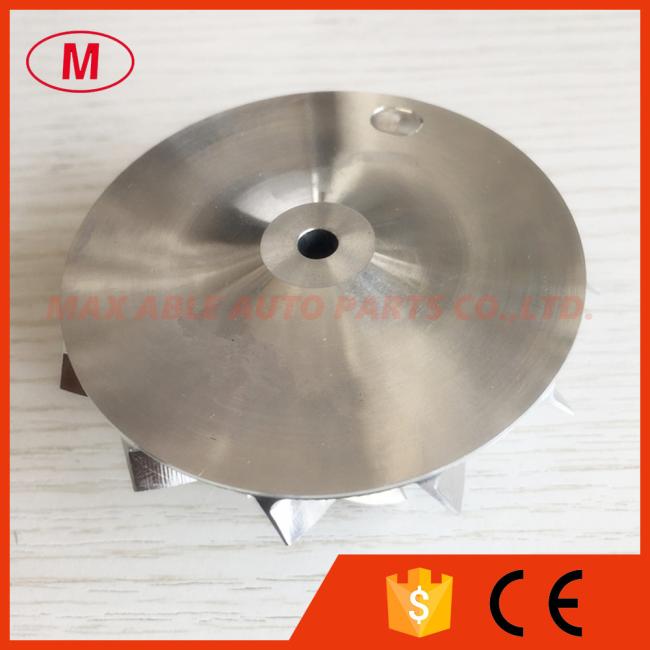

TD04HL 45.00/64.89mm 6+6 blades high performance turbo milling/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1.Model:TD04HL FORWARD

2.TD04HL 45.00/64.89mm 6+6 blades high performance turbo billet/milling compressor wheel

3.Size:

Nose diamter:10.05mm

inducer:45.00mm

Exduder:64.89mm

Tapered tip exducer:70.86mm

Tip height:6.28mm

Superback:1.85mm

​Overall height:29.00mm

bore size :5.00mm

Trailing Angle:60

Cutback:-19.3

SP height angle:-8.50

Splitter height:15.00

Blade height:30.17mm

Tapered tip angle:29.5 degree

It is custom size,please check carefully before buying.

6+6 blades

Forward rotation

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.



The more models we also have.
