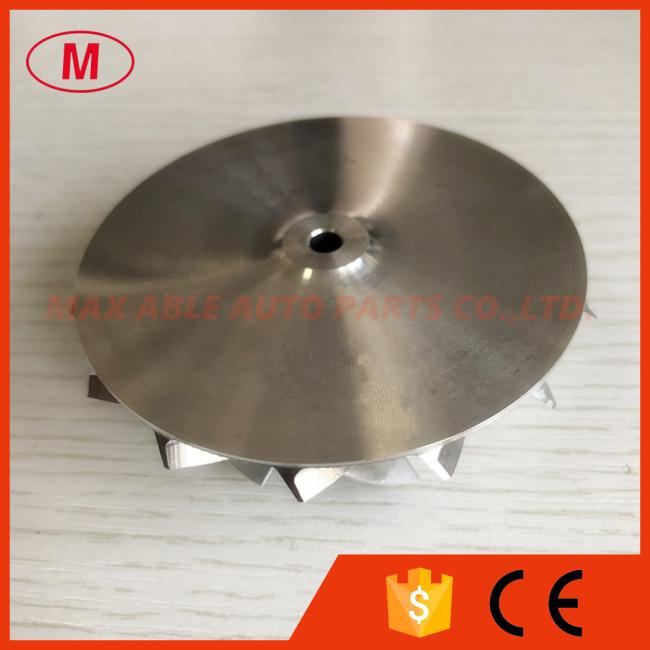

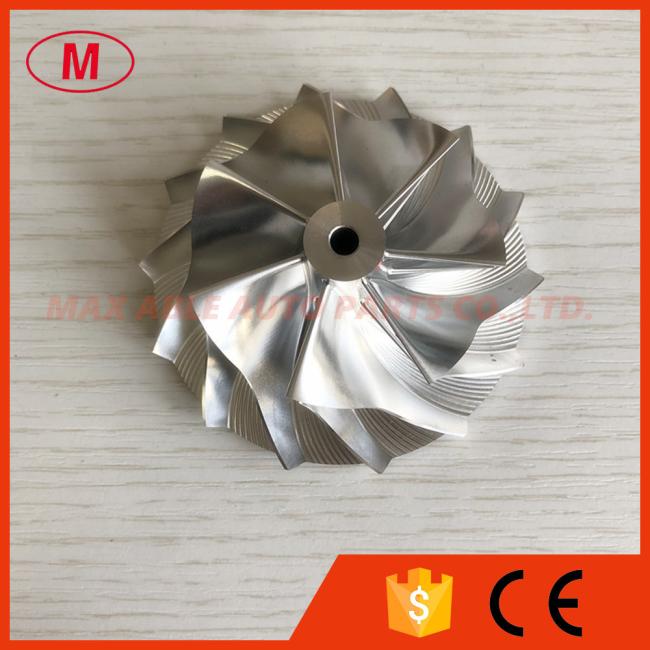

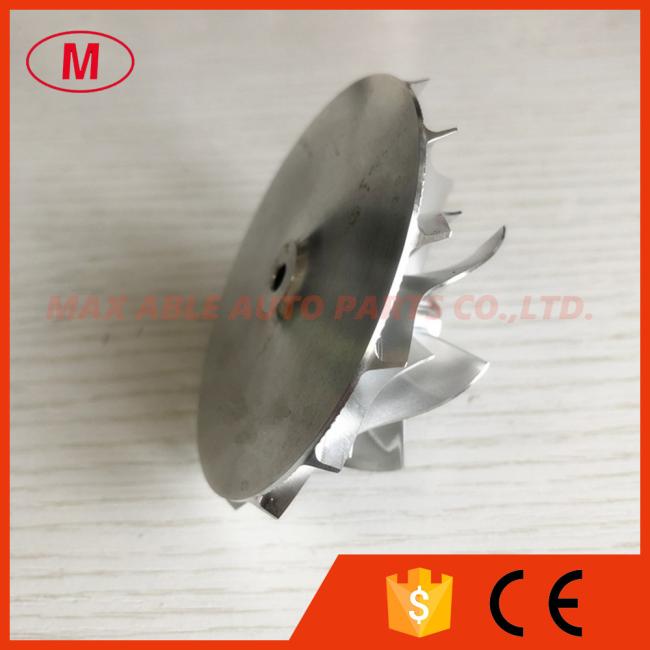

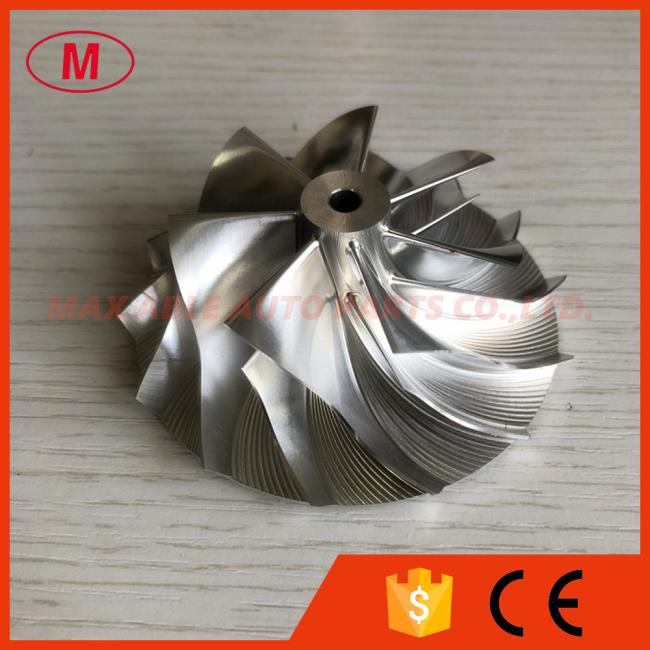

K04 52.00/71.00mm 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel
Price:
Negotiable
MOQ:
1PC
Delivery Time:
3-7 days
Brand:
NO
Product Description
1. MODEL:K04 forward
2.K04 52.00/71.00mm 7+7 blades high performance turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.00mm
Inducer:52.00mm
exducer:71.00mm
Tapered tio exducer:75.16mm
Tip height:4.60mm
Superback:1.80mm
bore size :4.61mm
bore type:through
Overall height:28.00mm
Cutback:0.0
Trailing Angle:60
Blades height:23.70mm
sp Height angle:-1.50
Splitter height:15.00mm
7+7 blades
forward rotation
It is for custom size ,please check carefully before buying.
Tapered tip Angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
