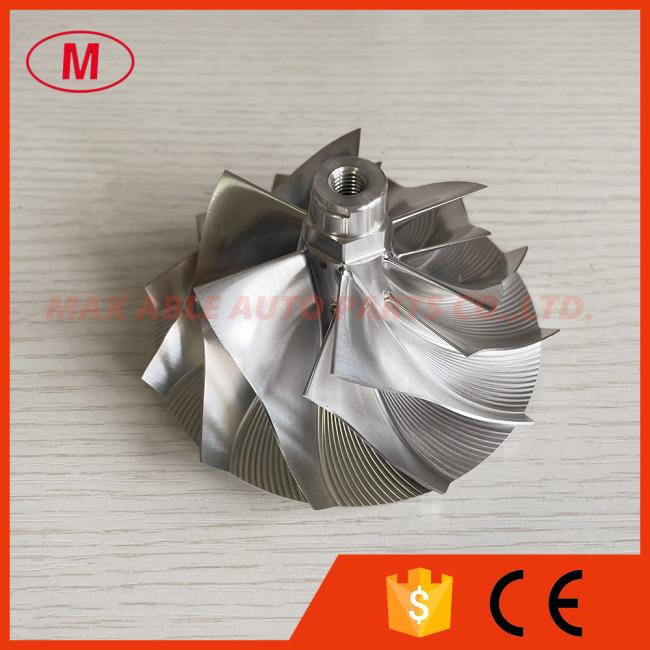

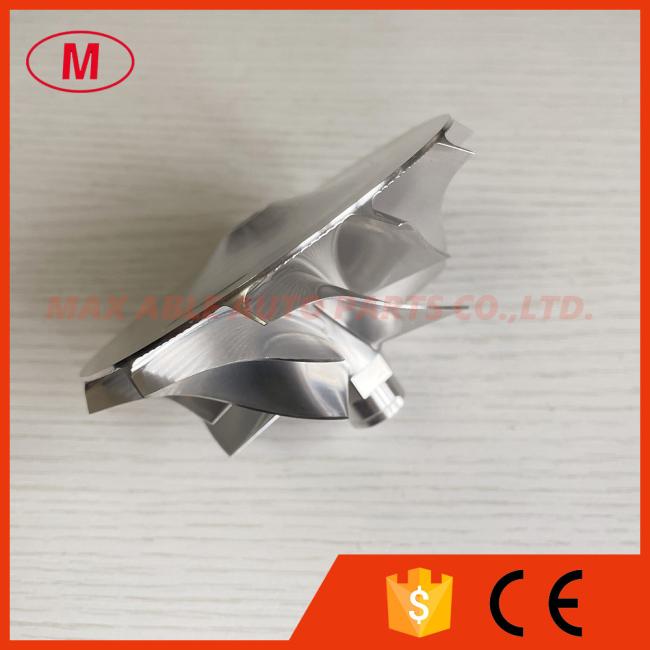

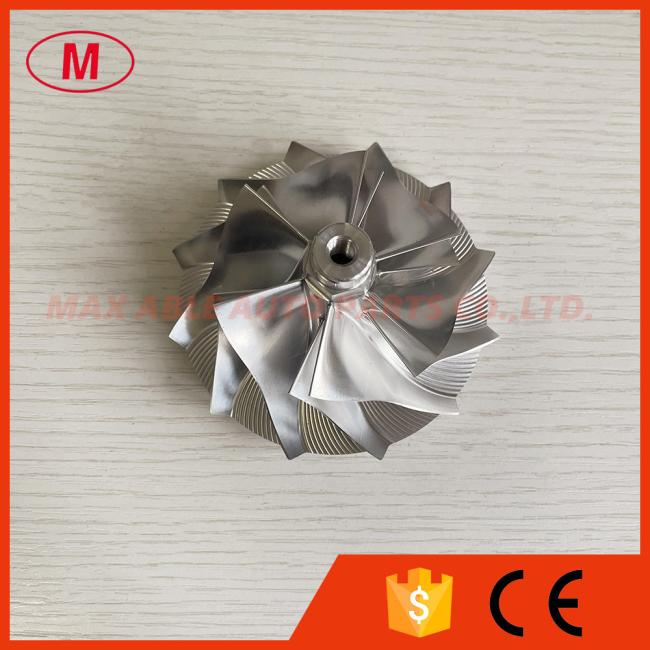

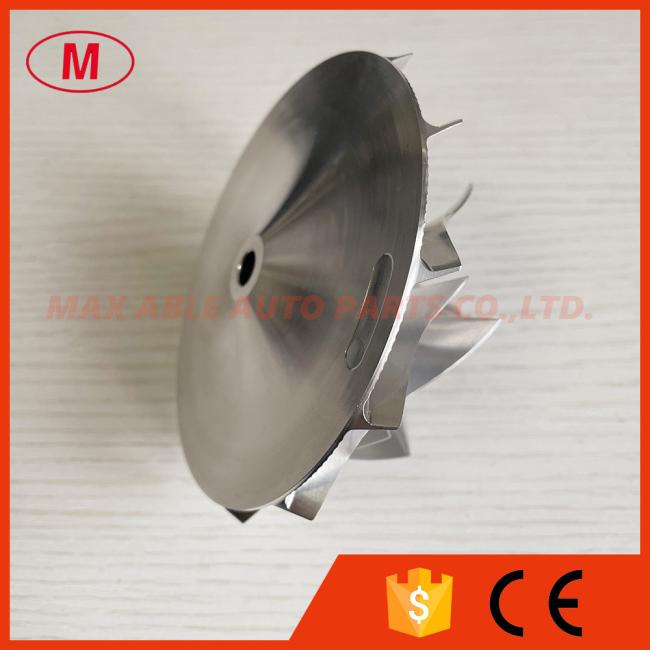

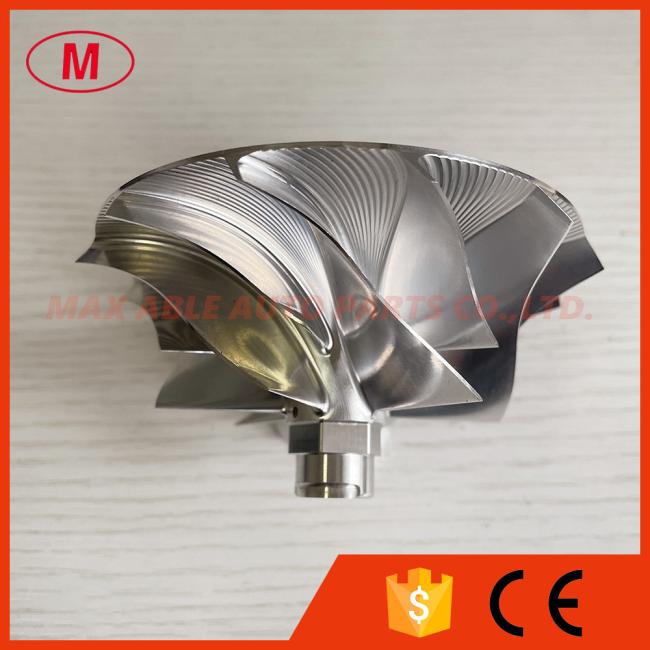

GT3794 67.77/94.00mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for CHEVY 6.6L
Price:
Negotiable
MOQ:
1PC
Delivery Time:
3-7 days
Brand:
NO
Product Description
1. MODEL:GT3794 forward2.GT3794 67.77/94.00mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel for CHEVY 6.6L PowerMax turbo
Stage 1: 773540-5001s AVNT™
Stage 2: 773542-5001s AVNT™
3.Size:
Nose diameter:19.06mm
Inducer:67.77mm
exducer:94.00mm
Tapered tip exducer:100.50mm
Tip height:6.63mm
Superback:5.55mm
bore size :7.48mm
Overall height:53.50mm
Cutback:0.0
Trailing Angle:60 degree
Sp height angle:-3.30
Splitter height:23.05mm
Blade height:32.71mm
Bore type:Threaded-M7x1.0LHT
6+6 blades forward
Fit for OE compressor housing
Tapered tip Angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
Skype: maxabledieselparts
Wechat/Whatsapp:+86-18018657719
