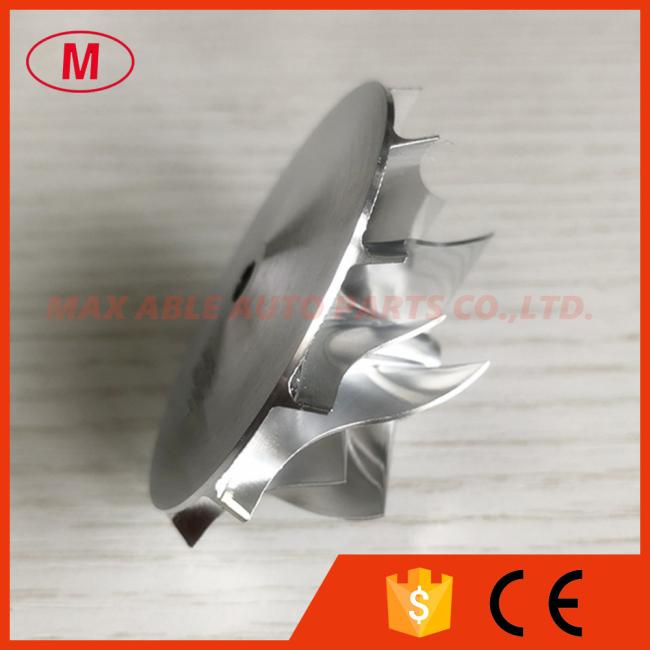

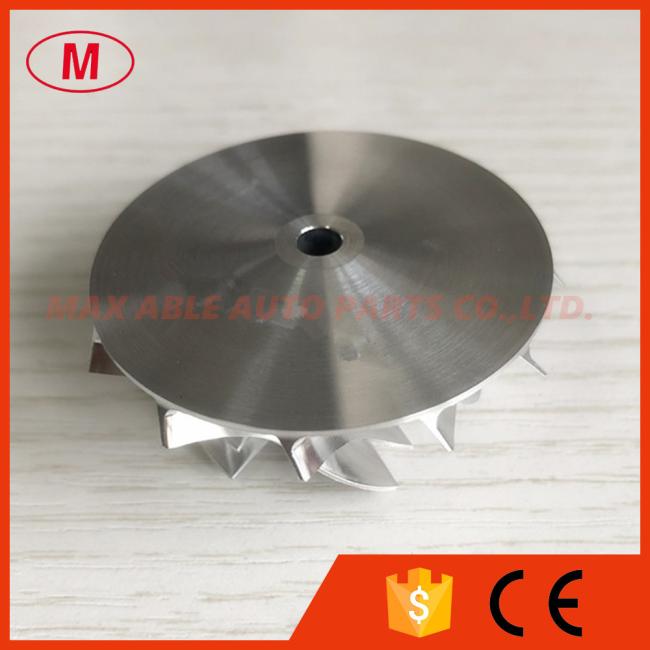

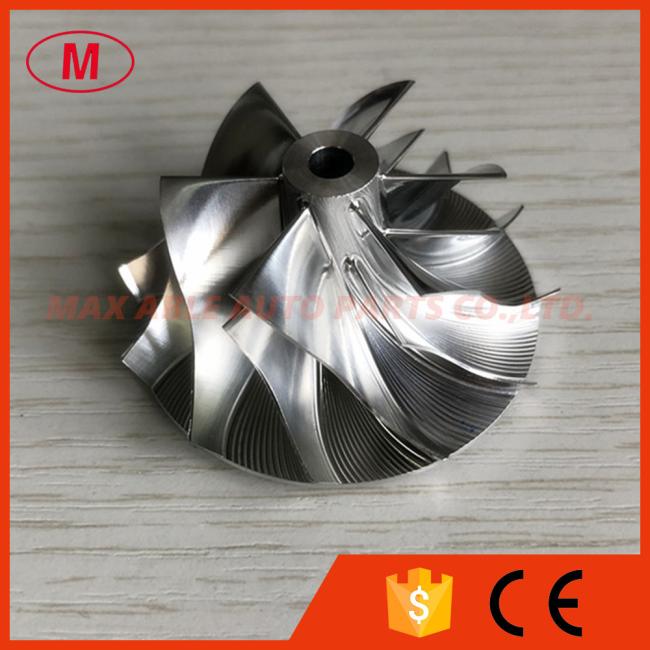

TF035 13T/TF035HL-13TK3-4.0 38.35/51.00mm 6+6 blades high performance aluminum 2618/milling/ Billet compressor wheel

1. MODEL:TF035 13T/TF035HL-13TK3-4.0 forward

2.TF035 13T/TF035HL-13TK3-4.0 38.35/51.00mm 6+6 blades high performance Turbo aluminum 2618/milling/ Billet compressor wheel for 4M42T 49135-03802/ME194015
3.Size:

Nose diameter:10.59mm

Inducer:38.35mm

exducer:51.00mm

Tapered tip exducer:55.26mm

Tip height :4.69mm

superback:1.90mm

Overall height:24.20mm

Bore size:5.00mm

bore type:through

Trailing angle:65 DEGREE

Cutback:0.0

Blades height:20.35mm

Splitter height:14.05mm

SP Height angle:-3.00

6+6 blades

Forward rotation

Tapere tip angle:30 degree

It is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheels have been balanced.

We can produce as your requirement.
