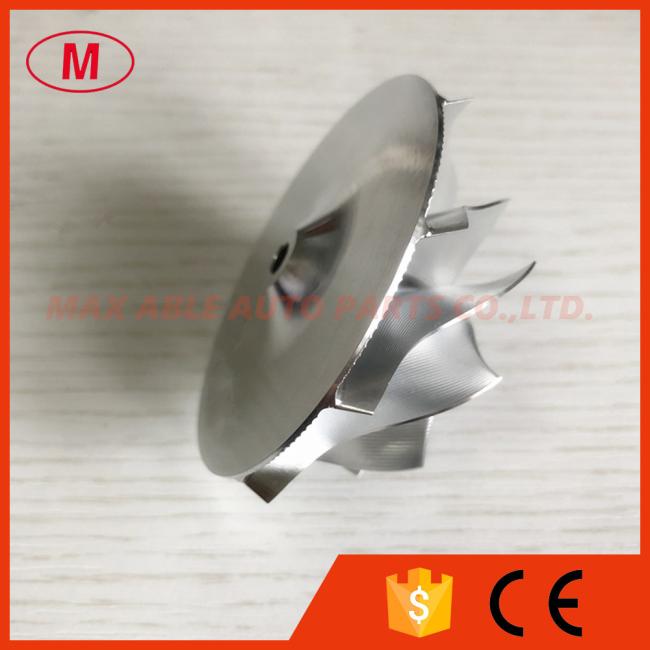

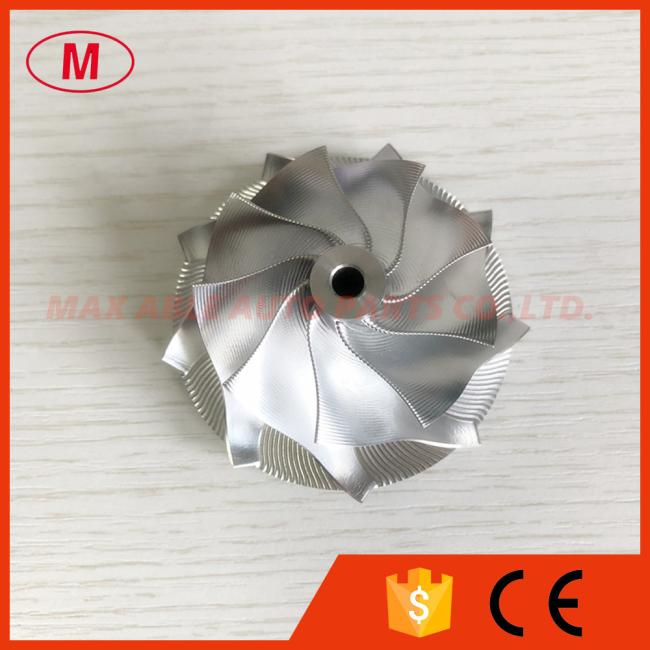

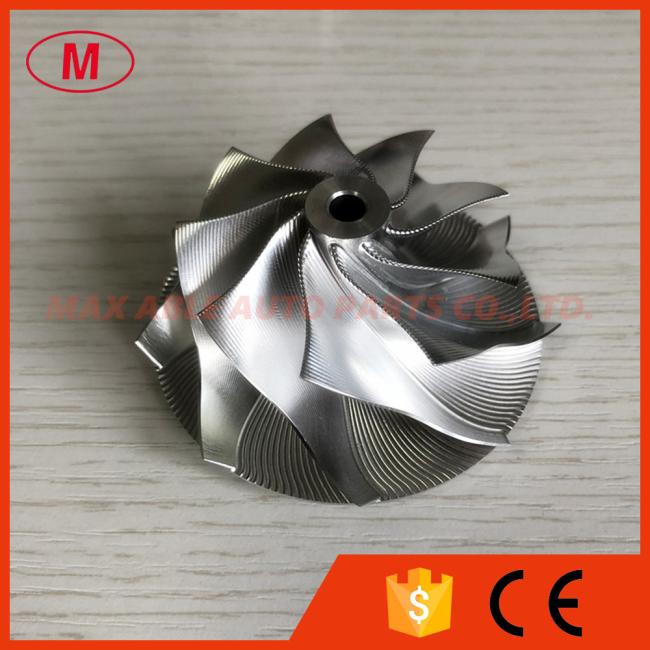

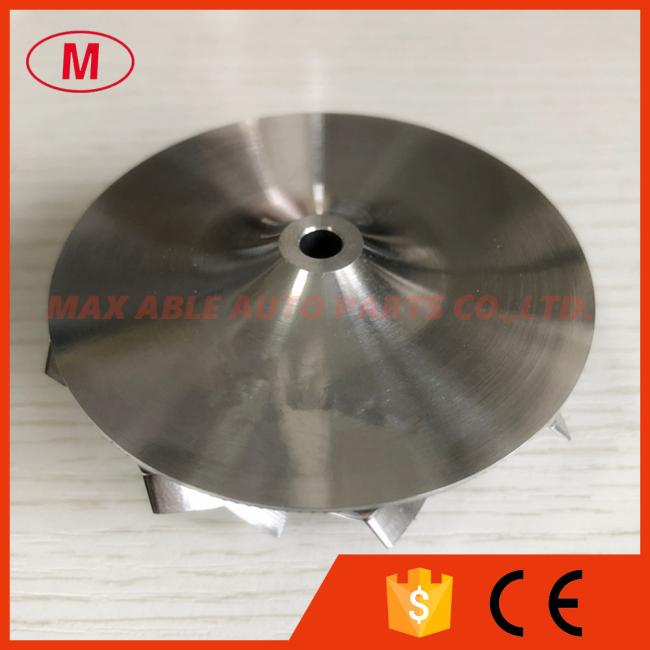

GT15-25 point milling 50.20/65.00mm 9+0 Blades 702549-0008HF V1 high performance aluminum 2618/billet compressor wheel

1.Model:GT15-25 FORWARD

2. GT15-25 point milling 50.20/65.00mm 9+0 Blades 702549-0008HF V1 high performance Snake Curve,Twisted Blade design,turbo billet/aluminum 2618/Milling compressor wheel
3.Size:

Nose diameter:11.98mm

Inducer:50.20mm

Exducer:65.00mm

Tapered tip exducer:69.83mm

Tip height:5.19mm

Trailing angle:60 degree

Superback:3.68mm

Overall height:32.28mm

Bore:5.08mm

bore type:through

Cutback:6.0

SP Height angle:0.00

Blades height:23.30mm

Splitter height:0.00mm

9+0 blades

Tapered tip angle:30 degree

Forward rotation

It is custom size ,please check carefully before buying.

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

6.Application:

702549-0008HF

All the compressor wheels have been balanced.
