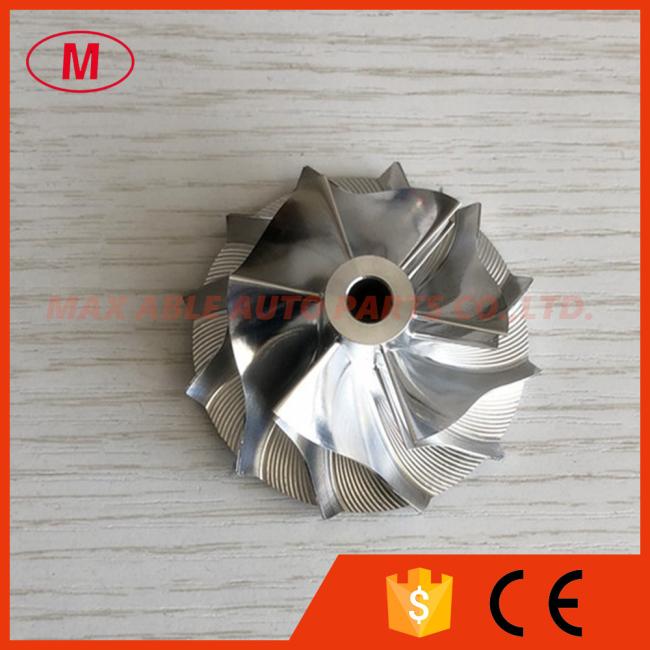

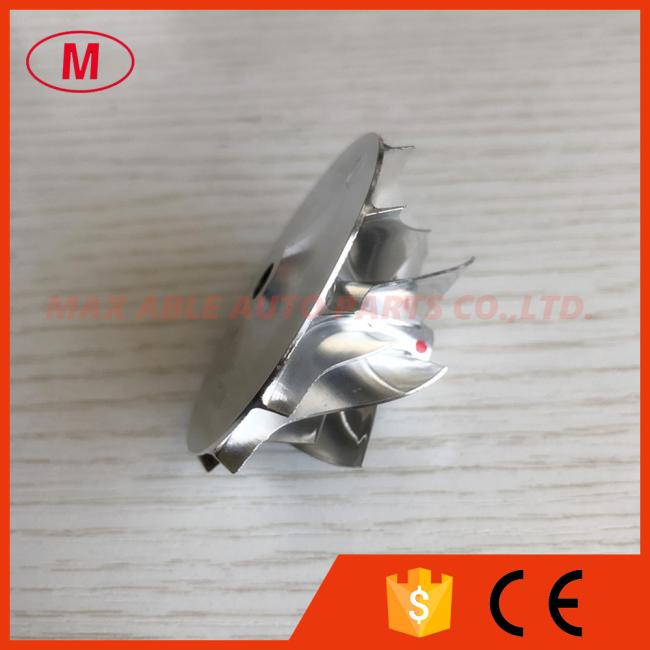

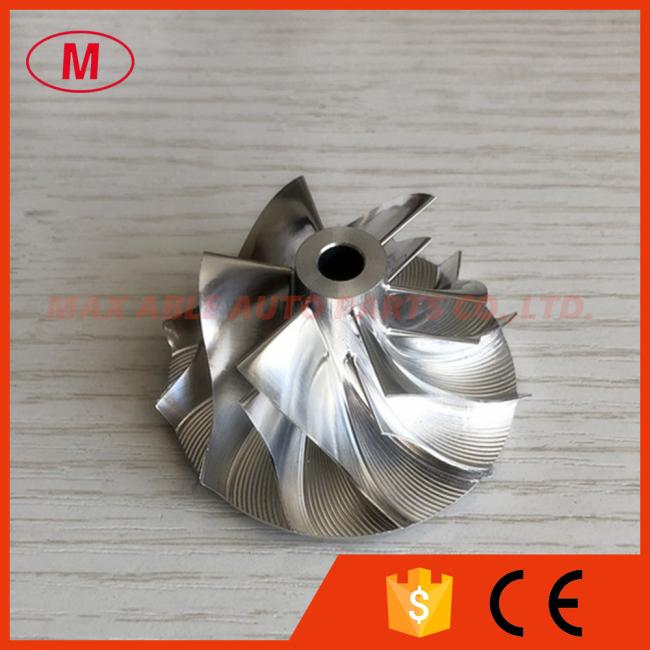

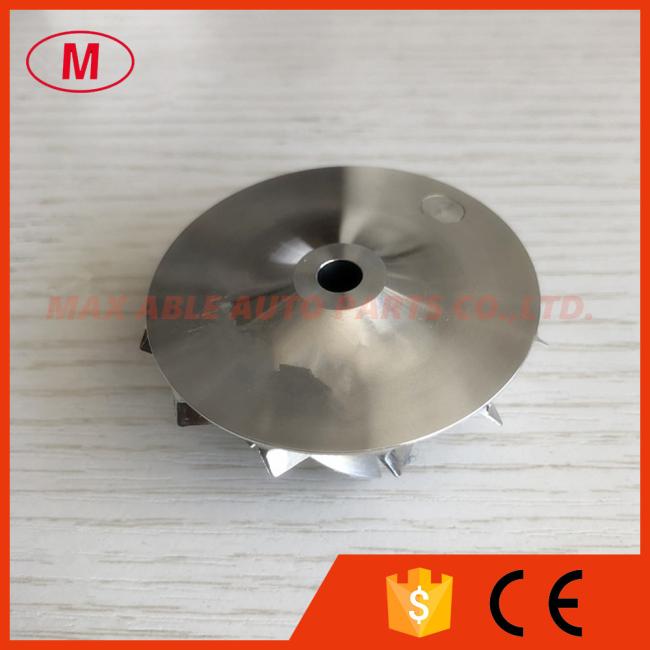

GT25C 6+6 blades 38.69/52.24mm 447449-0010 performance Turbo milling/aluminum 2618/billet compressor wheel for 454110

1. MODEL:GT25C Forward

2.GT25C 6+6 blades 38.69/52.24mm 447449-0010 high performance Turbo Billet/milling/aluminum 2618 compressor wheel for 454110/454127/454145/454156/454169/454184/454193/454203/454207/454224/465447/704152/717123
3.Size:

Nose diameter:12.24mm

Inducer:38.69mm

Exducer:52.24mm

Tapered tip exducer:55.98mm

Tip height:4.24mm

super back:2.35mm

overall height:25.76mm

bore size :5.99mm

bore type:through

Trailing angle:60 degree

Cutback:0.0

Blade height:20.72mm

Sp height angle:0.00

Splitter height:13.25mm

6+6 blades

Tapered tip angle:30 degree

It is for OE compressor housing

4.Application:

454110

454127

454145

454156

454169

454184

454193

454203

454207

454224

465447

704152

717123

5.High quality and competitive price.

6.Any questions please send email to me.

All the compressor wheels have been balanced.
