TD05H 16G reverse 48.30/68.01mm 49178-01560 6+6 blades high performance high blade slimnose billet compressor wheel

1. MODEL:TD05H 16G REVERSE

2.TD05H 16G reverse 48.30/68.01mm 6+6 blades high performance High Blade Height, Slimnose Billet/milling/aluminum 2618 compressor wheel for 49178-01500, 49178-01510, 49178-01520, 49178-01540, 49178-01550, 49178-01560, 49178-01570, 49178-01580, 49378-01510, 49378-01520, 49378-01530, 49378-01540, 49378-01550, 49378-01560, 49378-01580, 49378-01581

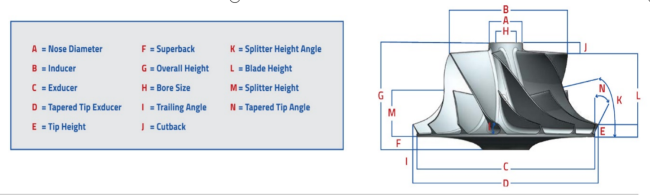

3.Size:

Nose diameter:11.51mm

Inducer:48.30mm

Exducer:68.01mm

Tapered tip exducer:72.18mm

Tip height:4.61mm

Superback:2.90mm

Ovearll height:35.00mm

Bore size:6.50mm

bore type:through

Trailing angle:45 degree

Cutback:0.0

SP Height angle:-2.00

Blades height:28.90mm

Splitter height:19.90mm

6+6 blades

reverse rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheel have been balanced.
