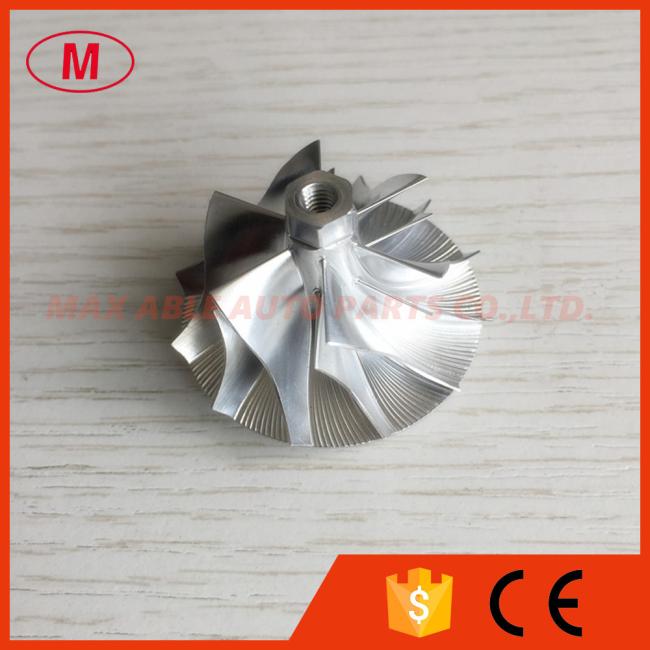

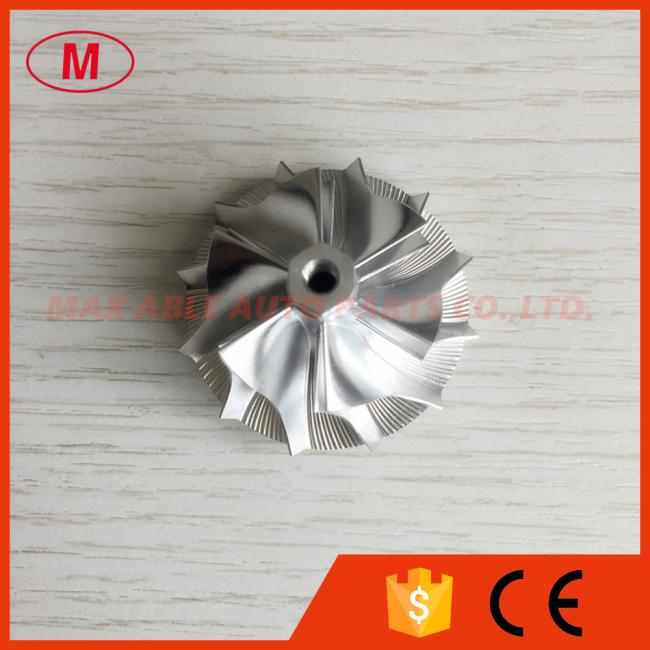

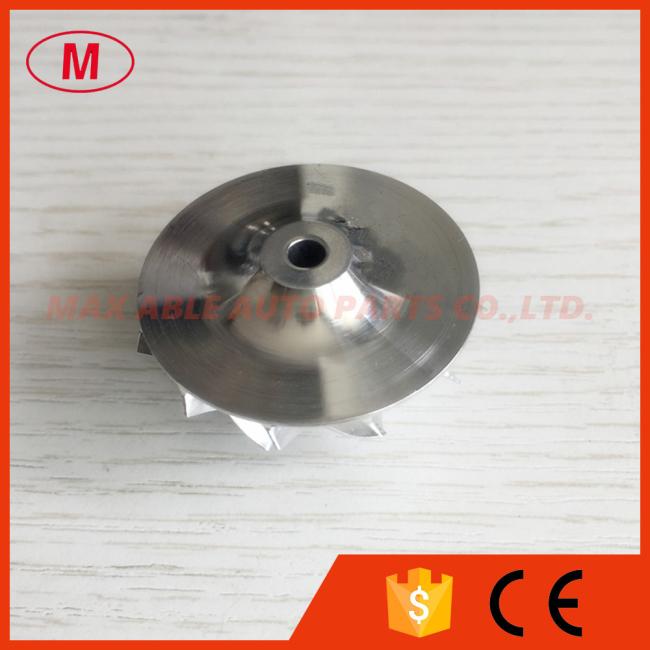

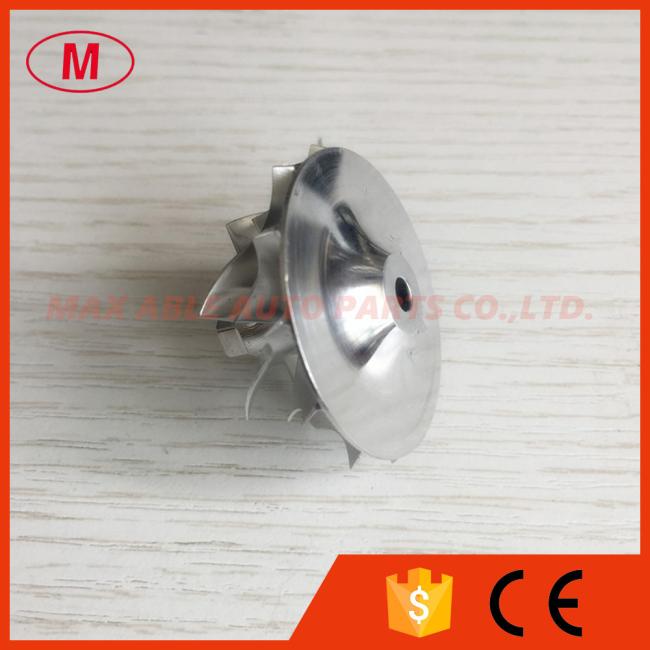

GT1238 704237-0001R 28.50/38.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:GT1238 forward
2.GT1238 28.50/38.00mm 6+6 blades 704237-0001R Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:8.17mm
Inducer:28.50mm
exducer:38.00mm
Tapered tip exducer:40.53mm
Tip height:3.19mm
Superback:3.90mm
Bore size:4.08mm
Overall height:25.60mm
Trailing Angle:60 degree
Bore type:Threaded-M4x0.7LHT
Cutback:2.5mm
Tapered tip Angle:30 degree
Blade height:16.14mm
Splitter height:10.80mm
SP height angle:-0.80
6+6 blades forward
It is for OE compressor housing

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
