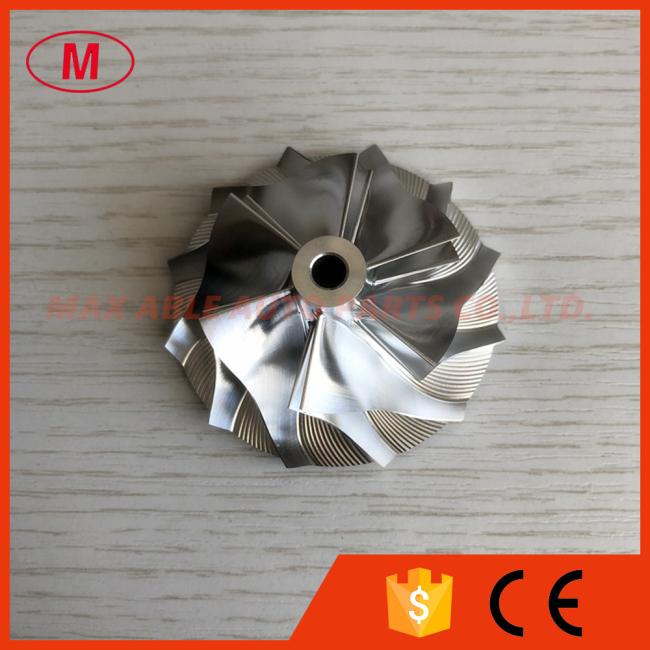

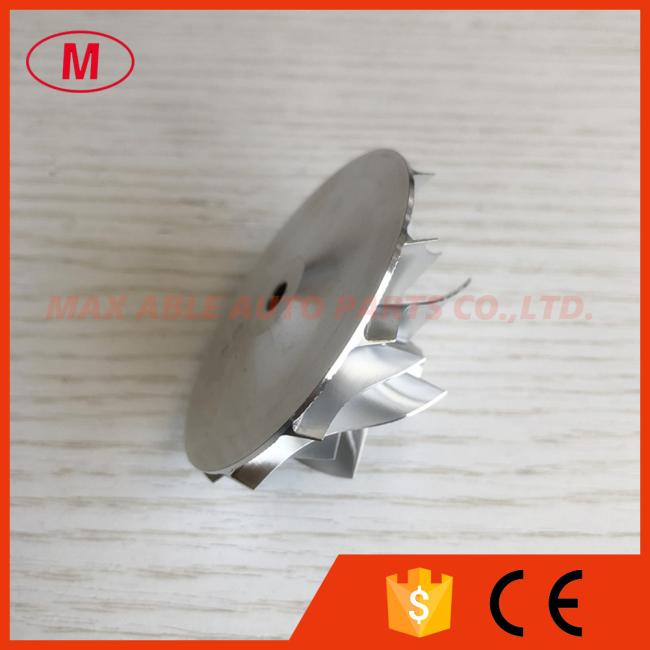

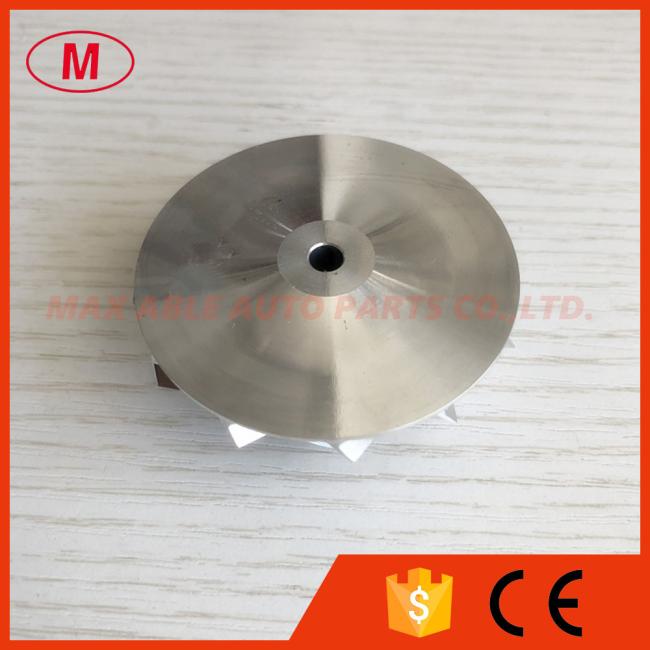

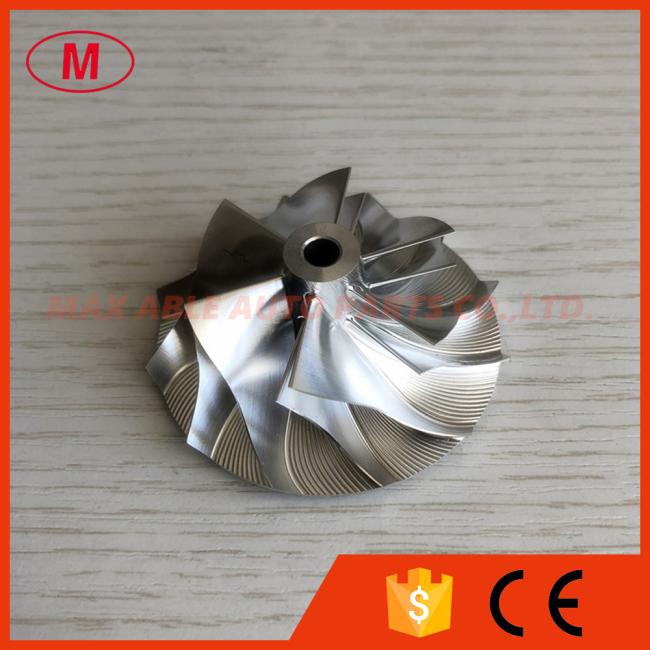

TD04HL 13T 40.61/56.02mm 49377-04200 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

1.Model:TD04HL 13T 40.61/56.02mm 49377-04200 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
2.turbo Part no.:49377-04200 6+6 blades

3.SIZE:

Nose diameter:10.91mm

Inducer:40.61mm

Exducer:56.02mm

Tapered tip exducer:58.45mm

Tip height:4.74mm

Superback:1.83mm

Overall height:25.71mm

bore size :5.00mm

bore type:through

Trailing angle:50 degree

Cutback:0.0

Sp height angle:-1.00

Splitter height:14.70mm

Blades height:20.06mm

6+6 blades

Forward

Tapered tip angle:18 degree

It is for OE compressor housing.

4.Good quality and competitive price

5.Billet compressor wheel

6.Please send email to me or talk to me on online ,if you want to know more details.
