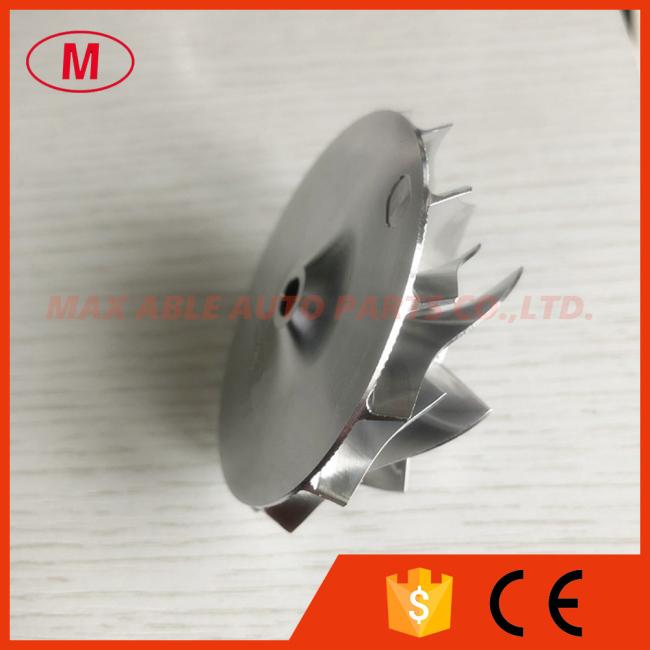

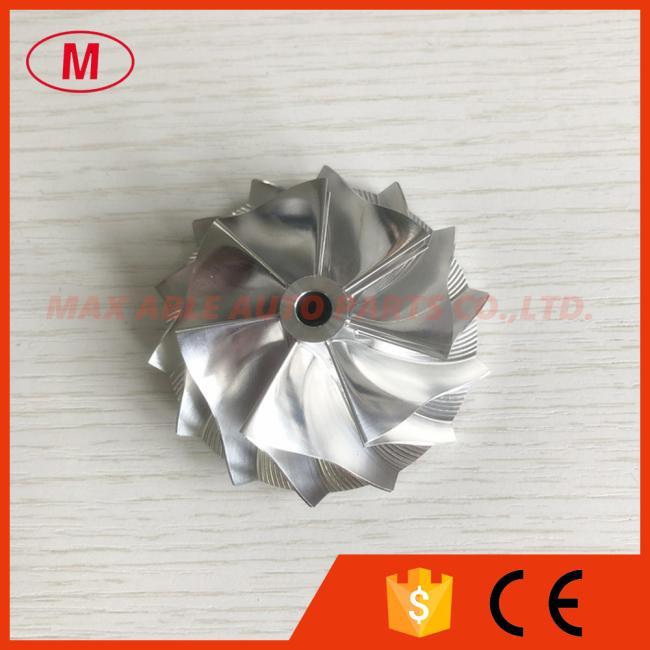

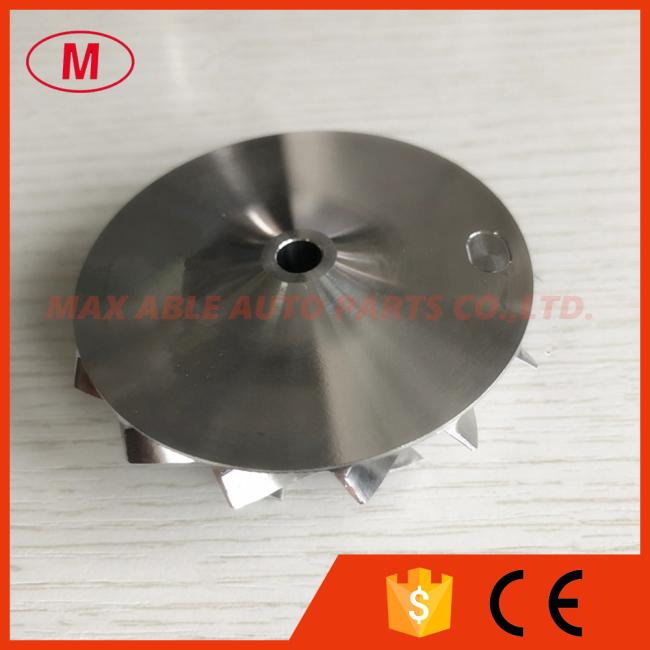

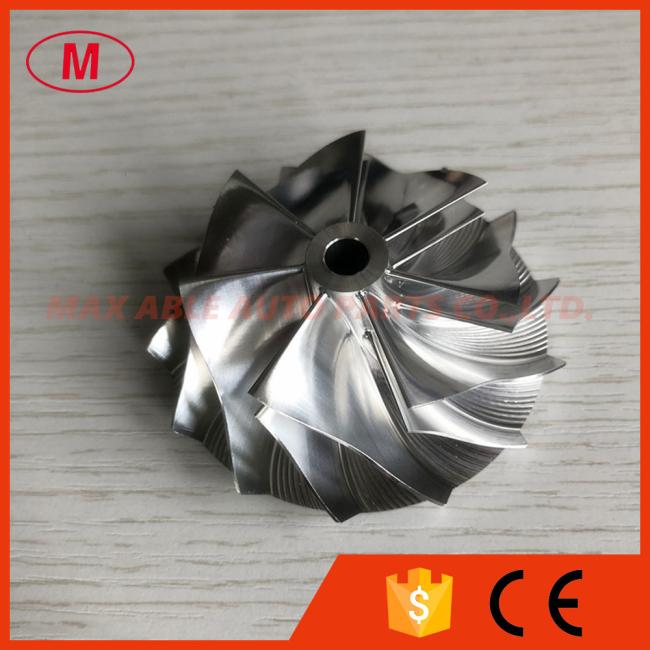

T25 7+7 blades 46.52/60.13mm 445436-0001 high performance milling/aluminum 2618/billet compressor wheel for ISUZU

1.Model:T25 forward
2.T25 7+7 blades 46.52/60.13mm 445436-0001 high performance billet/milling/aluminum 2618 compressor wheel for ISUZU 465949-0001/465997-0001/466261-0001/466543-0001/468397-0003/471024-0003/471104-0001/472547-0001/700716-0004

3.SIZE:

Nose diameter:11.36mm

inducer:46.52mm

Exducer:60.13mm

Tapered tip exducer:65.00mm

Tip height:5.22mm

Superback:2.30mm

Overall height:24.50mm

bore size :5.99mm

bore type:through

Trailing angle :60 degree

Cutback:0.00mm

SP height angle:-6.00

Splitter height:13.75mm

Blade height:21.21mm

7+7 blades

Forward rotation

Tapered tip angle: 30 degree

It is custom size ,but It is for OE compressor housing

4.Good quality and competitive price

5.please email to me or talk to me on online ,if you want to know more details.

All the compressor wheel have been balanced.

We can produce as your requirement.
