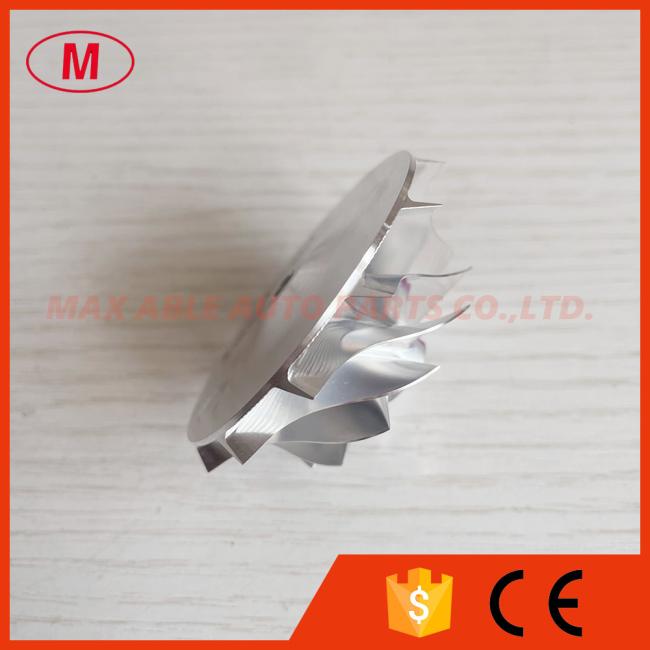

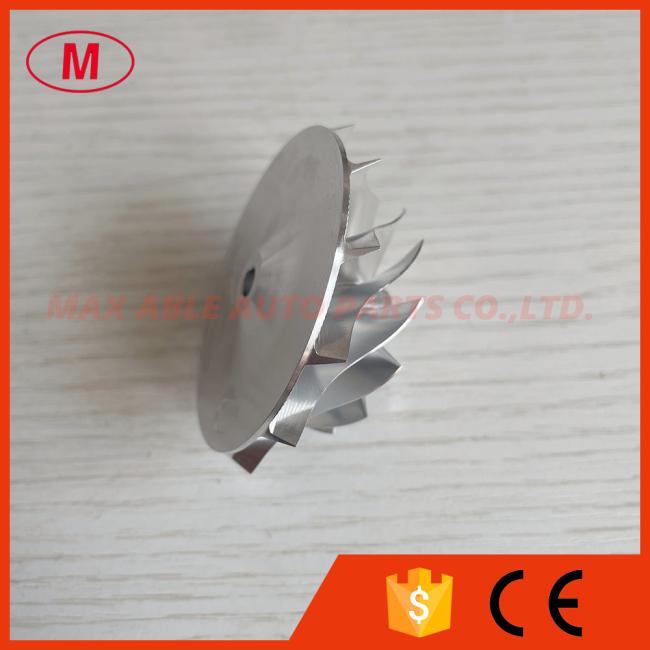

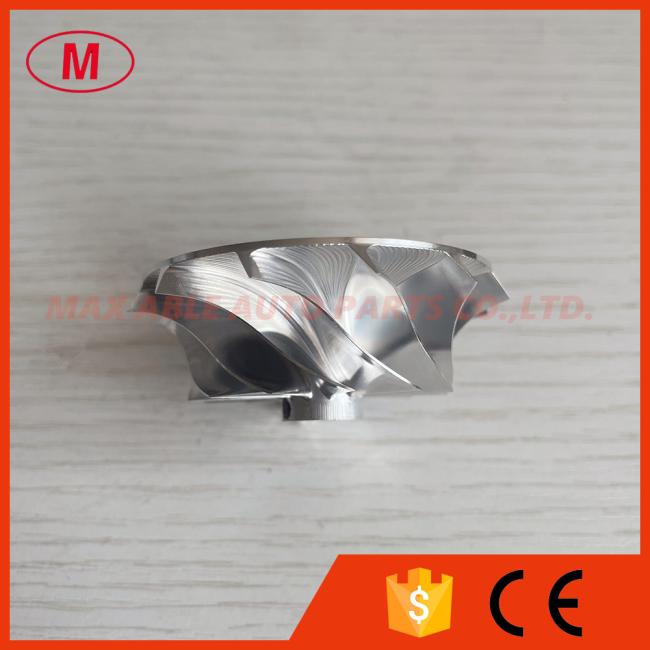

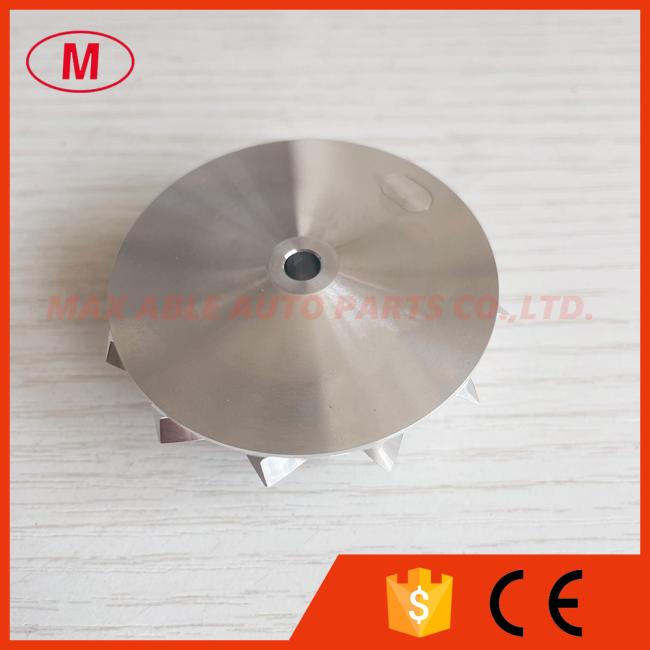

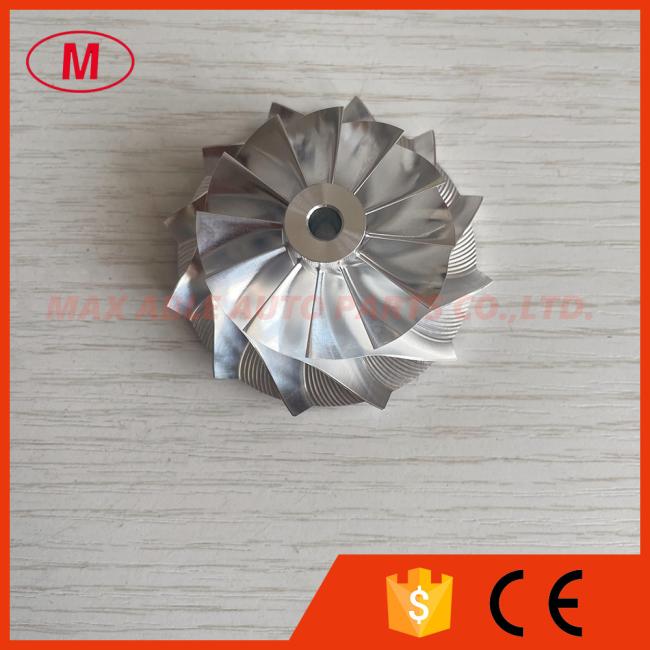

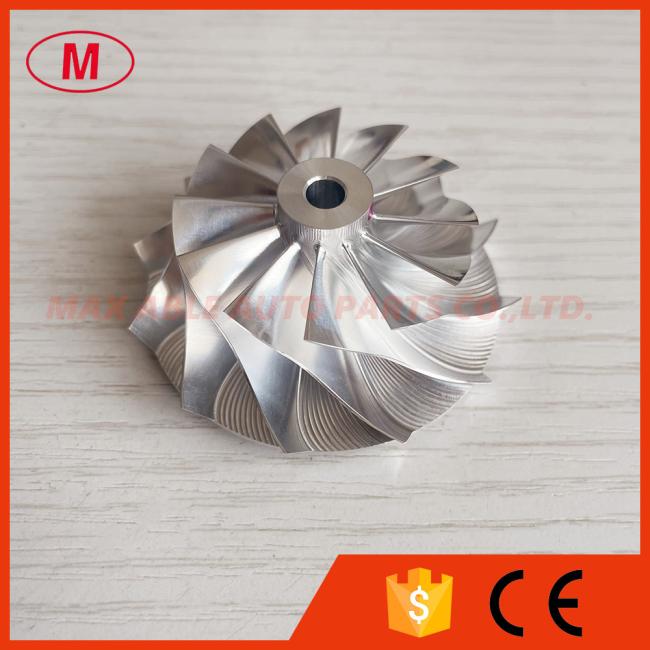

TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades turbo milling/aluminum 2618/Billet compressor wheel

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: NO
Product Description

1. TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades turbo milling/aluminum 2618/Billet compressor wheel for 49189-01000 VOLVO B230FT

2.Size:

Nose diameter:12.20mm

Inducer :40.00mm

Exducer:53.00mm

Tapered tip exducer:57.56mm

Tip height:4.95mm

superback:1.90mm

Overall height:23.40mm

bore size:5.00mm

bore type:through

Trailing angle:60 degree

Cutback:0.0mm

SP height angle:0.00

Splitter height:0.00

Blade height:18.07mm

12+0 blades

foward rotation

Tapered tip angle: 18 degree

It is for OE compressor housing

3.High quality and competitive price.



We have more size and we can produce as your requirement .

All the compressor wheels have been balanced.
