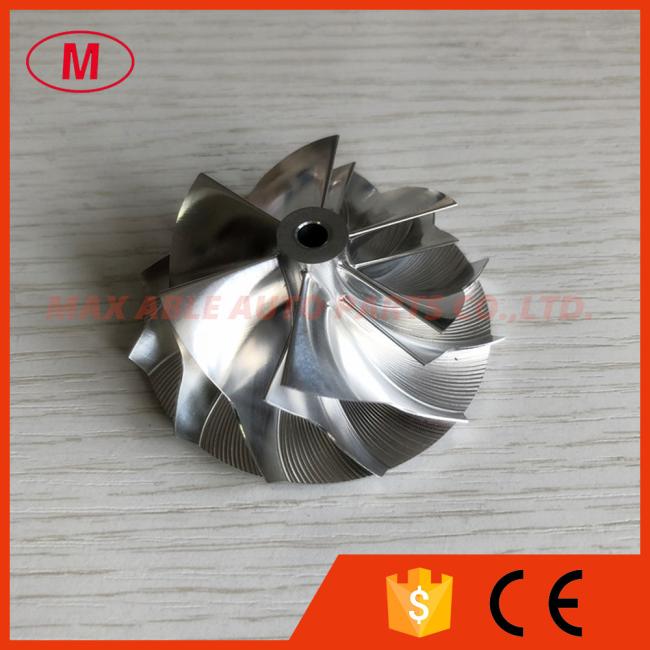

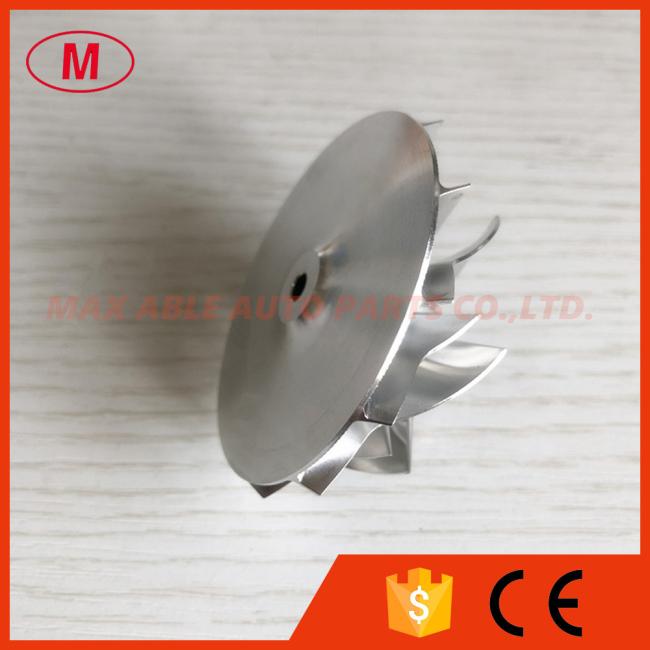

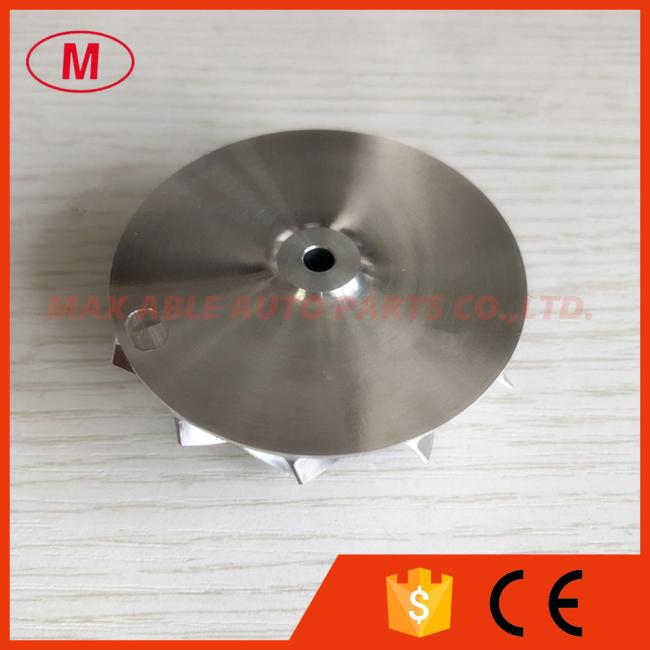

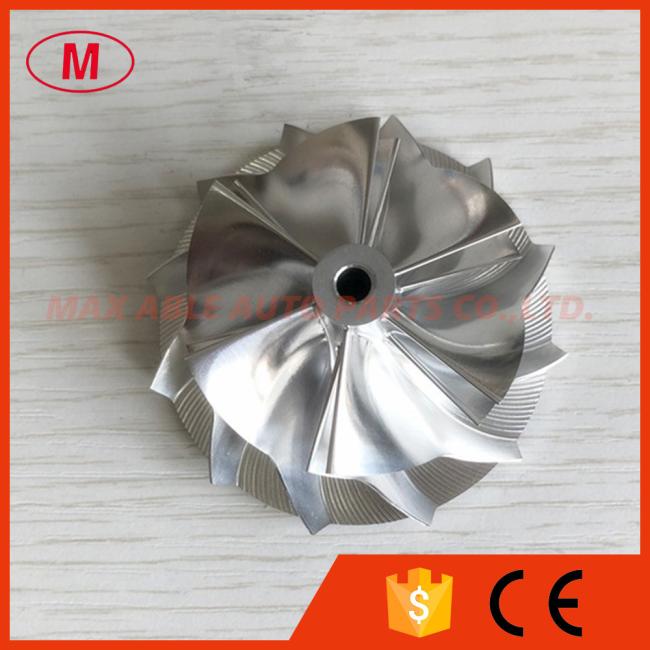

K04 6+6 blades 48.50/61.00mm high performance milling/aluminum 2618/billet compressor wheel

1.Model:K04 forward
2.K04 6+6 blades 48.50/61.00mm high performance billet/milling/aluminum 2618 compressor wheel

3.SIZE:

Nose diameter:10.94mm

inducer:48.50mm

Exducer:61.00mm

Tapered tip exducer:64.99mm

Tip height:4.45mm

Superback:1.80mm

Overall height:25.75mm

bore size :4.61mm

bore type:through

Trailing angle :60

blade height:21.55mm

Cutback:2.00mm

Splitter height:14.55mm

SP height angle:-2.20

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.Good quality and competitive price

5.please email to me or talk to me on online ,if you want to know more details.

All the compressor wheels have been balanced.

We can produce as your requirement.
