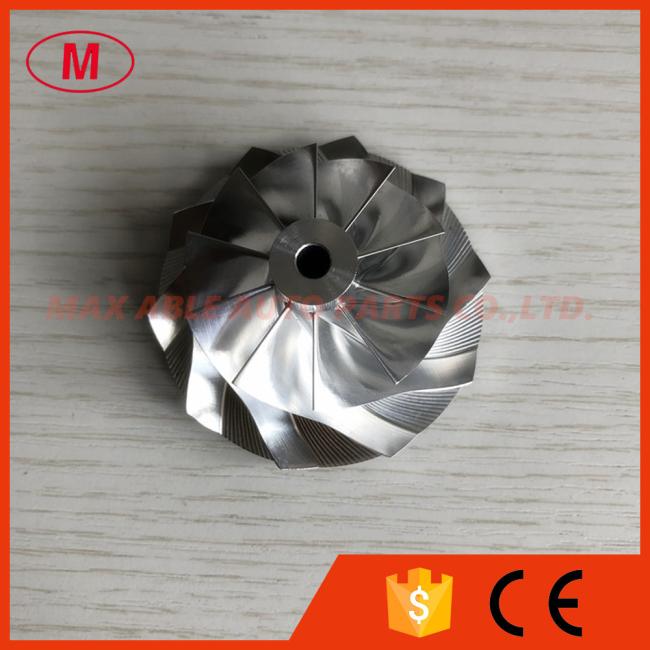

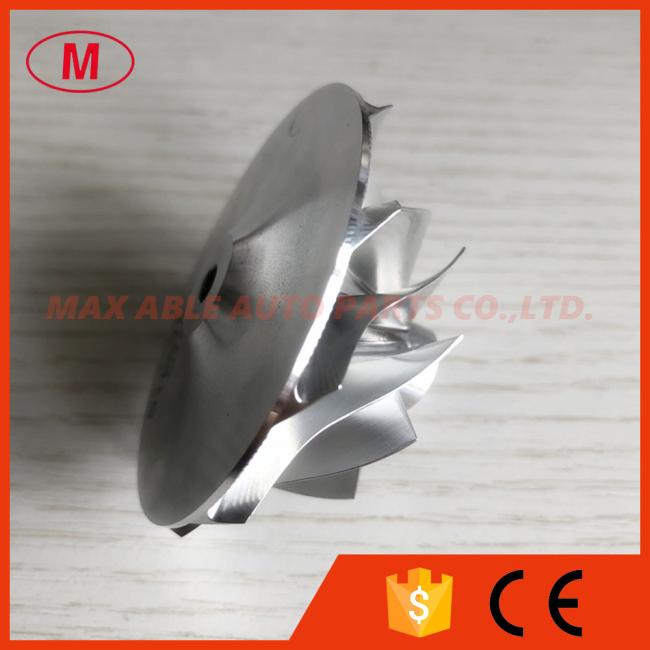

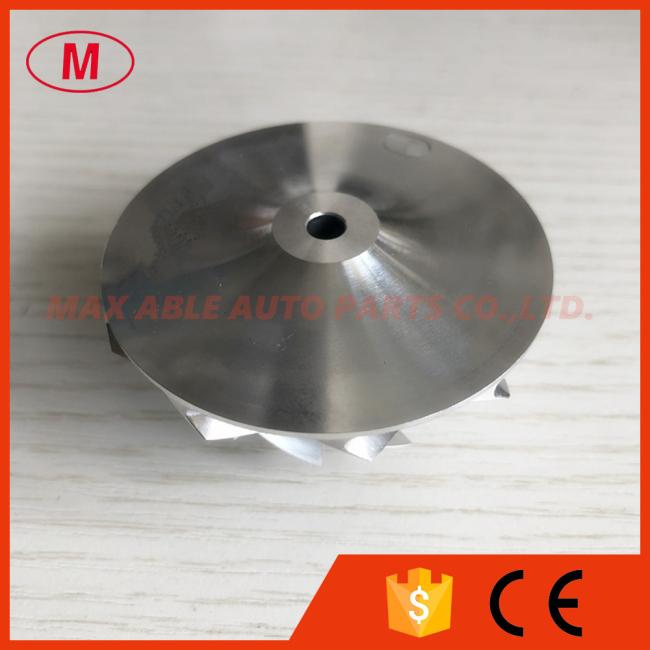

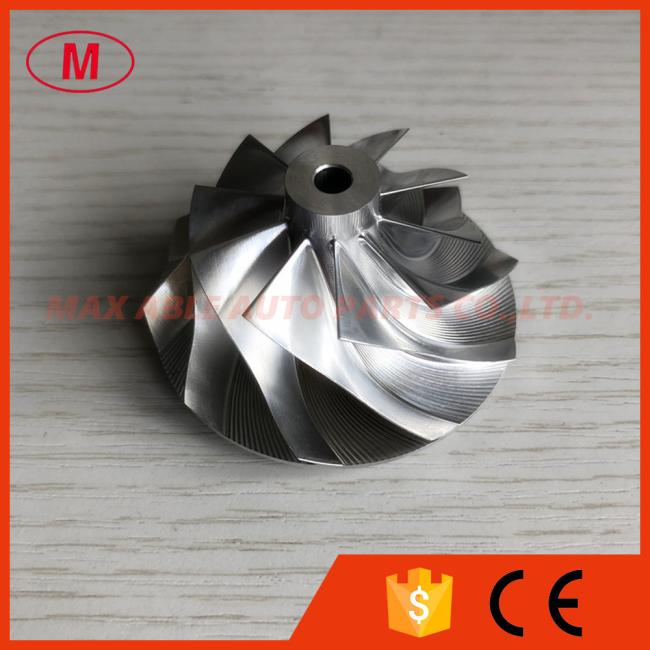

GTD2060VZ 42.84/60.01mm 10+0 blades performance Turbo Aluminum 2618/milling/billet compressor wheel for 839077-5002S

1.GTD2060VZ 42.84/60.01mm 10+0 blades performance Turbo Aluminum 2618 /Billet/milling compressor wheel for

839077-5002S/01/08/09/839077-1011/059145873BP/CH /CL/DB Q7 3.0 TDI 272/ 3.0 V6 TDI

2.Size:

Nose Diameter:13.38mm

Inducer:42.84mm

Exducer:60.01mm

Tapered tip exducer:62.02mm

Tip height:4.86mm

Superback:3.79mm

Overall height:32.40mm

Bore size:5.08mm

bore type:through

Trailing angle:35 degree

Cutback:6.5mm

SP height angle:0.00

Blade height:23.10mm

Splitter height:0.00

10+0 blades

forward rotation

Tapered tip angle:14.6 degree

It is for OE compressor housing

3.If you want more details, please send email to me.We can do all we can to satisfy your needs.

4.High quality and competitive price and good service.

5.We can produce as your requirement.
