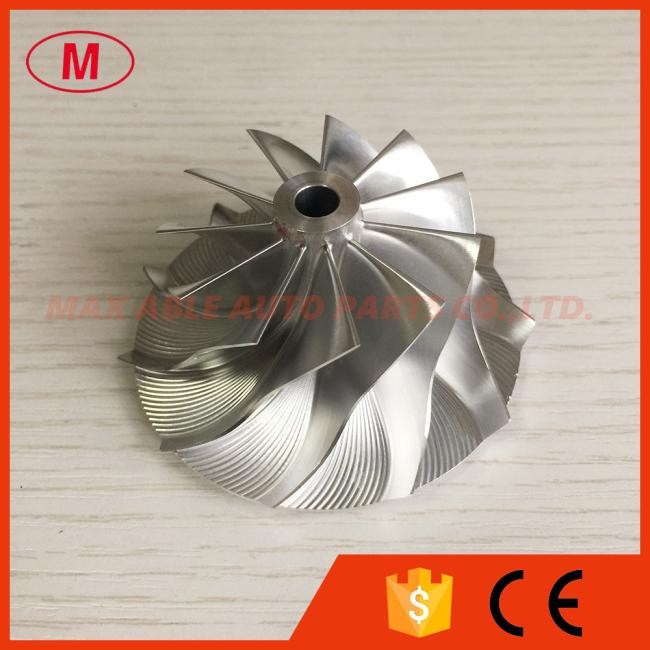

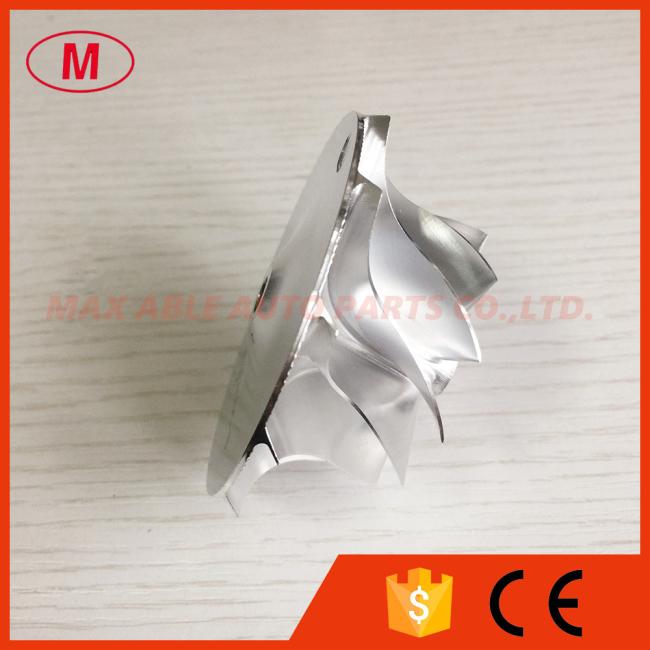

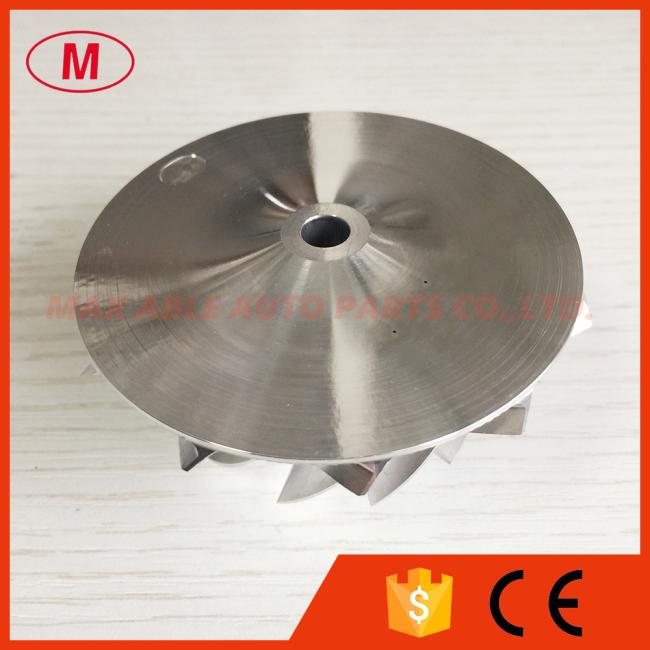

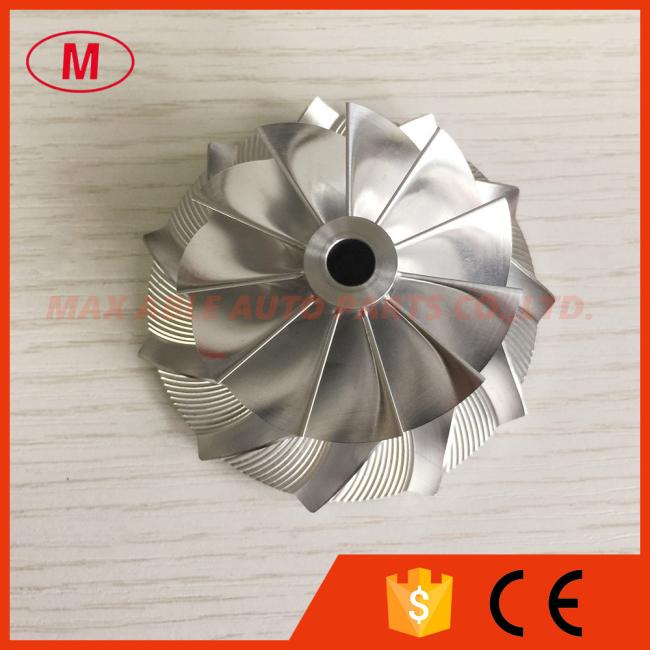

TD05H 16G reverse 48.30/68.01mm 11+0 blades 49178-01560 performance Turbo milling/Aluminum 2618/billet compressor wheel

1. MODEL:TD05H 16G reverse

2.TD05H 16G reverse 48.30/68.01mm 11+0 blades high performance Turbo Billet/milling/Aluminum 2618 compressor wheel for 49178-01500, 49178-01510, 49178-01520, 49178-01540, 49178-01550, 49178-01560, 49178-01570, 49178-01580, 49378-01510, 49378-01520, 49378-01530, 49378-01540, 49378-01550, 49378-01560, 49378-01580, 49378-01581

3.Size:

Nose diameter:12.80mm

inducer:48.30mm

Inducer:68.01mm

Tapered tip exducer:72.18mm

Tip height:4.61mm

Superback:2.90mm

Overall height:35.00mm

bore size :6.50mm

bore type:through

Trailing Angle:45 degree

Cutback:0.0

Sp height Angle:0.00

Splitter height:0.00mm

Blade height:28.90mm

11+0 blades

reverse

Tapered tip angle:30 degree

It is fit for OE Compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
