GT3794 11+0 blades 67.77/94.00mm Turbo milling/aluminum 2618/billet compressor wheel for CHEVY 6.6L

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:GT3794 forward

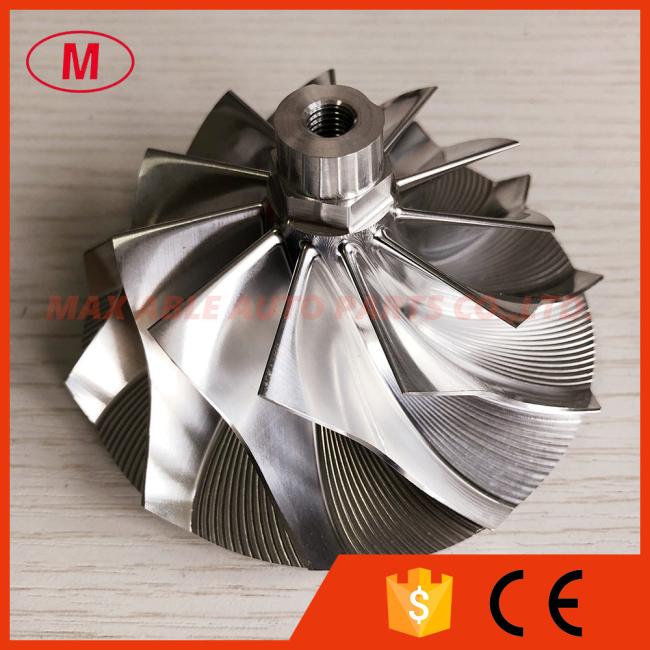

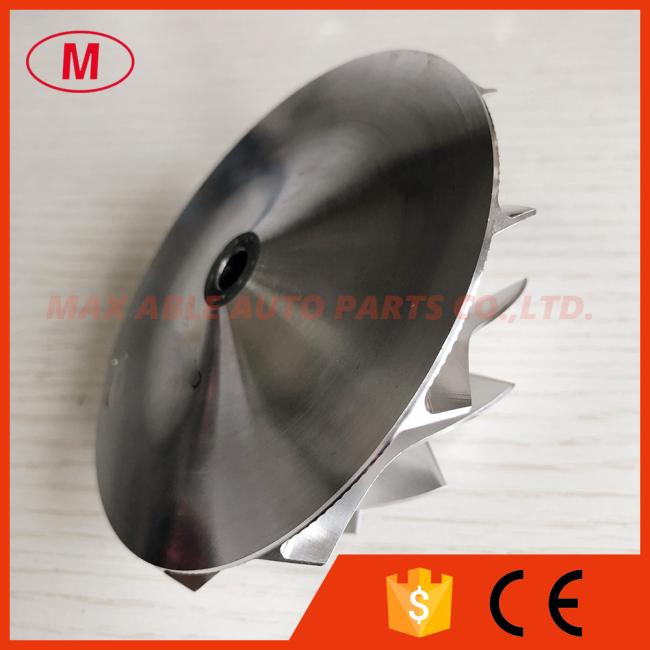

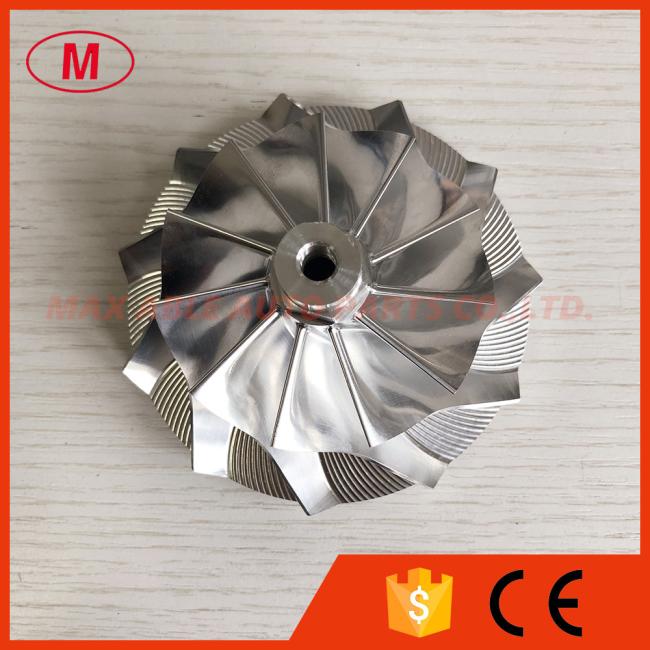

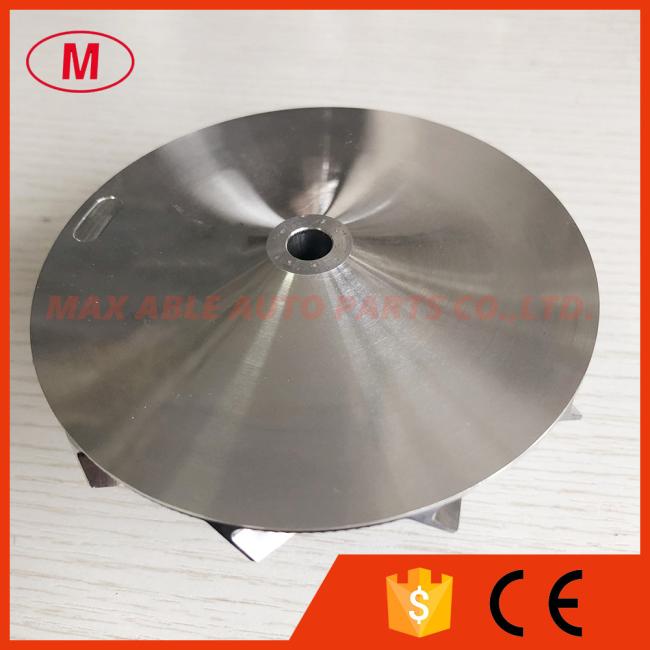

2.GT3794 67.77/94.00mm 11+0 blades Turbo Billet/milling/aluminum 2618 compressor wheel for CHEVY 6.6L PowerMax turbo
Stage 1: 773540-5001s AVNT™
Stage 2: 773542-5001s AVNT™
3.Size:
Nose diameter:19.40mm
Inducer:67.77mm
exducer:94.00mm
Tapered tip exducer:97.91mm
Tip height:7.06mm
Superback:5.55mm
bore size :7.48mm
Overall height:53.50mm
Cutback:6.1
Trailing Angle:45
Sp height angle:0.00
Splitter height:0.00mm
Blade height:32.43mm
Bore type:Threaded-M7x1.0LHT
11+0 blades forward
Fit for OE compressor housing
Tapered tip Angle:18 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
