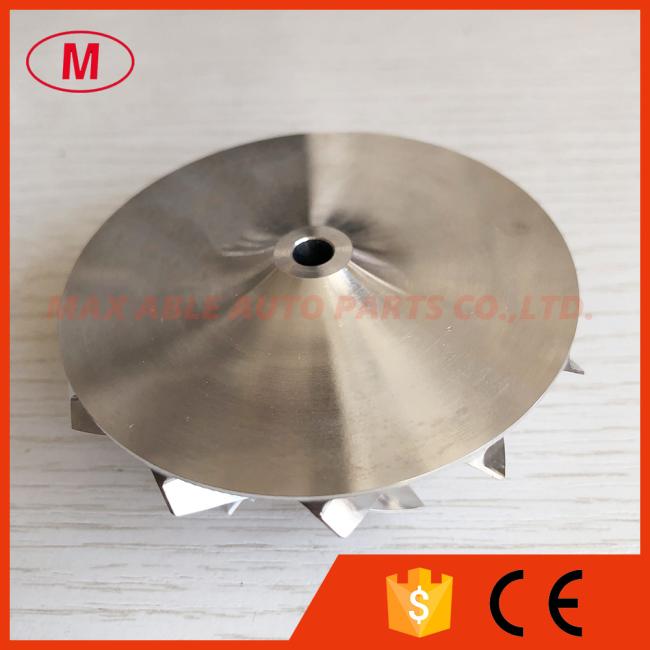

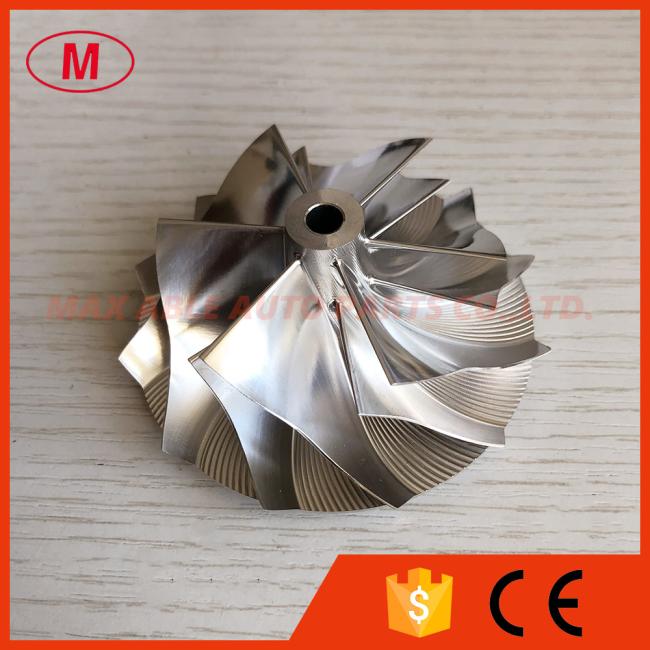

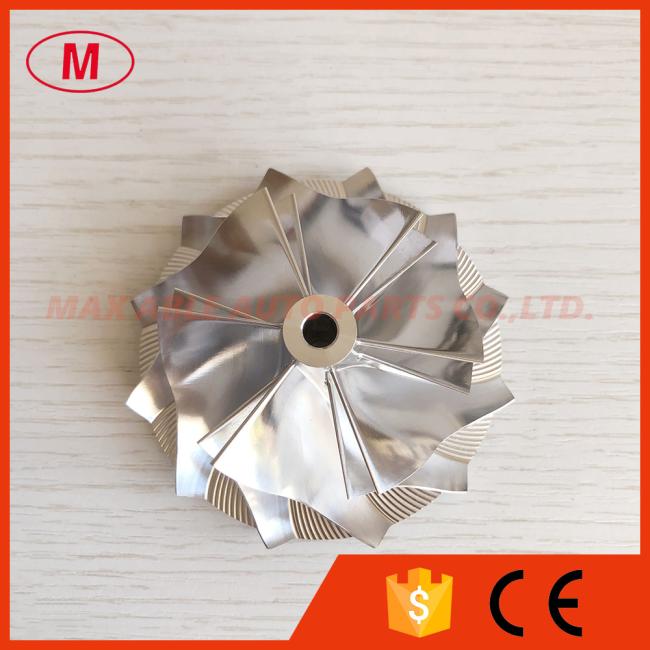

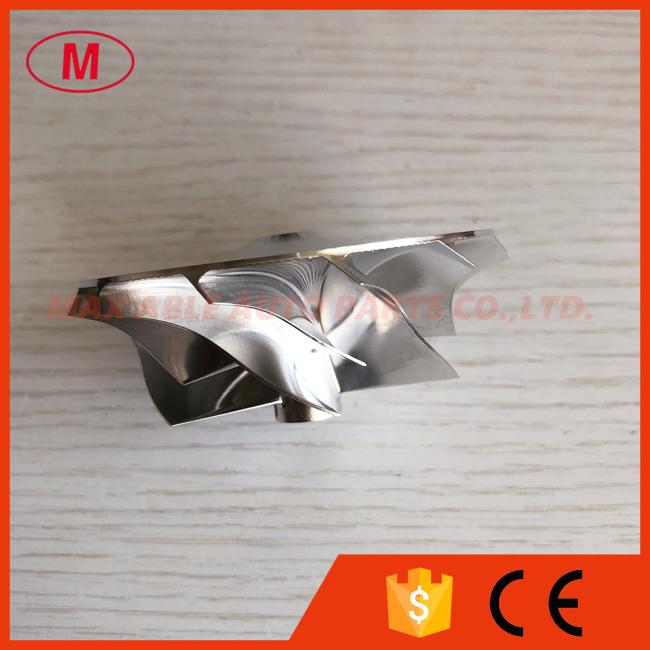

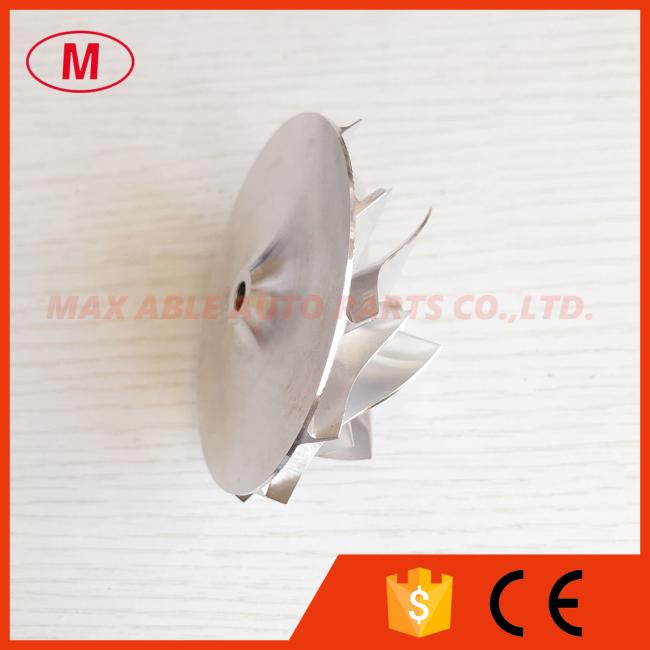

B03G 54.87/70.98mm 6+6 blades high performance turbo milling/aluminum 2618/billet Compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Product Description

1. MODEL:B03G forward

2. B03G 54.87/70.98mm 6+6 blades high performance turbocharger billet/milling/aluminum 2618 Compressor wheel

Size:

Nose diameter:12.30mm

inducer:54.87mm

Exducer:70.98mm

Tapered tip exducer:75.77mm

Tip height:5.15mm

Superback:3.79mm

Overall height:32.40mm

Bore size:5.61mm

Bore type:through

Trailing angle:60 degree

Cutback:3.5mm

SP height angle:0.00

Blade height:25.04mm

Splitter height:16.40mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

3.High quality and competitive price.

4.Any questions please send email to me,we have many size.

All the compressor wheels have been balanced.

skype : maxabledieselparts
wechat/whatsapp:+86-18018657719
