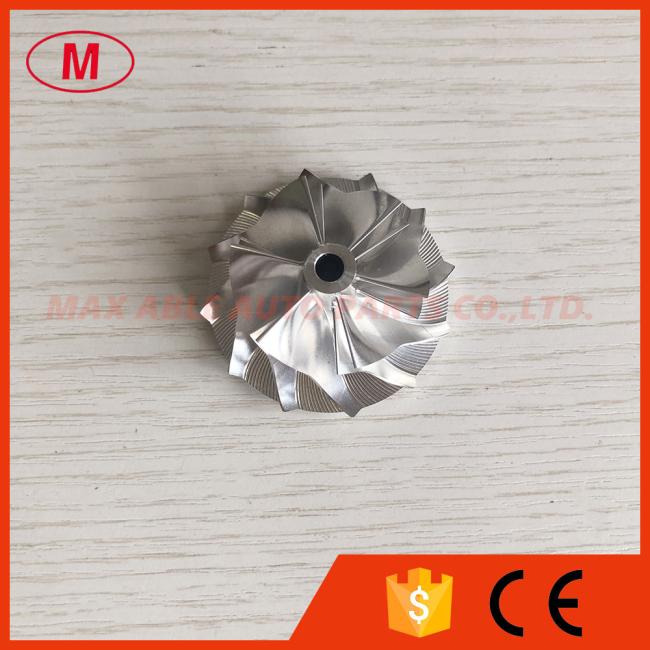

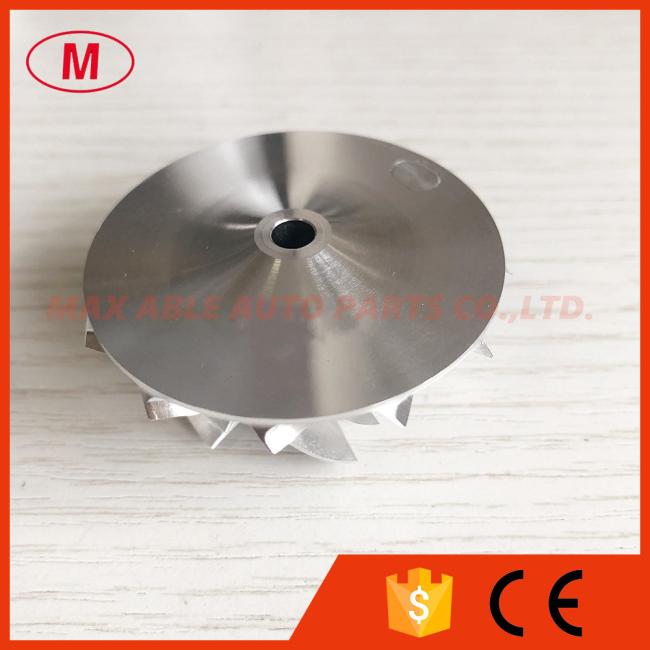

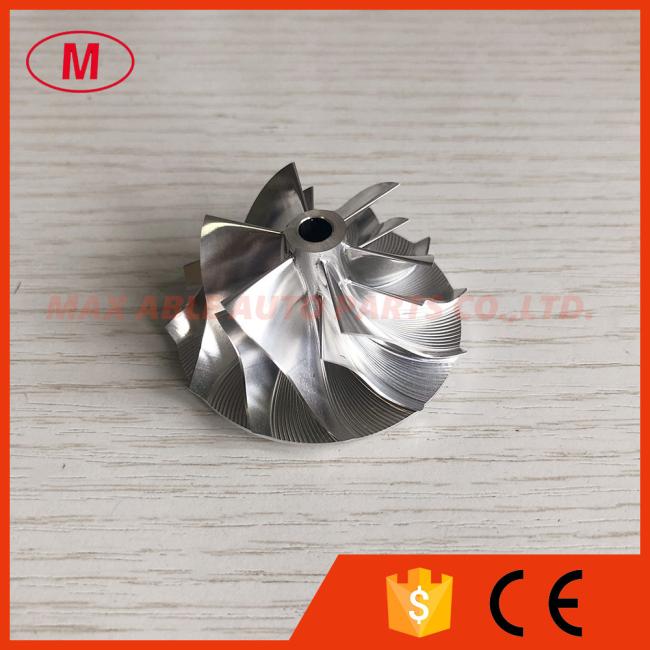

GT15-25 36.39/49.00mm 6+6 blades 702489-0005C performance turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:GT15-25 forward

2.GT15-25 36.39/49.00mm 6+6 blades 702489-0005C high performance turbo billet/milling/aluminum 2618 compressor wheel for 717382-0002/717478-0004/0005/0006/7214021-0003/0004/0005/0006/724495-0002/0003/729853-0001/750431-0004/0006/0007/0009/0010/0012/0015/753556-0002/0006/753847-0002/0006/756047-0002/0004/0005/760698-0002/0003/0004/760774-0002/0003/765993-0004

3.Size:

Nose diameter:9.57mm

inducer:36.39mm

Exduder:49.00mm

Tapered tip exducer:52.00mm

Tip height:3.60mm

Superback:2.40mm

Overall height:24.89mm

bore size :5.08mm

bore type:through

Trailing Angle:55 degree

Cutback:0.00

Blade height:20.30mm

SP height angle:-6.70

Splitter height:14.40mm

Tapered Tip Angle:30 degree

6+6 blades

Forward rotation

Fit for OE compressor housing

Application:

717382-0002

717478-0004/0005/0006

7214021-0003/0004/0005/0006

724495-0002/0003

729853-0001/750431-0004/0006/0007/0009/0010/0012/0015

753556-0002/0006

753847-0002/0006

756047-0002/0004/0005

760698-0002/0003/0004

760774-0002/0003

765993-0004

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
