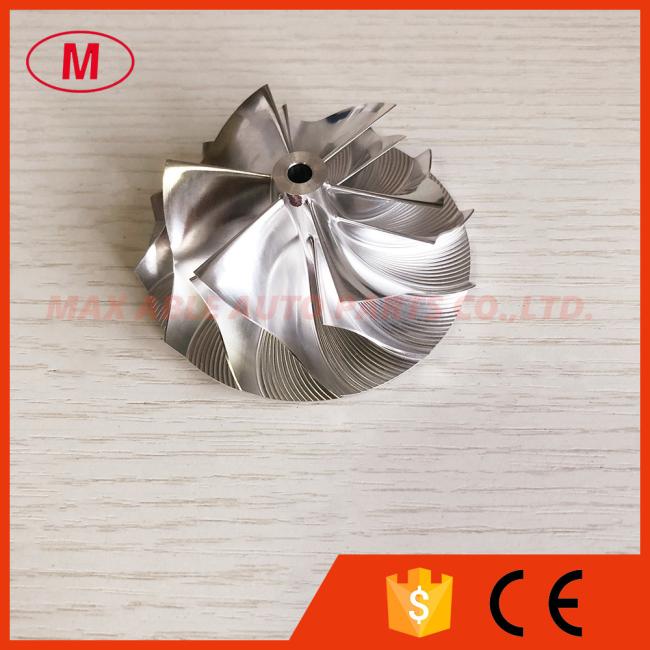

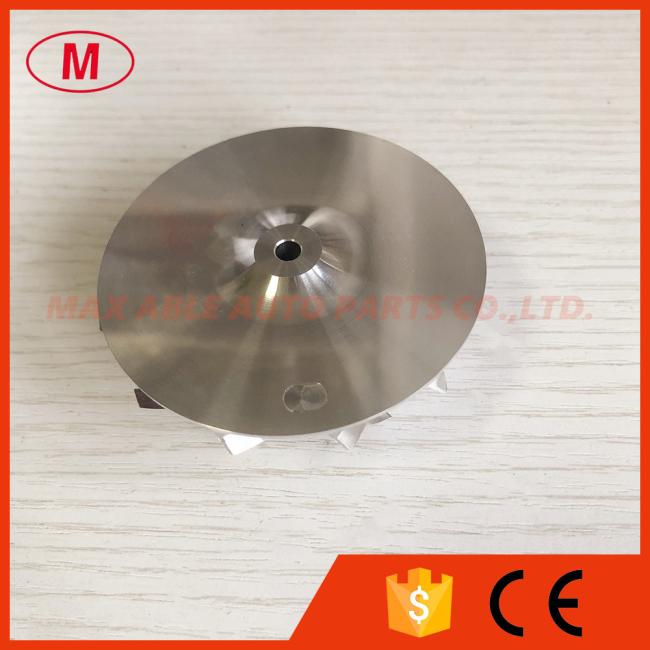

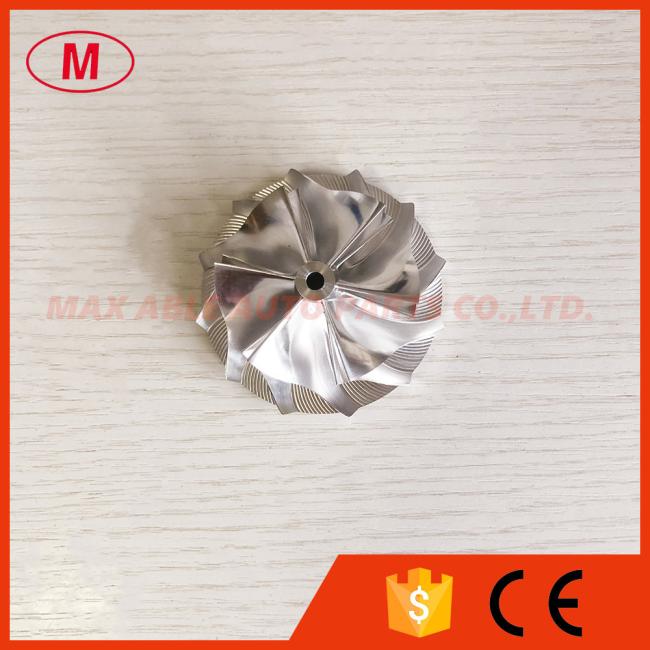

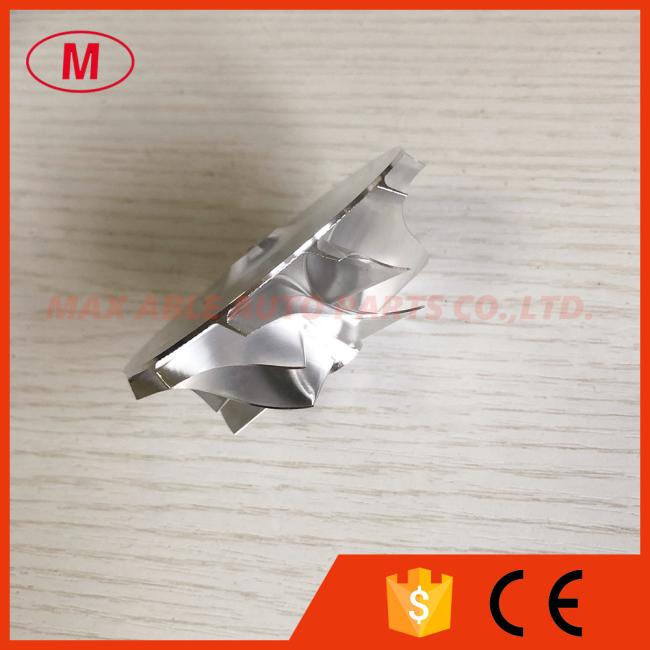

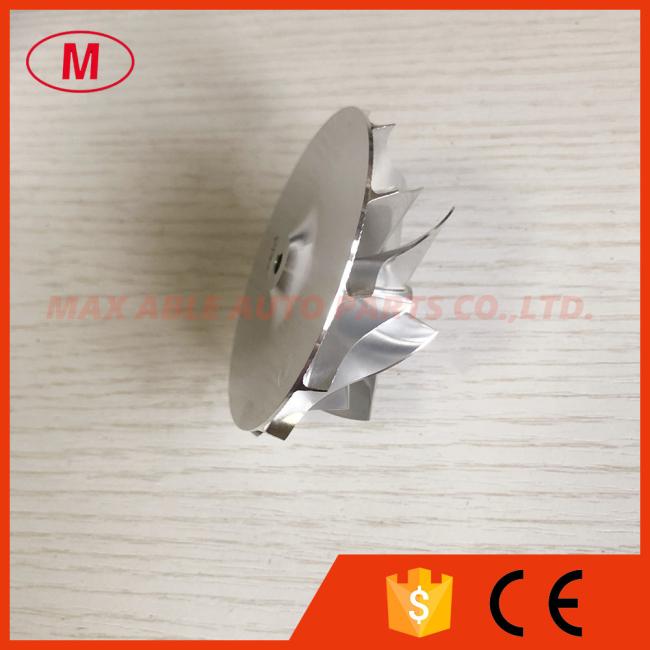

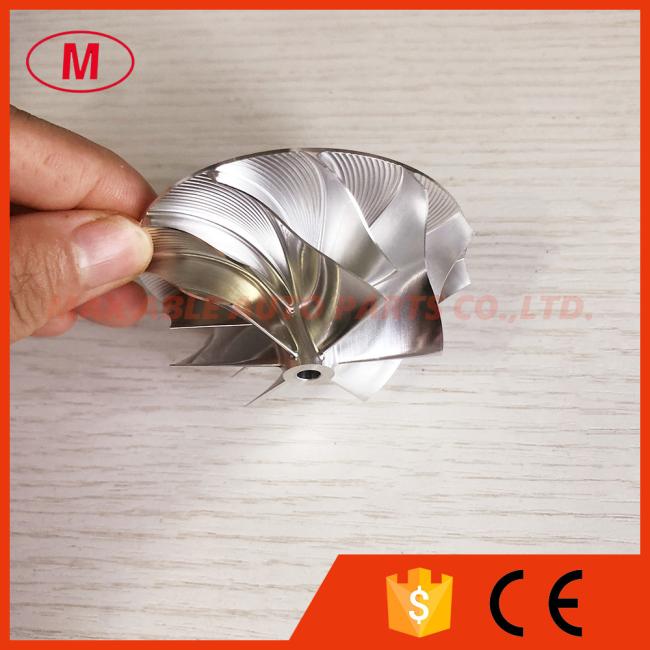

K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description





1. MODEL:K04 forward
2.K04 54.00/70.00mm 6+6 blades turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.20mm
Inducer:54.00mm
exducer:70.00mm
Tapered tip exducer:73.00mm
Tip height:5.50mm
Superback:2.67mm
bore size :4.61mm
Bore type:through
Overall height:29.82mm
Cutback:3.0
Trailing Angle:60 degree
SP height angle:-5.30
Blade height:25.08mm
Splitter height:17.50mm
6+6 blades forward
It is custom size ,please check carefully before buying.
Tapered tip Angle:18.4 degree

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
