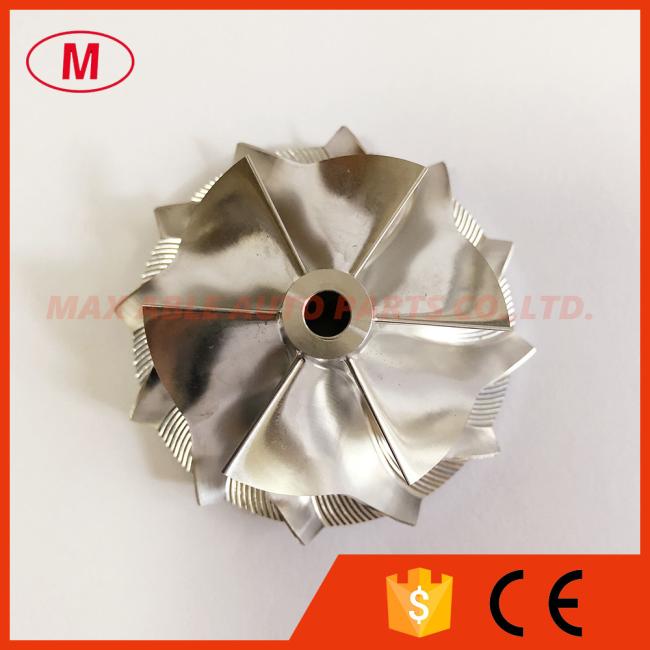

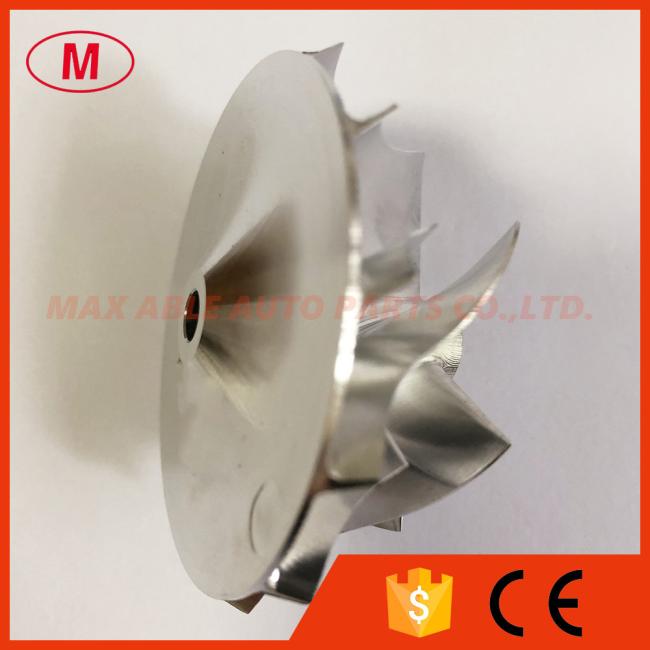

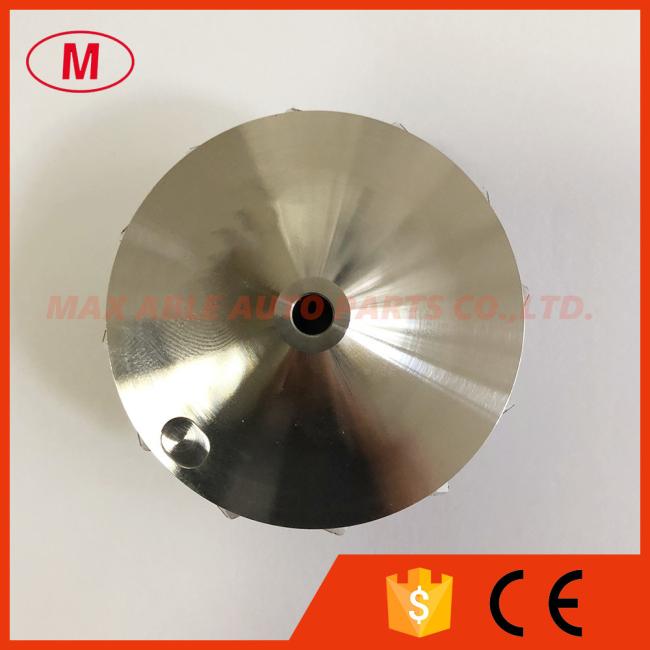

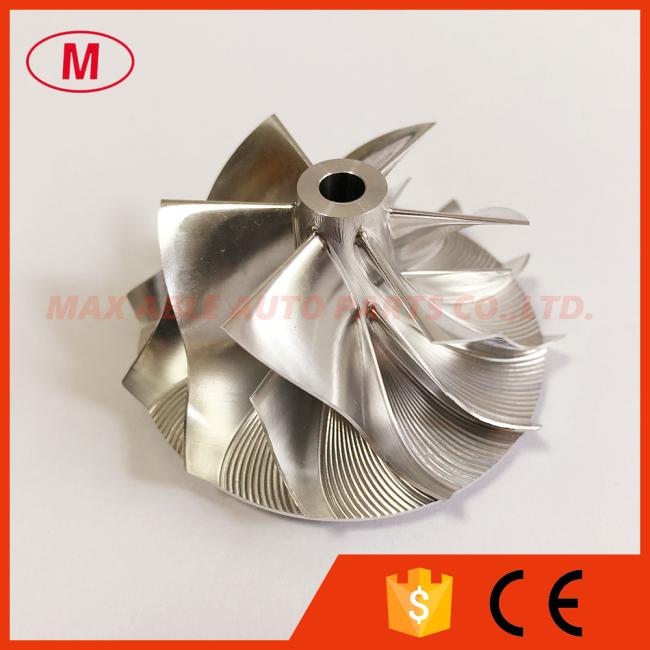

RHF5 41.90/54.00mm 6+6 blades high performance turbo aluminum 2618/Milling/billet compressor wheel

1. MODEL:RHF5 Forward

2.RHF5 41.90/54.00mm 6+6 blades high performance turbo aluminum 2618/Milling/billet compressor wheel
3.Size:

Nose diameter:10.00mm

Inducer:41.90mm

exducer:54.00mm

Tapered tip exducer:57.91mm

Tip height :4.39mm

superback:3.85mm

Overall height:29.60mm

Bore size:5.11mm

bore type:through

Trailing Angle:60

Cutback:3.0

SP height angle:0.00

Blades height:23.00mm

Splitter height:12.15mm

Tapered tip angle:30 degree

6+6 blades

Forward rotation

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.

All the compressor wheels have been balanced.

We can produce as your requirement.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
